Grandstream GCC6010W Oman



Grandstream GCC6010W Oman

Introducing the Grandstream GCC6010W Oman, a revolutionary all-in-one solution that transcends traditional communication boundaries, seamlessly integrating unified communications and networking functionalities onto a single, powerful platform.

Description

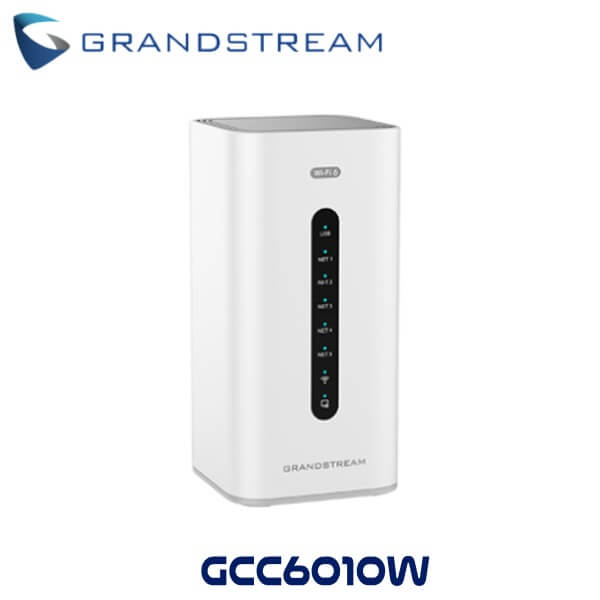

Grandstream GCC6010W All-in-One Solution Oman

Introducing the Grandstream GCC6010W Oman, a revolutionary all-in-one solution that transcends traditional communication boundaries, seamlessly integrating unified communications and networking functionalities onto a single, powerful platform. This cutting-edge device amalgamates the capabilities of four essential products – serving as a VPN router, next-generation firewall, IP PBX, and either a network switch or Wi-Fi access point – into one cohesive unit.

Crafted as part of the GCC Series, these state-of-the-art devices empower users to effortlessly establish and oversee wired, wireless, and VPN networks, bolstered by enterprise-grade security measures. Furthermore, they boast a market-leading communication and collaboration platform, ensuring a comprehensive solution for modern business needs.

With its inherent flexibility, the Grandstream GCC6010W Oman enables unified management and centralized control over all Grandstream endpoint solutions, spanning Wi-Fi APs, network switches, IP Phones, and beyond. Rapid deployment is facilitated through cloud-based management via the Grandstream Device Management System (GDMS), complemented by alternative management options such as mobile app access, local Web UI, and CLI console management.

Tailored to cater to the requirements of small-to-medium sized businesses, this all-in-one platform streamlines operations by consolidating essential functions including data management, security, communication, and collaboration into a singular device. This not only simplifies the setup process but also renders it more cost-effective, offering an accessible pathway to building cutting-edge communication solutions.

Features and Benefits

VPN Router

Secure Multi-WAN and Networking

  • Dynamic routing and Multi-WAN capabilities
  • NAT, VLAN, performance-based WAN link selection and monitoring
  • Load balancing, WAN link failover
  • Hardware and firewall acceleration
  • DHCP server, DNS server, IGMP proxy, TURN server
  • IPv4/IPv6 support

Firewall

  • Filter by source destination, protocol, and port
  • Stateful packet inspection
  • DoS attack protection (UDP/ICMP/SYN flood)
  • Enhanced spoofing defense

Wi-Fi Access Point

  • Up to 500+ concurrent Wi-Fi client devices
  • Dual-band (2.4 GHz and 5 GHz)
  • 802.11 a/b/g/n/ac/ax wireless standards
  • Wireless intrusion detection and prevention
  • Virtual access point
  • Captive portals

IP PBX

  • Supports 12 users and 4 concurrent calls by default, upgrades available for purchase that provide expansion
  • Rich PBX services, including Call Forwarding, Transfer,Parking, Intercom/Paging, IVR, Emergency Calls, etc
  • Built-in audio and video conferencing platform, supports Wave Desktop/Web/Android/iOS
  • Fast provisioning of Grandstream SIP endpoints
  • Supports multiple audio and video encodings, such as Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.15.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 , H.264, H.263, H263+, VP8
  • QoS : FEC/JB/NetEQ/ToS/DSCP
  • Protocols: SIP, TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, SFTP, SSH, HTTPS, RTSP, STUN, SRTP, TLS, LDAP
  • Full API available for third-party platform and application integration
  • Supports Property Management Systems (PMS), call centers, CRM integration, and more.

Specifications

Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
Antennas
  • 3 individual internal antennas ( 2 x dual band + 1 x single band 5G)
  • 2.4GHz: maximum gain 4dBi
  • 5 GHz: maximum gain 6dBi
Channel Bandwidth
  • 2.4G: 20 and 40 MHz
  • 5G: 20, 40, 80, 160 MHz
Wi-Fi and System Security WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control
lockdown via digital signatures, unique security certificate and random default password per devic

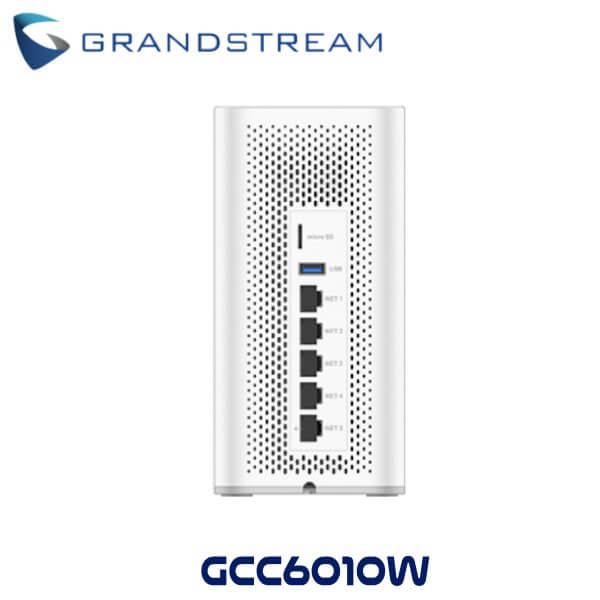

Network Ports 5x Gigabit Ethernet ports
*All ports are WAN/LAN configurable, max 3x WAN
Network Protocols IPv4, IPv6, IEEE802.1q, IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab
Firewall
  • DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT, ALG
  • DPI, Anti-Virus, IPS/IDS, SSL proxy
  • Content Control: DNS filtering, web url/class/key words filtering, application identification and control
VPN
  • IPsec VPN Client-to-Site / Site-to-Site
  • IPSec Encryption: 3DES, AES
  • IPSec Authentication: MD5, SHA-1, SHA2-256
  • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
  • IPSec Protocols: ESP
  • IPSec NAT Traversal
  • PPTP VPN Server / Client
  • PPTP Encrpytion: MPPE 40-bit, 128-bit
  • PPTP/L2TP Authentication: MS-CHAPv1/2
  • L2TP Client-to-Site
  • OpenVPN® Server / Client
  • OpenVPN® Encryption: AES, DES
  • OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
  • OpenVPN® Certificate: RSA
  • WireGuard®
Physical
  • Unit Dimension: 95 x 95 x 193 mm
  • Unit Weight: 565g
  • Entire Package Dimension: 186 x 127 x 105 mm
  • Entire Package Weight: 920g
Package Content GCC6010W, Universal Power Supply, Network Cable, Quick Installation Guide
