Description

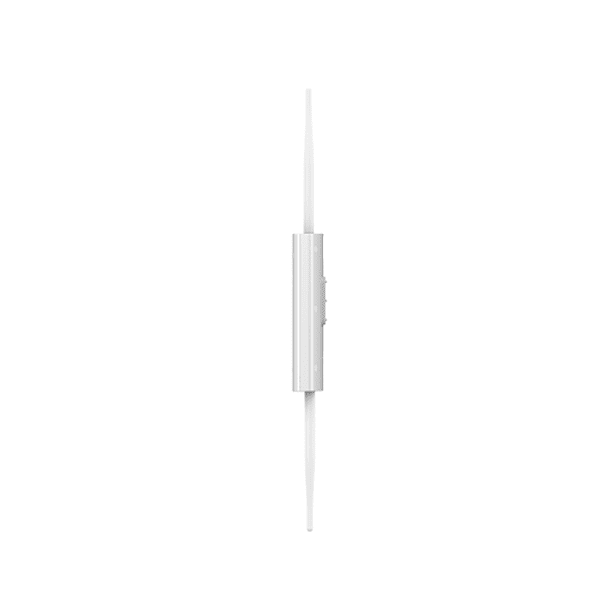

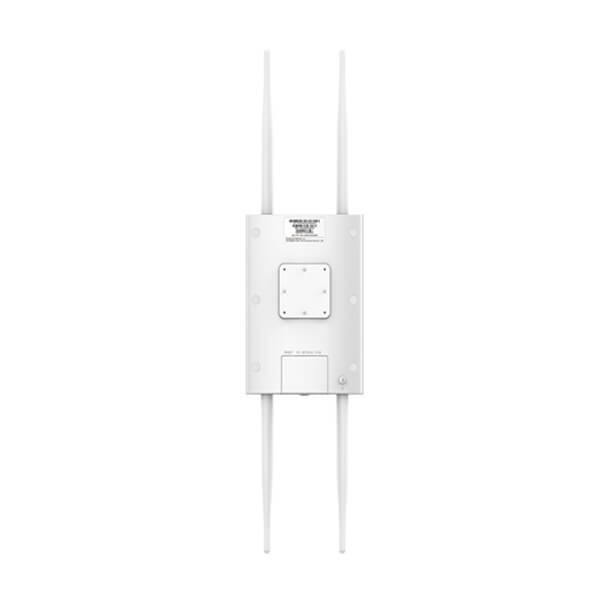

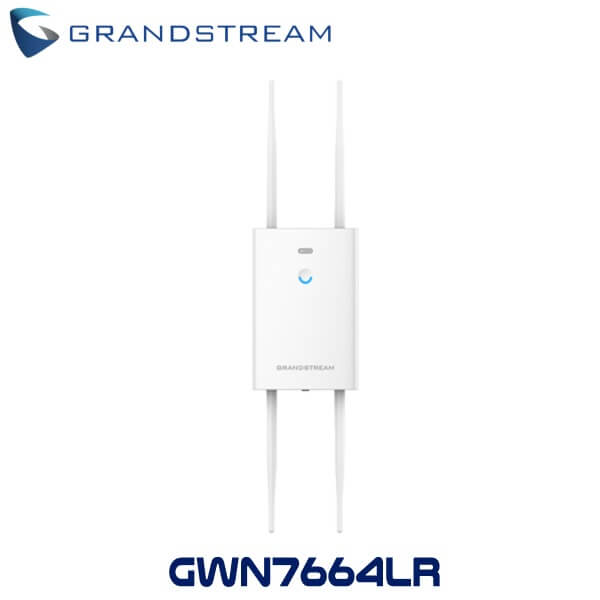

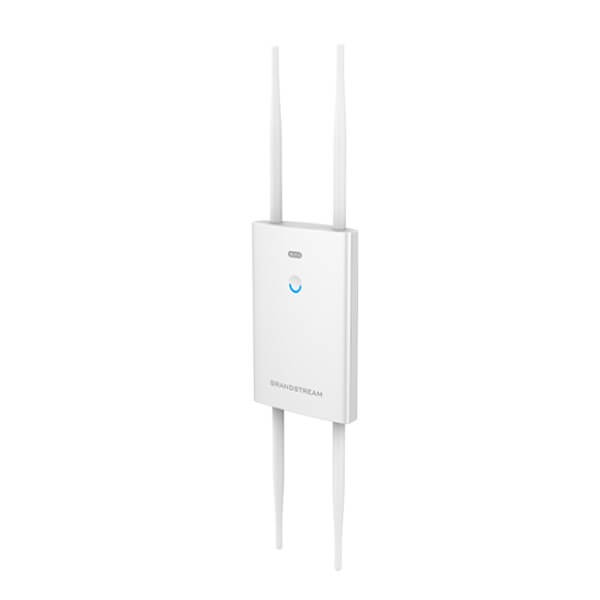

Grandstream GWN7664LR Access Point Oman
The Grandstream GWN7664LR Oman is an outdoor 802.11ax 4×4 :4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4 :4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The Grandstream GWN7664LR Oman is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the Grandstream GWN7664LR Oman is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.
Features
- 3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
- Dual-band 4×4 :4 MU- MIMO with DL/UL OFDMA technology
- Self power adaptation upon auto detection of PoE or PoE+
- Support 750+ concurrent Wi-Fi client devices
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown
- Flexibility of 4 detachable/changeable antennas for different application scenarios
- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
Technical Specs
Manufacturer’s Code | GWN7664LR |
Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax |
Antennas | 4 dual band external antennas; 2.4GHz, gain 3.5dBi, 5 GHz, gain 3.5dBi |
Frequency Bands | 2.4GHz radio : 2412 – 2484 MHz, 5GHz radio : 5180 – 5825 MHz, *Not all frequency bands can be used in all regions |
Wi-Fi Data Rates | 2.4GHz – up to 802.11ax : 1147 Mbps, 5GHz – up to 802.11ax : 2402 Mbps |
Channel Bandwidth | 2.4G : 20 and 40 MHz (x4), 5G : 20, 40 and 80 MHz (x4) |
System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
MU-MIMO | 4×4 :4 2.4GHz, 4×4 :4 5GHz |
Coverage Range | Up to 300 meters *Coverage range can vary based on environment |
Maximum TX Power | 5G : 25dBm, 2.4G : 26dBm |
Receiver Sensitivity Max | 2.4GHz – 99dBm, 5GHz -95dBm |
SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
Concurrent Clients | 750 |
Network Interfaces | 1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout |
Auxiliary Ports | 1x Reset Pinhole |
Mounting | Wall mount or pole mount, kits included |
LEDs | 1 tri-color LEDs for device tracking and status indication |
Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
QoS | 802.11e/WMM, VLAN, TOS |
Network Management | Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption : 18W |
Environmental | Operation :-30°Cto 60°C, Storage : -30°C to 60°C, Humidity : 10% to 90% Non-condensing |
Physical | Unit Dimension : 562.3mm(L)x140mm(W)x44.9mm(H); Unit + Mounting Kits Dimension : 562.3mm(L)x140mm(W)x66.9mm(H); Entire Package Dimension : 260mm(L)x218.5mm(W)x108mm(H); |
Package Content | GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide |
Weatherproof Grade | IP66-level weatherproof capability when installed vertically |
Compliance | FCC, CE, RCM, IC, UKCA |
