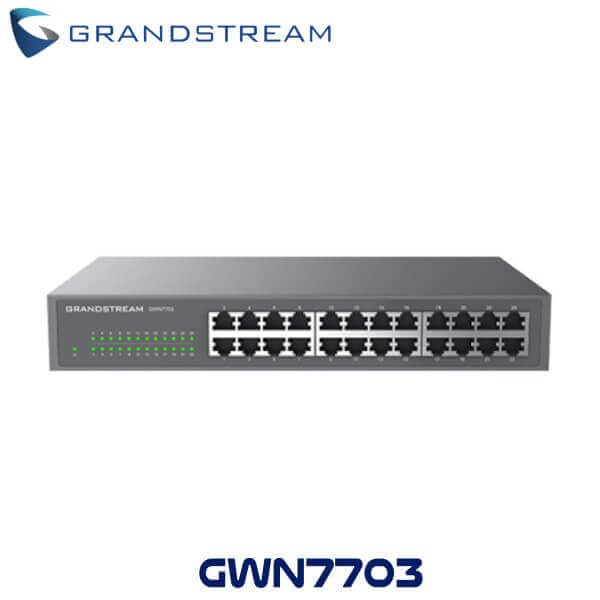

Grandstream GWN7703 Network Switch Oman

Introducing the Grandstream GWN7703 Oman, an array of unmanaged network switches designed to swiftly and affordably elevate high-speed Gigabit connectivity for your home office or small business. These switches boast hassle-free configuration with no installation required, effortlessly mountable on a desk or wall. Thanks to the auto MDI/MDIX functionality, the need for crossover cables is completely eliminated.

Each port on the Grandstream GWN7703 Oman supports auto-negotiation, enabling automatic detection and adjustment of the connection speed for 10/100/1000 Mbps network devices. This guarantees seamless compatibility and optimal performance, ensuring a smooth networking experience.

The PoE (Power-over-Ethernet) model is equipped with an intelligent dynamic PoE output port, fully compliant with IEEE 802.3af standards. This added convenience allows you to power PoE endpoints like IP phones, IP cameras, WiFi access points, and more with ease.

In conclusion, the Grandstream GWN7703 Oman is the epitome of a plug-and-play solution, making it the ideal choice for home offices or small businesses seeking an unmanaged network switch solution that is efficient and user-friendly.

Technical Specifications

• Gigabit Ports : 24
• PoE Ports :  N/A
• Enclosure :  Metal
• Mounting :  Desktop/Rack-Mount
• Standards and Protocols :  IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• Port Features :
  • 16 * 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :  1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• LED Indicators :
  • Per port :  Link/Activity Green
  • Per device :  Power Green
• Mac Address Table :  8K
• Switching Capacity : 48Gbps
• Jumbo Frame :  10KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • Half duplex backpressure
• Power Adapter :  Internal 100-240V AC, 50/60Hz,18W
• Max Power Consumption by Base System : 13W@220V/50Hz
• Environmental :
  • Operating Temperature :  0 to 40 °C (32 to 104 °F)
  • Storage Temperature :  -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity :  10% to 90% Non-condensing
  • Storage Humidity :  10% to 90% Non-condensing
• Dimensions (L x W x H) :
  • Unit :  280 x 180 x 44mm;
  • Package :  366 x 211 x 53mm
• Weight :
  • Unit : 1.35KG
  • Entire Package : 1.95KG
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 1x QIG
• Compliance : FCC, CE, RCM, IC, UKCA
