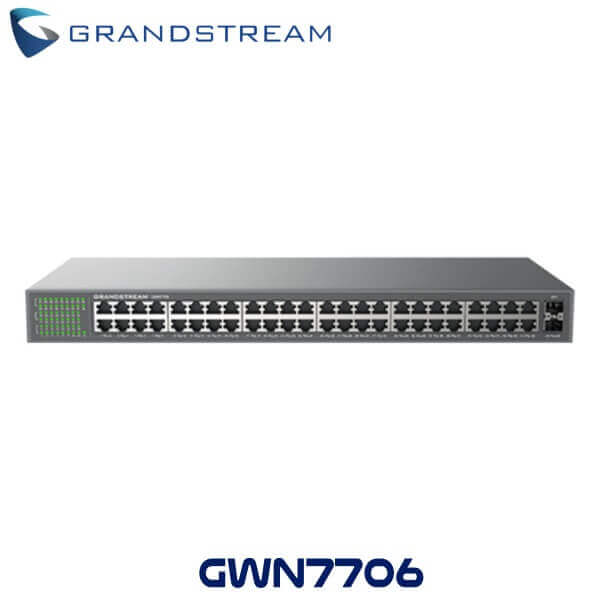

Grandstream GWN7706 Network Switch Oman

Introducing the Grandstream GWN7706 Oman, an unmanaged network switch engineered to provide a swift and cost-effective solution for enhancing high-speed Gigabit connectivity in your home office or small business. These switches offer seamless setup with no configuration or installation required, and they can be effortlessly mounted on a table or wall. The automatic MDI/MDIX functionality eliminates the need for crossover cables, simplifying the setup process. Each port on the Grandstream GWN7706 Oman supports auto-negotiation, intelligently detecting and adapting to the connection speed of 10/100/1000 Mbps network devices, ensuring smooth compatibility and optimal performance.

For added convenience, the PoE (Power-over-Ethernet) model features a smart dynamic PoE output port compliant with IEEE 802.3af standards. This enables you to power PoE endpoints such as IP phones, IP cameras, WiFi access points, and more with ease. To sum up, the Grandstream GWN7706 Oman is a plug-and-play solution, making it the perfect choice for home offices or small businesses seeking an unmanaged network switch that is efficient and hassle-free.

Technical Specifications

• Gigabit Ports : 48
• Enclosure : Metal
• Mounting : Desktop/ Rack-Mount
• Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
• Port Features :
  • 48× 10/100/1000 Mbps RJ-45 Ports
  • 2× SFP Fiber Ports
  • AUTO Negotiation, AUTO MDI/MDIX
• Network Media : 1000Base-X, 1000Base-T/100Base-TX/10Base-Te, Half/Full-Duplex
• LED Indicators :
  • Per port : Link/Activity Green
  • Per device : Power Green
• Mac Address Table : 16K
• Switching Capacity : 100Gbps
• Jumbo Frame : 9KB
• Advanced Features :
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
• Power Adapter : Internal 100-240V AC,50/60Hz,40W
• Max Power Consumption by Base System : 30W@220V/50Hz
• Environmental :
  • Operating Temperature : 0 to 40 °C (32 to 104 °F)
  • Storage Temperature : -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity : 10% to 90% Non-condensing
  • Storage Humidity : 10% to 90% Non-condensing
• Dimensions (L x W x H) Unit : 440 x 200 x 44mm
• Package : 500*335*89mm
• Weight
  • Unit : 2.80Kg
  • Entire Package : 3.60Kg
• Package :
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Fee
  • 1x GND Cable
  • 1x QIG
• Compliance : FCC, CE, RCM, IC, UKCA
