Hanwha QRN430S



Hanwha QRN430S

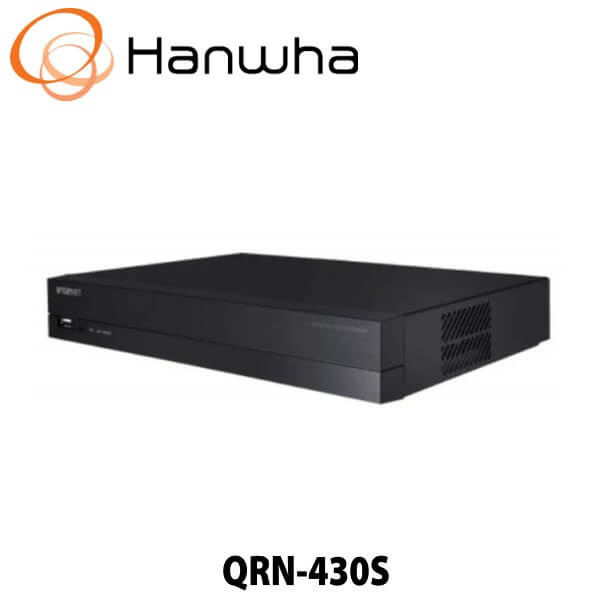

The Hanwha QRN430S CCTV Network Video Recorder, previously recognized under the renowned Samsung CCTV brand, delivers a reliable and high-performance surveillance solution designed specifically for small-scale security applications.

Description

Hanwha QRN430S

The Hanwha QRN430S CCTV Network Video Recorder, previously recognized under the renowned Samsung CCTV brand, delivers a reliable and high-performance surveillance solution designed specifically for small-scale security applications. Engineered for ease of use, long-term dependability, and seamless operation, this 4-channel NVR is an ideal choice for homeowners, retail establishments, and small business owners who require a robust yet user-friendly security system. With its advanced capabilities, it ensures smooth and efficient monitoring, high-quality recording, and enhanced security management. Whether safeguarding a home or a commercial space, this NVR provides an effective and hassle-free way to maintain continuous surveillance, offering both protection and peace of mind.

High-Quality Video Recording

The Hanwha QRN430S Oman provides support for high-resolution video recording up to 8MP (4K), ensuring clear, detailed footage essential for precise monitoring and incident review. This high-definition capability significantly enhances visual clarity and security monitoring effectiveness.

Efficient H.265 Compression

Utilizing the latest H.265 compression technology, the Hanwha QRN430S reduces storage and bandwidth usage substantially, allowing for longer recording durations without compromising video quality. This efficiency is vital for smaller setups with limited storage resources.

Easy Installation and Management

The built-in PoE (Power over Ethernet) ports facilitate easy installation by delivering power and data connectivity to CCTV cameras through a single cable. The intuitive graphical user interface makes management, live monitoring, playback, and event handling straightforward, even for users with minimal technical experience.

Robust Analytics

The Hanwha QRN430S includes intelligent security analytics like motion detection and tampering alerts. These features ensure rapid, real-time notifications, helping operators swiftly respond to potential security breaches.

Versatile Display Compatibility

With HDMI and VGA outputs, the Hanwha QRN430S connects seamlessly to a variety of display monitors, allowing flexible viewing and playback options suitable for different environments and setups.

Reliable and Expandable Storage

The NVR supports 1 HDD slot capable of handling up to 6TB, providing ample storage space for surveillance video. This storage capability ensures critical footage remains secure and accessible for extended periods, ideal for compliance and review purposes.

For those seeking a compact, efficient, and high-performance surveillance solution, the Hanwha QRN430S CCTV NVR is a top-tier choice. Its 4K video recording, efficient compression, intelligent analytics, and expandable storage make it an ideal security system for homes, small businesses, and retail spaces. With its easy installation and user-friendly interface, even beginners can manage security operations seamlessly.

Invest in the Hanwha QRN430S for a smarter, more secure surveillance system tailored to your needs.

Features:

  • 4-channel recording support
  • Resolution up to 8MP (4K)
  • H.265/H.264 video compression
  • Built-in PoE ports
  • HDMI/VGA video outputs
  • Advanced security analytics
  • 1 HDD slot supporting up to 6TB
  • Easy-to-use graphical interface

Specifications:

Display
Network camera
Network camera > Inputs Max. 4CH
Network camera > Resolution 8MP ~ CIF
Network camera > Protocols SUNAPI, ONVIF
Decoding
Decoding > Local Display HDMI
Decoding > Multi Screen Display [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4
Decoding > Resolution [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps)
Performance
Operating System
Operating System > Embedded Linux
Record
Record > Compression H.265, H.264, MJPEG
Record > Recording Bandwidth Max. 40Mbps
Record > Resolution 8MP ~ CIF
Record > Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Record > Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
Record > Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Search & Play > Playback Bandwidth Max. 32Mbps
Search & Play > User Max. 4 Users (Local 1, Remote 3)
Search & Play > Simultaneous playback Max. 16CH(Local 4CH, Remote 4CH per user)
Search & Play > Fisheye Dewarping CMS
Search & Play > Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Search & Play > Resolution CIF ~ 8MP
Search & Play > Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Storage > Supported HDD Up to 6TB
Storage > HDD Slot SATA 1ea(Max. 6TB)
Backup
Backup > File backup BU/Exe(GUI), JPG/AVI(Network)
Backup > Function Multi channel(Up to 4CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Hanwha DDNS
Transmission Bandwidth Max. 50Mbps
Audio
Audio > Input/Output 4 CH(network)
Audio > Compression G.711, G.726, AAC(16/48KHz)
Audio > Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
Web viewer > Supported OS Windows 10, macOS 10.13
Web viewer > Supported browser Google Chrome, Microsoft Edge, Mac Safari
Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera Setup
Camera Setup > Register Auto, Manual
Camera Setup > Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
PTZ > Control Via GUI, Webviewer
PTZ > Preset 300 Presets
Smart phone
Smart phone > Support Model iOS, Android
Smart phone > Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Smart phone > Control Live 4CH(Multi-Profile Support), Playback 4CH
Smart phone > Max. Remote Users Search(3), Live Unicast(10)
Redundancy
Redundancy > Failover N+1
Redundancy > ARB Support
Easy configuration P2P(QR code)

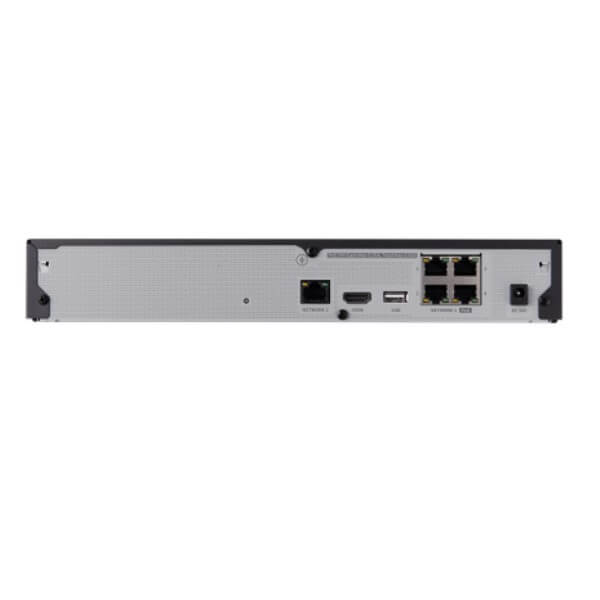

Interface
Front
Front > Indicator Power, Record, Network
Storage OK
Reset Support
HDMI 1EA 3840×2160 30Hz
Ethernet PoE RJ-45(LAN, 10/100) 4 ea ,RJ-45 1ea (WAN, 10/100)
USB 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0)
Power inlet DC Adaptor
System
Log
Log > Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Web
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption Max 52W(1HDD, PoE On)
PoE Budget 35W
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch)
Weight 1.03Kg (2.27lb)
