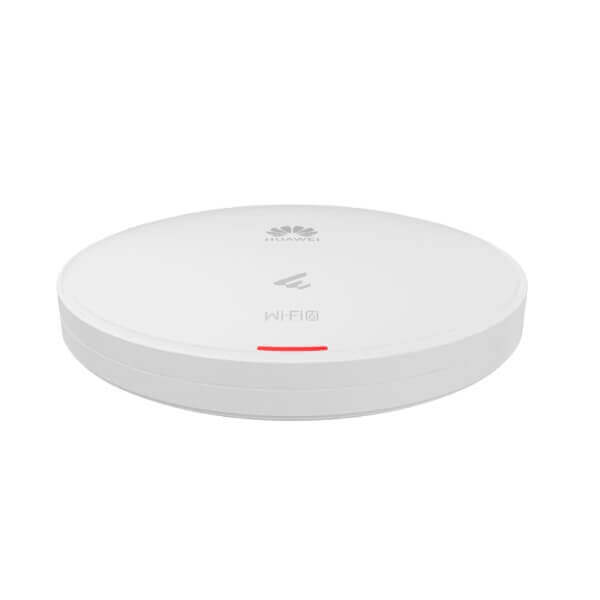

Huawei AP661 Access Point Oman
The Huawei AP661 Oman represents the pinnacle of wireless access point (AP) technology, adhering to the latest Wi-Fi 6 standard. This cutting-edge device is engineered to deliver exceptional service across three separate frequency bands concurrently. It features a 2.4 GHz band with 2×2 MIMO, a 5 GHz band with 2×2 MIMO, and an additional 5 GHz band with 4×4 MIMO, ensuring robust and efficient connectivity. The integration of built-in smart antennas plays a crucial role in maintaining strong, uninterrupted Wi-Fi signals, thereby enhancing the overall wireless network experience for users. This makes the Huawei AP661 Oman particularly well-suited for high-density environments, such as mobile offices, educational institutions, and large venues like stadiums, where reliable and high-performance connectivity is paramount.
Features
- 1 x 2.5GE electrical port + 1 x GE electrical port
- Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
- USB port for IoT expansion (such as ZigBee and RFID)
- Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP661(11ax indoor,2+2+4 tri bands,smart antenna,USB,BLE) |
| Part Number | 02355VFC |
| Model | AP661 |
| First supported version | V200R023C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.) |
| Weight without packaging [kg(lb)] | 1.08 kg (2.38 lb) |
| Storage | NAND Flash 512 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 21.2 (excluding USB), 802.3at/af power supply |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] |
|
| Service port surge protection | PoE port:
|
| Maximum number of physical ports on the entire device |
|
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 |
| BLE | BLE5.2 |
| Radio number | 3 |
| Operating frequency band |
|
| MIMO spatial streams |
|
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
5G:
|
| Maximum transmit power | 2.4 GHz:
5 GHz (2×2):
5 GHz (4×4):
|
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 22 dBm/chain
5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 96 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description |
|
| DC power supply description | No function is limited. |
