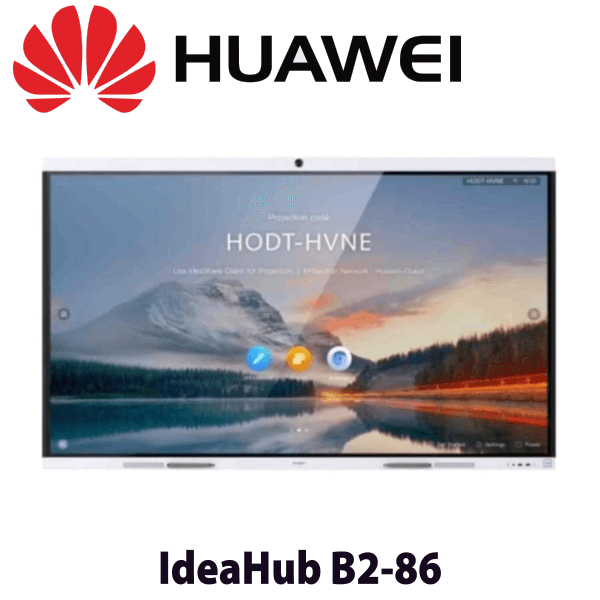

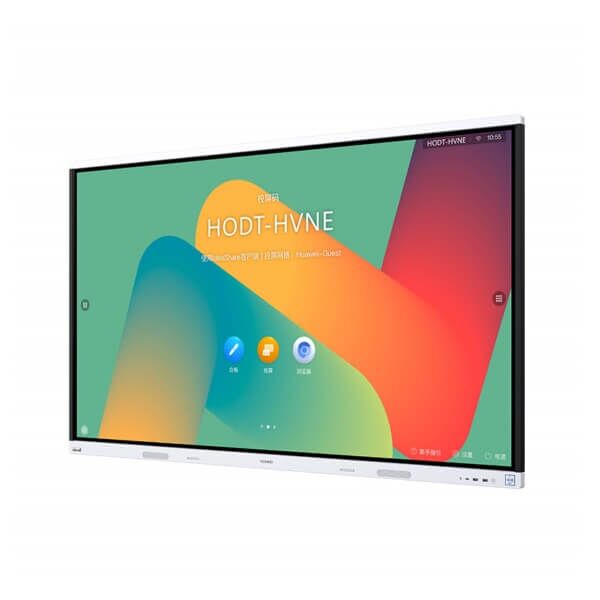

Huawei IdeaHub B286 Intelligent Meeting Panel Oman

Introducing the next-generation meeting panel, designed with a completely new hardware architecture platform to deliver a superior high-definition cloud conferencing experience. The Huawei IdeaHub B286 Oman comes equipped with a state-of-the-art 4K soft light screen, ensuring a visually enhanced and eye-friendly display. This innovative technology offers a fully upgraded projection and writing experience, making it highly responsive and intuitive for users. Whether you’re presenting a detailed business report, conducting an interactive project workshop, or hosting routine meetings, this versatile device is engineered to enhance collaboration in a wide variety of professional environments. Huawei IdeaHub B286 Oman meets the demands of modern digital workplaces by offering a seamless, lightweight, and highly efficient office solution that promotes productivity and engagement in every setting.

Features

Multi-Platform Cloud Conferencing

The HD cloud-based video conferencing offers out-of-the-box service without OPS configuration. The professional 4K camera adopts a 1.5 μm industrial-grade image sensor, providing low-noise natural image with TV distortion less than 2%. Its circulating heat dissipation design reassures consistent resolution even after long meetings. The 6-microphone array easily picks up sound in a radius of 10 meters using the beamforming technology. A 3D stereo speaker is equipped with a 550 cm³ ultra-large sound cavity for premium clarity.

Dual Wi-Fi Projection, Stable and Fast

USB driver-free projection for HD audio and video sharing; dual Wi-Fi modules, ensuring no interference between internet connection and projection; Reverse control for easier page turning and annotation.

Intelligent Whiteboard for Smooth Writing

With Huawei-developed handwriting tracking algorithm, the writing latency is as low as 25 ms. The all-new magnetic stylus pen supports multiple strokes and thickness options. Text and graphics can be accurately identified and handwritten content can be convered into standard text immediately. You can scan the QR code on the whiteboard to save the meeting content to your phone or tablet, providing free access anytime and anywhere.

IdeaManager: Comprehensive O&M Platform

Remote management and control of multiple devices: basic device configuration and remote OTA updates; Optimized organizational management: app usage statistics and fault inspection; IdeaCare for troubleshooting: one-click diagnosis of typical faults as well as remote assistance from professionals

Technical Specifications

• Model: IHB2-86PU
• Product dimensions: 1953.0mm × 91.8mm × 1180.6mm
• Package dimensions: 2090mm × 250mm × 1300mm
• Component
  • Device: 1
  • Stylus pen: 2
  • Cable: Power cable x 1

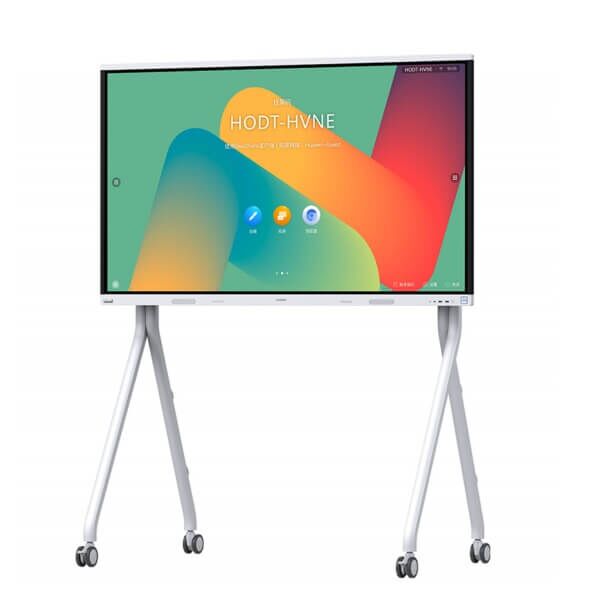

  • Rolling Stand: Optional (65″, 75″, and 86″)
  • Wall-mounted bracket: Optional (65″, 75″, and 86″)
  • IdeaShare Key: Optional
  • OPS: Optional
• Screen
  • Resolution: 4K UHD (3840 x 2160)
  • Backlight type: D-LED
  • Lamination: Zero-gap bonding
  • Viewing angle: 178°
  • Color depth: 10-bit (8-bit + FRC)
  • Color gamut: 85% NTSC (typical value)
  • Refresh rate: 60 Hz
  • Number of touch points: 20
• Camera
  • Zoom: 2x digital zoom
  • Maximum angle of view: Horizontal: 80°/ Vertical: 50°
  • Video output resolution: 4K
  • TV distortion:＜2%
  • Aperture: F/1.8
• Speaker
  • Frequency domain: 100Hz-20kHz
  • Speaker unit: 2 x full frequency speaker + 2 x high-frequency speaker
  • Stereo: √
  • Maximum power: 30W
• Microphone
  • Sound pickup angle: 180°
  • Quantity: 6
  • Frequency domain: 100Hz-20kHz
  • Sound pickup distance: 10m
• Wireless connection
  • Dual-Wi-Fi module: √
  • Frequency: 2.4 GHz/5 GHz
• System
  • CPU: 4-core
  • RAM: 4 GB
  • Flash: 32 GB
  • OS: Android 9.0/Windows 10 (To use Windows 10, an OPS plug-in computer is required.)
• Interface
  • Front-panel ports
    • USB Type-C x 1
    • USB Type-A 3.0 x 2
  • Side-panel ports
    • USB Type-A 3.0 x 1
    • USB Type-B x 1
    • HDMI IN x 2
    • HDMI OUT x 1
    • COM port x 1
    • RJ45 network port x 1
    • 80-pin OPS port x 1
    • 3.5mm Line-in x 1
    • 3.5mm Line-out x 1
  • Meeting
    • Third-party meeting app: √
• Projection
  • Projection mode
    • IdeaShare projection code
    • HDMI and Type-C wired projection
    • IdeaShare Key
    • NFC and projection through the drop-down menu
  • Projection effect
    • Wireless projection: up to 4K 30 fps
    • Wired projection: up to 4K 60 fps
  • Supported OS on clients: Android / Windows / iOS / macOS
  • Annotation during projection: √
  • Reverse control: √
• Writing
  • Writing latency: ≤25ms
  • Precision: ±1mm
  • Touch sensing distance: ≤1.5mm
  • Whiteboard saving mode: QR code scanning/Email/Local storage/USB flash drive
  • Intelligent writing recognition: √
