Description

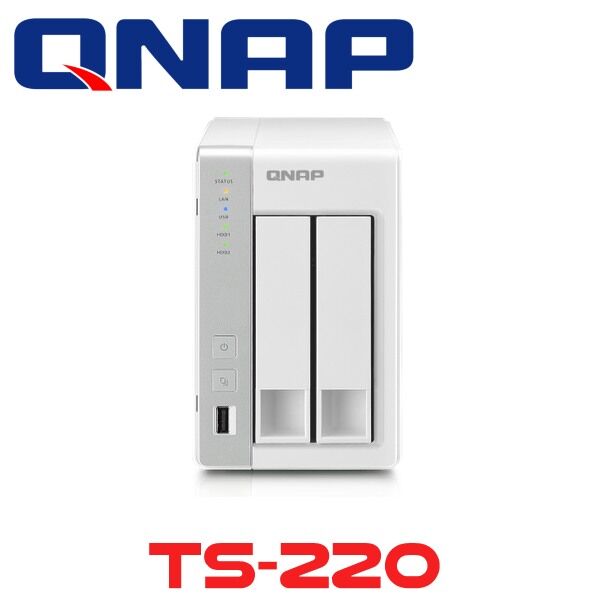

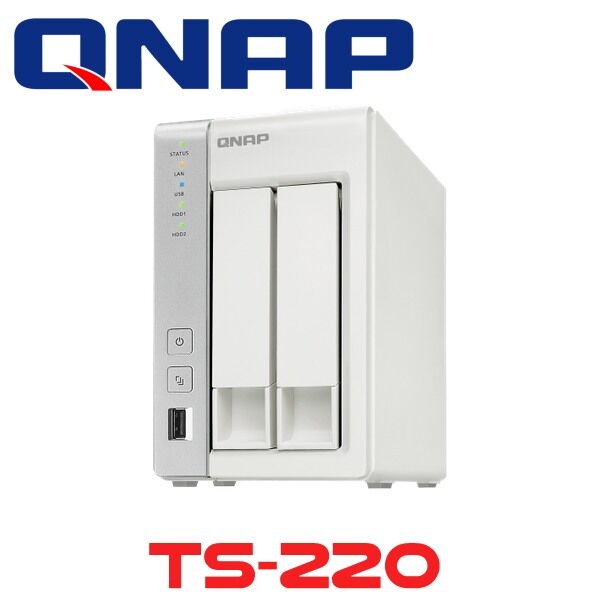

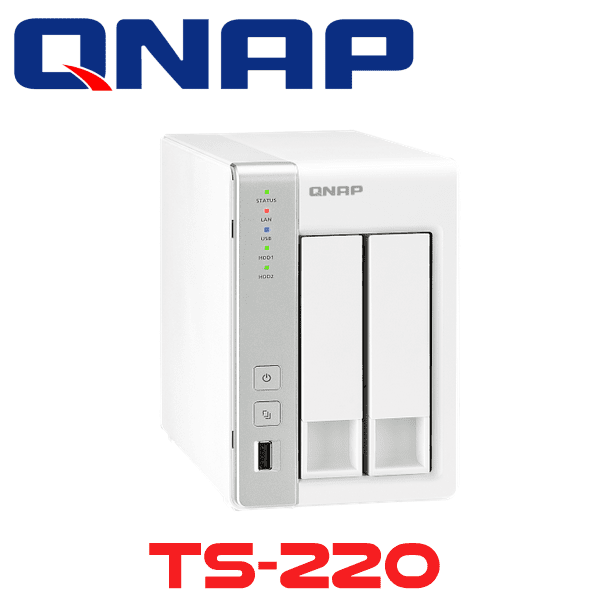

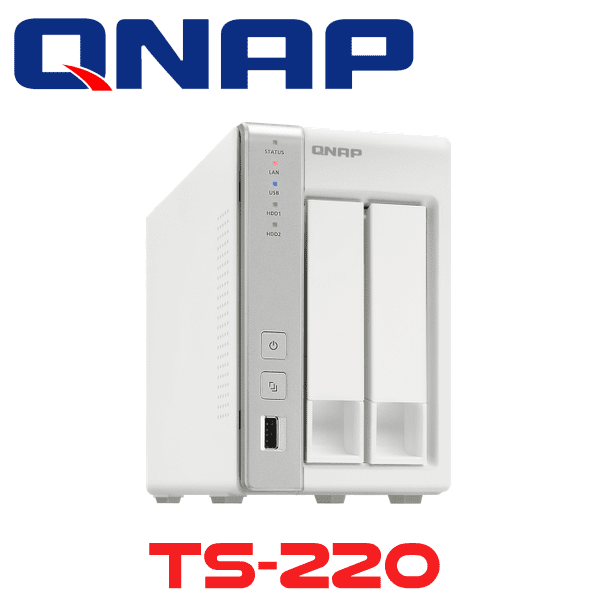

Qnap TS-220 2-Bay NAS Server Oman

The TS-220 Oman 2-Bay Home and SOHO NAS Server from QNAP is designed for personal cloud and social sharing. The NAS server features QTS 4.0 operating system, which makes your digital life easier, simpler and more convenient. The QTS 4.0 desktop includes quick main menu, graphic dashboard, drag-and-drop icons, multiple desktops, personalized wallpapers and a smart toolbar, making system operations much easier.

The NAS server also features multi-window, multitasking GUI, data storage, backup, sharing and disaster recovery and many more. Furthermore, it consists of rich multimedia applications for entertainment and Dropbox-like file synchronization.

Features

Simple yet Powerful Storage
- The Qnap TS-220 Oman is an easy-to-use network storage center for data storage, backup, synchronization, remote access and home entertainment. With your personal cloud, you will always be connected to your files and your files are always under your control

- You can organize your data/content and backups in one centralized location
- Synchronize files across computers, tablets and mobile devices and share files across different groups and communities
- Collect, enjoy and share your large photo, music and video collection
- Enjoy HD movies or family videos on TV when streamed through various network players
- Access, manage and enjoy all your files with your tablets and smartphones
- Extend your diverse applications on the TS-220 by installing more than 80 apps on demand in the App Center

Easier Operations on QTS 4.0 Desktop
- The QTS 4.0 operating system makes your digital life easier, simpler and more convenient. The QTS 4.0 desktop includes quick main menu, graphic dashboard, drag-and-drop icons, multiple desktops, personalized wallpapers and the smart toolbar, making system operations much easier. In addition, multitasking support allows multiple windows to be open to access multiple applications concurrently
Centralize and Protect Your Data
- The Qnap TS-220 Oman is a high-performance cross-platform storage solution with many user-friendly storage and backup options that allow you to centralize and protect all your important files on one single device
Apple Time Machine Backup
- Time Machine is fully supported to help Mac OS X users create a more efficient and convenient backup solution. The Qnap TS-220 Oman works with Time Machine wirelessly over the same network, so you no longer need an external drive
More Backup Options
- The Netbak Replicator is a license-free backup software which allows you to back up your files in multiple Window client PCs in schedule or real-time. You can also gain a disaster recovery solution with our RTRR (Real Time Remote Replication) feature by replicating data in multiple shared folders from one NAS to another over the network to ensure the safety of your important data. Besides, data can also be backed up to another FTP server, external disk or online cloud storage services
User Access Controls
- All your digital files stored can be managed to share with your family and friends. You can easily and flexibly set up user accounts, user groups, shared folder access right and user quota
Unauthorized IP-Based Blocking
- A comprehensive list granting proper access from different users based on IP address can be established to authorize or deny access to the Qnap TS-220 Oman.
Built-In Anti-Virus
- The Qnap TS-220 Oman has a built-in anti-virus feature to detect and protect against viruses, malware, worms, and Trojan horses
Encrypted Login, Access and Network Transfer
- Supports SSH remote login, SSL security (HTTPS), Secure FTP and encrypted remote replication
Detailed Logs
- Detailed logs of file-level access to the Qnap TS-220 Oman via different file transfer protocols and services accessed by online users can all be recorded
Freely Access Your Cloud Anywhere
- Through any web browser or the free app for tablets and smartphones, the Qnap TS-220 Oman becomes your personal cloud so you are always connected to your data. Take advantage of the myQNAPcloud service, which allows you to remotely access your TS-220 wherever you are. Instantly stream or share your multimedia contents and share them with your friends
Access from Anywhere
- Qsync is a new feature that allows you to sync all your devices on the go. It can be synced anywhere on the web, at your home, in the office and on the go
Community Share
- Qsync makes your Qnap TS-220 Oman a team-sharing device, allowing you to share and edit files among your teammates with automatic updates on the files your team is working on. Qsync provides the function of file synchronization like Dropbox service and offers a cost-effective way to share files across groups and communities
Photo Albums on the Cloud
- The TS-220 acts as a photo vault for you to back up your favorite photos. The Photo Station makes photo sharing simple and you can designate your own access right controls. Simply upload your photos to the TS-220 to create and organize your photo albums through a web browser to share with your family and friends. Your mobile devices are useful too; with the Qfile mobile app in your iOS or Android device, you can instantly upload photos to the TS-220.

Specifications

Hardware
CPU	Marvell 1.6 GHz
DRAM	512 MB DDR3 RAM
Flash Memory	16 MB
Hard Disk Drive	2 x 3.5″ or 2.5″ SATA II HDD/SSD*
Hard Disk Tray	2 x hot-swappable
LAN Port	1 x Gigabit RJ-45 Ethernet port
LED Indicators	STATUS, LAN, USB, HDD 1, HDD 2
USB	1 x USB 2.0 port (front) 2 x USB 3.0 port (back) Supports USB printer, disk, pen drive, USB hub and USB UPS, etc
eSATA	2 x eSATA port (back)
Buttons	Power button, USB one-touch-backup button, reset button
Alarm Buzzer	System warning
Form Factor	Tower
Secure Design	K-lock security slot for theft prevention
Fan	1 x 2.7″ (7 cm) quiet cooling fan, 12 V DC
Software
Operating System	QTS 4.0
Supported Operating Systems	Windows 8 (32/64-bit), Vista, Windows 7 (32/64-bit), Windows XP, Windows Server 2003/2008 R2/2012 Apple Mac OS X Linux & UNIX
Supported Web Browsers	Microsoft Internet Explorer 8, 9, 10 Mozilla Firefox 8+ Apple Safari 4+ Google Chrome
File System	Internal Hard Drive : EXT3, EXT4 External Hard Drive : EXT3, EXT4, NTFS, FAT32, HFS+
Networking	TCP/IP (IPv4 & IPv6 : dual stack) Proxy client, proxy server DHCP client, DHCP server Protocols : CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC TFTP Server with PXE booting UPnP & Bonjour Discovery USB Wi-Fi adapter support
Backup Solution	Real-Time Remote Replication (RTRR) : Works as both RTRR server & client with bandwidth control Real-time & scheduled backup Encryption, compression, file filter and transfer rate limitation Block-Level Remote Replication : Works as both Rsync Server & client with bandwidth control Encrypted replication between QNAP NAS Servers Desktop backup by QNAP NetBak Replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to Cloud storage (Amazon S3, ElephantDrive, Symform and Google Drive)
Security	IP filter & policy-based automatic IP blocking Network Access Protection with Auto-Blocking : SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access : HTTPS, FTP with SSL/TLS (explicit), SSH/SFTP (admin only), encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS host access control for shared folders Antivirus protection Importable SSL certificate Instant alert via E-mail, SMS, instant messaging (Windows Live) and beep
Disk Management	Single disk, JBOD, RAID 0, 1 Online RAID capacity expansion & online RAID Level migration Bad block scan & hard drive S.M.A.R.T. RAID recovery Bitmap support
iSCSI (IP SAN)	iSCSI target with multiple LUNS per target (Up to 256 targets/LUNs combined) LUN mapping & masking Online LUN capacity expansion Supports SPC-3 persistent reservation Supports MPIO & MC/S iSCSI LUN backup, one-time snapshot and restore iSCSI connection and management by QNAP Finder (Windows) Stack Chaining Master : Up to 8 virtual disk drives (via iSCSI initiator)
Server Virtualization and Clustering	Supports VMware vSphere (ESX/ESXi 4.x, ESXi 5.x) Supports Citrix XenServer 5.x, 6.x Supports Windows Server 2008 R2 and Windows Server 2012 Hyper-V Supports Windows Server 2008 R2 and Windows Server 2012 failover cluster
Power Management	Wake-on-LAN Internal hard drive Standby mode Scheduled power on/off (max 15 settings) Automatic power on after power recovery USB and network UPS support with SNMP management
Access Rights Management	Maximum No. of Users : 2048 Maximum No. of User Groups : 256 Maximum No. of Network Shares : 256 Batch users creation Import/Export users User quota management Local user access control for CIFS, AFP, FTP and WebDAV Application access control for Photo Station, Music Station and Video Station Subfolder permissions support for CIFS/SMB, AFP, FTP and File Station
Domain Authentication Integration	Microsoft Active Directory (AD) LDAP Server LDAP client Domain users login via CIFS/SMB, AFP, FTP and Web File Manager
myQNAPcloud Service	Private cloud storage and sharing Free host name registration (DDNS) Auto router configuration (via UPnP) CloudLink for easy VPN connection (Windows VPN utility)
Storage Plug and Play	Windows Software : QNAP Finder Create and map shared folders Create and connect to iSCSI Target/LUN
Web Administration	Smart fan control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource monitor Network Recycle Bin for file deletion via CIFS/SMB and AFP Automatic cleanup File type filter Comprehensive logs (events & connection) Syslog client Firmware live update System settings backup and restore Restore to factory default Mobile App Qmanager for remote monitoring
Multilingual Support	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
Powerful All-in-one server
Photo Station	Supported File Formats : Photo : JPG/JPEG, GIF, PNG, BMP, RAW (.arw, .srf, .sr2, .dcr, .kdc, .cr2, .crw, .nef, mrw, .pef, .paf, .3fr, .erf, .mef, .mos, .orf, .rw2, .dng, .x3f, .tif, .nrw, .raf) Video : FLV, MPEG-4 video (H.264 + AAC) Image slideshow with background music, thumbnails and different transition effects Online photo editing by Pixlr editor Geotagging photos with Google Maps Slideshow sharing (from private albums) with password protection Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger) Photo sharing by E-mail
Music Station	Supported Audio Formats : MP3, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC Local playback with USB speakers/sound card Music streaming from DLNA/UPnP media servers Internet Radio (MP3) Music alarm (up to 8 alarms) Remote Playback Control by QNAP Mobile App : QMobile
iTunes Server	Audio and video sharing for Windows & Mac iTunes (MP3, AIFF, WAV, MPEG-4, AAC and M4A) Smart playlist
Video Station	Web video sharing Video Categorization and Transcoding Supported Format : mv, avi, divx, 3gp, mov, mpeg, mpg, xvid, flv, asf, rm, dat, mp4 Video Upload : Up to 2048 MB in size Up to 320 minutes in length Batch upload (max 50 files) Publish videos to Facebook, Twitter and Google+
TV Station	DVB-T* digital TV live view, recording and playback Supports up to 2 USB TV tuners Electronic Programming Guide (EPG) with scheduled recording
DJ Station	Live web broadcasting of music playlists Music Sharing on Facebook
Download Station	PC-less BT, FTP, HTTP download (up to 500 tasks) BT Download with Magnet Link and PT Support : Supports TCP/UDP tracker protocol Scheduled download Configurable port range Bandwidth control RSS subscription and download (broadcatching) Selectable download files Configurable saving directory HTTP/FTP Download : Bulk download with wildcard settings RapidShare download support Website Subscription Service : YouTube QNAP Download Management Software : QGet For both Windows & Mac OS Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN
Surveillance Station Pro	Supports over 1,400 IP cameras Includes 1 free camera license Up to 8 camera channels via additional license purchase Intelligent Video Analytics (IVA) for advanced video search Visual aids by E-map Surveillance client for Mac Mobile App : VMobile (iOS & Android)
File Station	File sharing across Windows, Mac and Linux/UNIX Windows ACL Advanced folder permission for SMB, AFP, FTP and file station Shared folder aggregation (CIFS/SMB) File Manager Supports ISO mounting (Up to 256 ISO files) File viewing via Google Doc Create and send download links for public file sharing with expiration time and password protection File drag-n-drop via Chrome and Firefox browsers Photo, music and video preview and playback with transcoding File compression (ZIP or 7z) Advanced search Mobile App : Qfile for file browsing and management
FTP Server	FTP over SSL/TLS (explicit) Max No. of Concurrent Connections : 256 FXP supported Passive FTP port range control FTP bandwidth & connection control Unicode support
Backup Station	Remote replication server (over Rsync) Real-time remote replication to another QNAP NAS or FTP server Apple Time Machine support Windows Client Backup Application : QNAP NetBak Replicator Third Party Backup Software Support : Veeam Backup & replication, Acronis True Image, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc.
App Center	Add new features by online installation of official and community apps*
Print Server	Max No. of Printers : 3 Supports Internet Printing Protocol Print job display and management IP- and domain name-based privilege control Supports Apple Bonjour printing
VPN Server	Secure Remote Access : PPTP & OpenVPN VPN services Remote access to other resources on local network Max No. of Clients : 30
Web Server	HTTP/HTTPS connections Supports WebDAV connections Support virtual host (Max : 32) Importable SSL certificate
Database Server	Built-in MySQL server Web-based management via phpMyAdmin (App Center)
Syslog Server	Centralized log monitoring and archiving Immediate E-mail alerts Supports log filtering
RADIUS Server	Centralized account management and authentication for network access Supports PAP, EAP-TLS/PAP and EAPTTLS/PAP authentication
Antivirus	Protection against viruses, Trojans and other threats Free Virus databases update on manual or scheduled basis Multiple scan tasks (max : 64, concurrent : 5) with custom folder selection and scheduled scanning E-mail notification upon task completion or virus detection Quarantines or deletes infected files
Power
Type	External power adapter
Power Supply	60 W, Input : 100-240 V
Power Consumption	Sleep Mode : 7 W In Operation : 19 W (with 2 x 500 GB HDD installed)
Environmental
Temperature	32 to 104°F (0 to 40˚C)
Relative Humidity	0 to 95%
General
Dimensions (WxHxD)	4.0 x 6.6 x 8.8″ (102 x 168.5 x 225 mm)
Weight	5.1 lb (2.3 kg)
Packaging Info
Box Dimensions (LxWxH)	10.7 x 9.3 x 8.2″
