| Hardware |
| CPU |
Marvell 2.0 GHz |
| DRAM |
512 MB DDR III RAM |
| Flash Memory |
16 MB |
| Hard Disk Drive |
4x 2.5″ (63.50 mm) or 3.5″ (88.90 mm) SATA I/II HDD |

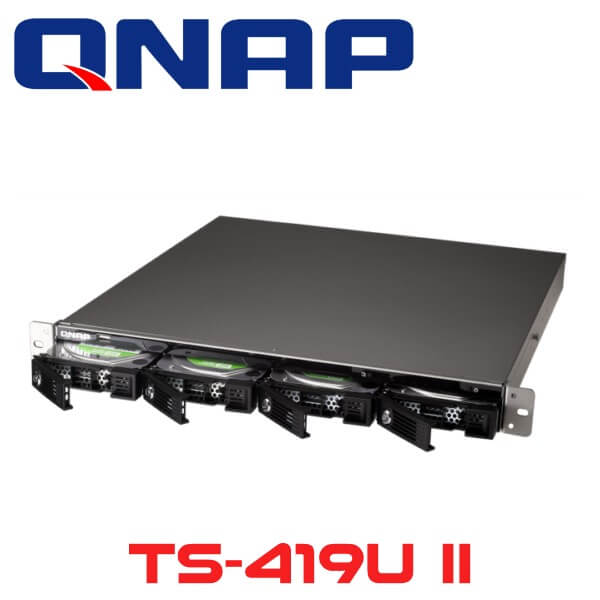

| Hard Disk Tray |
4x Hot-swappable and lockable tray |
| LAN Port |
2 x Gigabit RJ-45 Ethernet port |
| LED Indicators |
USB, Status, HDD 1, HDD 2, HDD 3, HDD 4, LAN |
| USB |
- 4x USB 2.0 port (front : 1; back : 3)
- Supports USB printer, disk, pen drive, USB hub, USB UPS and more
|
| eSATA |
2 x eSATA ports (Back) |
| Buttons |
System : Power button, USB one-touch-backup button, reset button |
| Supply Type |
System warning |
| Form Factor |
Rackmount |
| Power Consumption |
- Sleep mode : 12 W
- In Operation : 33 W (with 4x 500 GB HDD installed)
|
| Power Supply |
- Input : 100-240 V AC, 50-60 Hz
- Output : 250 W
|
| Fan |
2x 1.57″ (4 cm), 12 V DC quiet cooling fan |
| General |
| Temperature |
32 to 104˚F (0 to 40˚C) |
| Humidity |
0-95% R.H. |
| Dimensions |
1.73 x 17.28 x 19.01″ (44 x 439 x 483 mm) |
| Weight |
14.77 lb (6.7 kg) |
| Software |
| Operating System |
QNAP Firmware v3.6 |
| Supported Operating System |
- Microsoft Windows XP, Vista, 7 (32 or 64 bit), Server 2003 or 2008 R2
- Apple Mac OS X
- Linux and Unix
|
| Supported Web Browsers |
- Internet Explorer 8, 9
- Firefox 8, 9, 10
- Safari 4, 5
- Google Chrome
|
| Multilingual Support |
Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| File System |
- Internal HDD : EXT3, EXT4
- External HDD : EXT3, EXT4, NTFS, FAT32, HFS+
|
| Networking |
- TCP/IP (IPv4 and IPv6 : dual stack)
- Dual Gigabit NICs with Jumbo Frame
- Failover
- Multi-IP settings
- Port trunking/NIC teaming (Modes : Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb)
- Service binding based on network interfaces
- Virtual LAN (VLAN)
- DHCP client, DHCP server
- Protocols : CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC UPnP andbonjour discovery
- USB Wi-Fi adapter support
|
| Backup Solution |
- Real-Time Remote Replication (RTRR)
- Works as both RTRR server and client with bandwidth control
- Real-time and scheduled backup
- Encryption, compression, file filter and transfer rate limitation
- Block-Level Remote Replication
- Works as both Rsync server and client with bandwidth control
- Encrypted replication between QNAP NAS servers
- USB one touch backup (Import or Export)
- Desktop backup by QNAP NetBak replicator for Windows
- Apple Time Machine support with backup management
- Data backup to multiple external storage devices
- Data backup to Cloud Storage (Amazon S3, ElephantDrive and Symform)
|
| Security |
- IP Filter and policy-based automatic IP blocking
- Network Access Protection with Auto-blocking : SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
- Encrypted Access : HTTPS, FTP with SSL/TLS (explicit), SSH/SFTP (admin only), Encrypted Remote Replication between QNAP NAS servers (Rsync over SSH)
- CIFS host access control for shared folders
- Antivirus protection
- Importable SSL certificate
- Instant alert via email, SMS, instant messaging (Windows Live Messenger), buzzer and LCD panel
|
| Disk Management |
- Single Disk, JBOD, RAID 0, 1, 5, 5+Hot Spare, 6, 10
- Online RAID capacity expansion and online raid level migration
- Bad block scan and hard drive S.M.A.R.T.
- Global hot spare drive
- RAID recovery
- Bitmap support
|
| iSCSI (IP SAN) |
- iSCSI target -Multi-LUNs per target
- Up to 256 targets/LUNs combined
- Supports LUN mapping andmasking
- Online LUN capacity expansion
- Supports SPC-3 persistent reservation
- Supports MPIO and MC/S
- iSCSI LUN backup, one-time snapshot and restore
- iSCSI connection and management by QNAP Finder (Windows)
- Virtual disk drive (via iSCSI initiator)
- Stack chaining master
- Max.no. of virtual disk drives : 8
|
| Server Virtualization & Clustering |
- Supports VMware vSphere
- Supports Citrix XenServer
- Supports Windows Server 2008 R2 Hyper-V and failover clustering
|
| Power Management |
- Wake on LAN
- Internal hard drive standby mode
- Scheduled power on/off (max. 15 settings)
- Automatic power on after power recovery
- USB and network UPS support with SNMP management
|
| Access Rights Management |
- User accounts management
- User groups management
- Network shares management
- Batch users creation
- Import/export users
- User quota management
- Subfolder permissions support for CIFS/SMB, AFP, FTP and web file manager
|
| Domain Authentication Integration |
- Microsoft Active Directory (AD)
- LDAP server
- LDAP client
- Domain users login via CIFS/SMB, AFP, FTP and web file manager
|
| MyCloudNAS Service |
- Private Cloud Storage and sharing
- Free host name registration (DDNS)
- Auto router configuration (via UPnP)
- MyCloudNAS connect for easy connection (Windows utility)
|
| Storage Plug & Play |
- Windows Software : QNAP finder
- Create and map shared folders
- Create and connect to iSCSI Target/LUN
|
| Web Administration |
- AJAX-based user interface
- Smart fan control
- Dynamic DNS (DDNS)
- SNMP (v2 and v3)
- Resource monitor
- Network recycle bin for file deletion via CIFS/SMB and AFP
- Comprehensive logs (events and connection)
- Syslog client
- Firmware live update
- System settings backup and restore
- Restore to factory default
|
| Powerful All-in-one server |
| File Server |
- File sharing across Windows, Mac and Linux/UNIX
- Shared folder aggregation (CIFS/SMB)
- Web file manager
- Supports ISO mounting
- Direct file viewing via Google doc
- Create and send download links for public file sharing with expiration time and password protection
|
| FTP Server |
- FTP over SSL/TLS (explicit)
- Max.No. of Concurrent Connections : 256
- FXP supported
- Passive FTP port range control
- FTP bandwidth and connection control
- Unicode support
|
| Backup Server |
- Remote replication server (over Rsync)
- Real-Time Remote Replication to another QNAP NAS or FTP server
- Apple Time Machine support
- Windows Client Backup Application : QNAP NetBak replicator
- Third Party Backup Software Support : Acronis True Image, CA BrightStor, ARCserve, Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more
|
| Web Server |
- HTTP/HTTPS connections
- Supports WebDAV connection
- Support virtual host (max. : 32)
- Importable SSL certificate
|
| Database Server |
- Built-in MySQL server (v5.1.36)
- Web-based management via phpMyAdmin (QPKG)
|
| Print Server |
- Max Number of Printers : 3
- Supports Internet printing protocol
- Print job display and management
- IP- and domain name based privilege control
- Supports Apple Bonjour printing
|
| Syslog Server |
- Centralized log monitoring and archiving
- Immediate email alerts
- Supports log filtering
|
| RADIUS Server |
- Centralized account management and authentication for network access
- Supports 802.1x security authentication
- TFTP server with PXE booting (read-only)
|
| VPN Server |
- Secure Remote Access : PPTP and OpenVPN services
- Remote access to other resources on local network
- Max No. of Clients : 30
|
| iTunes Server |
- Audio and video sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV)
- Smart playlist for iTunes client (Windows and Mac OS)
|
| UPnP Media Server |
- Built-in TwonkyMedia server
- Real-time and background photo transcoding
- Supports UPnP media player such as PlayStation 3 and Xbox 360
- Supported format (The actual playback capabilities may vary depending on the UPnP client.)
- Audio : MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC
- Photo : JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP
- Video : WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB
- Playlist : M3U, M3U8, WPL, PLS
|
| Multimedia Station |
- Supports photo, audio and video
- Image slideshow and rotation
- Automatic and scheduled thumbnail generation for easy browsing
- Display Photo Details from EXIF : Date, exposure time, aperture and more
- Display Audio Details from ID3 Tag : Album cover, title, artist, album and more
- Access authority management
- Multimedia (video and audio) streaming
- Supports cooliris
- Supports web publishing (Facebook, MySpace, MSN Live, Twitter, Plurk and Blogger)
- Share photos by email
- Supported Formats :
- Photo – JPG/JPEG, GIF, PNG
- Audio – MP3
- Video
- Playback : FLV, MPEG-4 Video (H.264 + AAC)
- Transcode : AVI, M4V, MPG/MPEG, RM/RMVB, WMV
- QNAP Exclusive iPhone and Android App : QMobile
|
| Photo Station |
- Supported File Formats :
- Photo : JPG/JPEG, GIF, PNG, BMP
- Video : FLV, MPEG-4 Video (H.264 + AAC)
- Image slideshow with background music
- Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger)
- Photo sharing by email
|
| Music Station |
- Supported Audio Formats :
- MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC
- Local playback with USB speaker or sound card
- Browse other UPnP media servers on local network
- Internet radio (MP3)
- Music alarm (up to 8 Alarms)
- Playback control by QNAP Mobile App : QMobile music remote
|
| Download Station |
- PC-less BT, FTP, HTTP download (up to 500 tasks)
- BT Download
- Supports TCP/UDP tracker protocol
- Scheduled download
- Configurable port range
- Bandwidth control
- UPnP NAT port forwarding
- RSS subscription and download (broadcatching)
- Selectable download files
- HTTP/ FTP Download
- Configurable saving directory
- Bulk download with wildcard settings
- RapidShare download support
- QNAP Download Management Software : QGet
- For both Windows and Mac OS
- Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN
|
| Surveillance Station |
- Supports IP cameras (sold separately) for network surveillance
- Supports 1 Webcam via QPKG Add-on : QUSBCam
|
| Antivirus |
- Protection against the latest known viruses, trojans and other threats
- Free virus databases update on manual or scheduled basis
- Multiple scan tasks (max : 64, concurrent : 5) with custom folder selection and scheduled
- Scanning
- Email notification upon task completion or virus detection
- Quarantines or deletes infected files
|
| QPKG Center |
- Expands application services by easy online installation
- A wide variety of official and community QPKG* add-ons
- Business
- eyeOS
- GLPI
- Squid proxy server
- Vtiger CRM
- CMS
- Gallery
- Joomla
- WordPress
- Xoops
- Communications
- Download
- MLDonkey
- NZBGet
- pyLoad
- SABnzbdplus
- Transmission
- Entertainment
- IceStation
- Plex media server
- PS3 media server
- Squeezebox server
- Utilities
- AjaXplorer
- iStat
- Optware IPKG
- phpMyAdmin
- Piwik
- Miscellaneous
- Java runtime environment
- Mono
- Python
- QUSBCam
- Tomcat
|
| Packaging Info |
| Box Dimensions (LxWxH) |
24.5 x 26 x 7.2″ |
