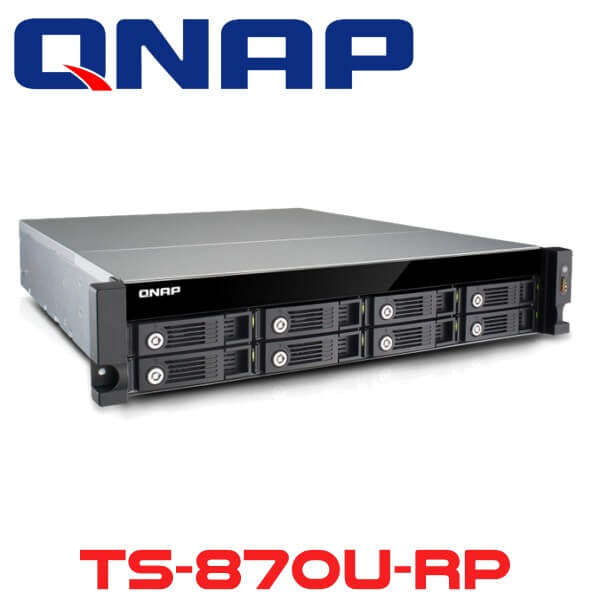

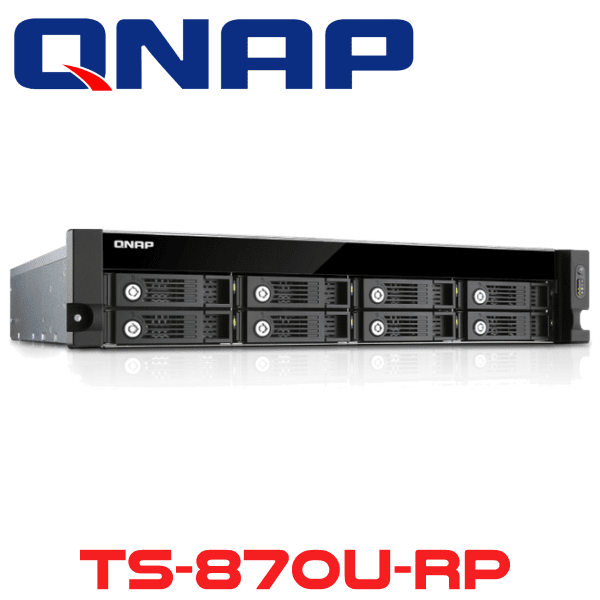

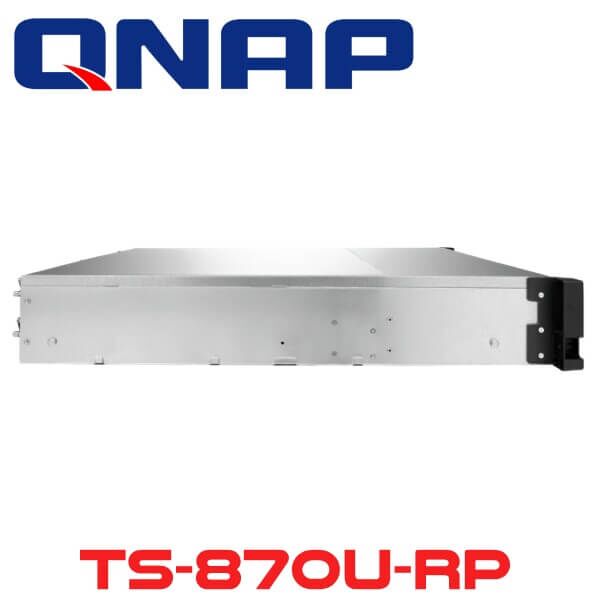

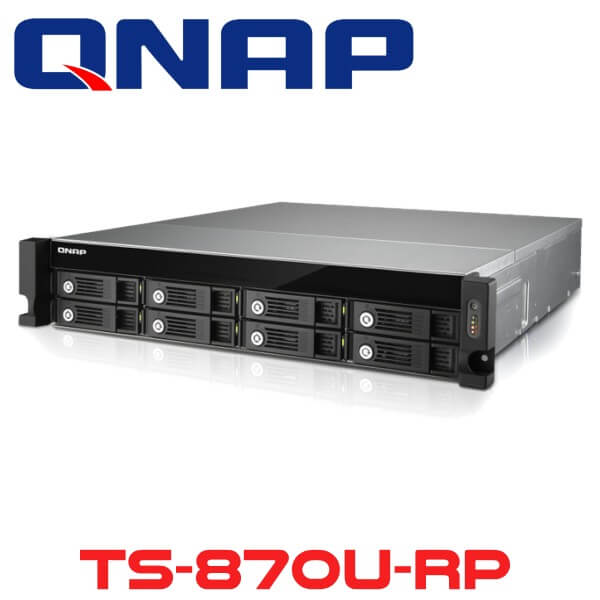

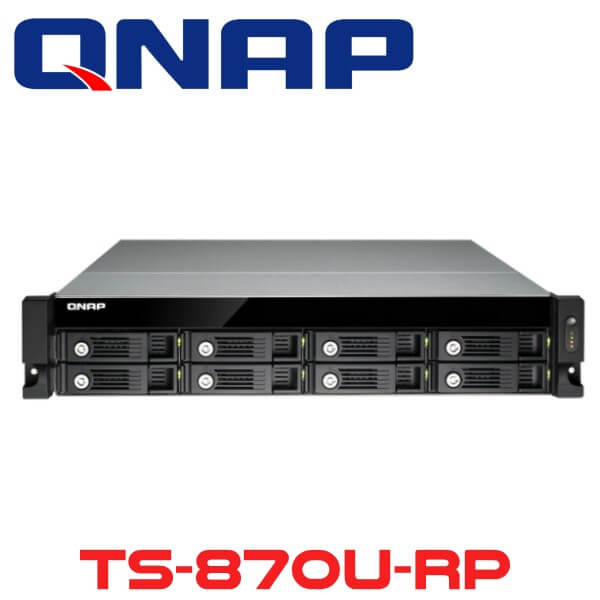

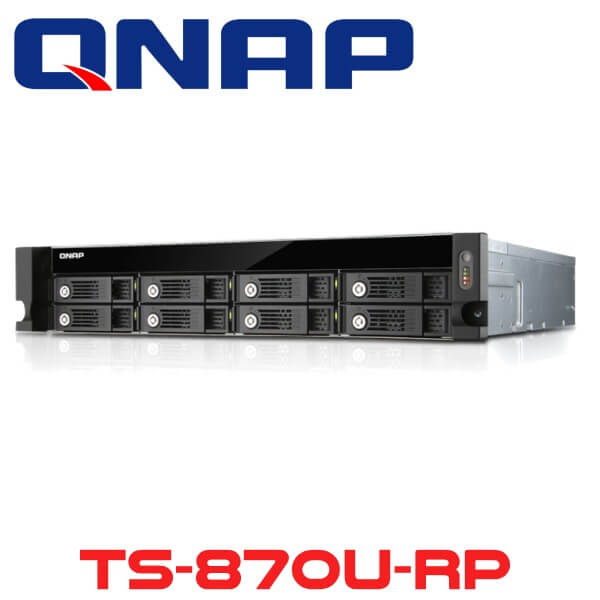

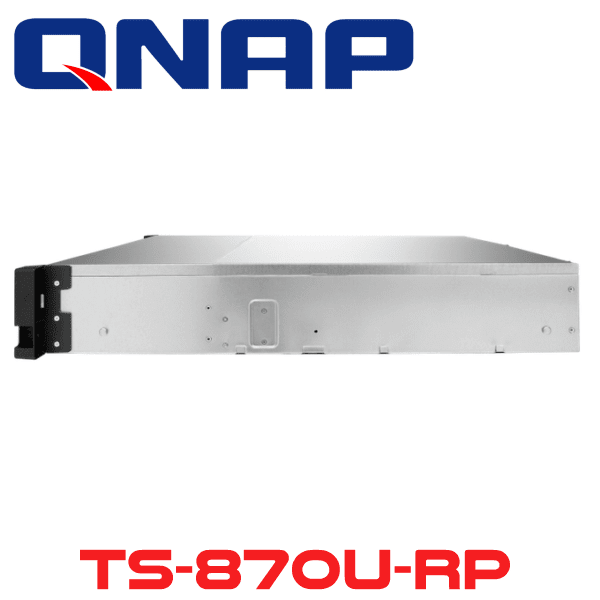

Qnap TS870U-RP NAS Server Oman

The Qnap TS870U-RP Oman is designed to provide IP SAN/NAS unified storage for large-scale business organizations that demand uncompromising high performance. Featuring a powerful Dual-core Intel® 2.4 GHz Processor, 4GB DDR3 RAM (expandable to 32GB), and the capacity to hold up to 8 hard drives, the TS-870U-RP greatly enhances efficiency of CPU-consuming tasks, powering large amount of concurrent tasks, and meeting the stringent requirements of data-hungry applications.

Features

Flexible 10GbE network expansion

The 10GbE-ready Qnap TS-870U-RP Oman includes 2 in-built Gigabit Ethernet ports, which can be expanded with additional 4 Gigabit Ethernet ports, or 4 10Gigabit Ethernet ports and delivers excellence performance with 1,000 MB/s throughput and 100,000 IOPS, improving the efficiency of virtualization applications via both NFS and iSCSI protocols. Coupled with the support for large storage capacity, the TS-870U-RP is a perfect choice for applications demanding high storage space and transmission speed such as data centers storing big data and for studios editing 4K/HD videos on-the-fly without transferring the videos between the TS-870U-RP and desktop computers

Comprehensive virtualization support

The Qnap TS870U-RP Oman is VMware® Ready™, Citrix® Ready™, compatible with Microsoft® Hyper-V™ certification and Windows Server 2012, and supports advanced functions including SPC-3, MPIO and MC/S, enabling flexible deployment and management for virtualization needs. The TS-870U-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading ESXi server loading, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider to provide enhanced operational efficiency in managing virtualization applications.

High Efficiency with Multiple LAN support

The Qnap TS-870U-RP Oman supports multiple port-trunking modes, enabling IT administrators to set up link aggregation to increase total data transmission capability. Failover is also supported to ensure continuous system operations. The supported port-trunking modes include : Balance-rr (Round-Robin), Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit Load Balancing) and Balance-alb (Adaptive Load Balancing).

Specifications

CPU	Dual-core Intel® 2.4 GHz Processor
DRAM	4 GB DDR3 RAM
Flash Memory	512MB DOM
Hard Drive	8 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD

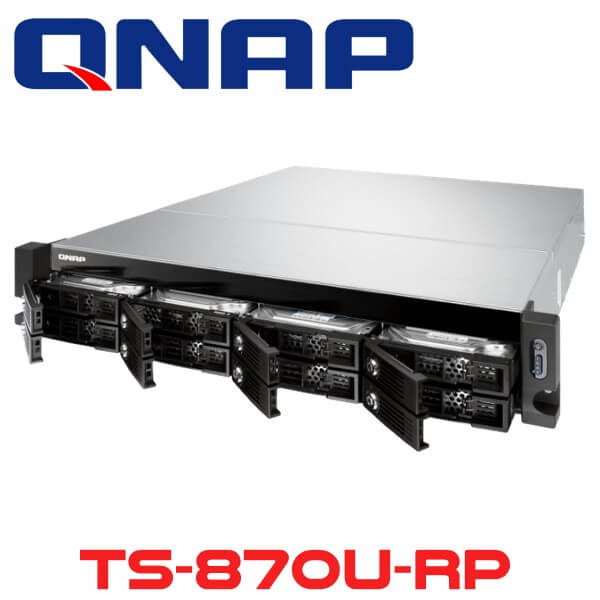

Hard Drive Tray	8 x hot-swappable and lockable tray

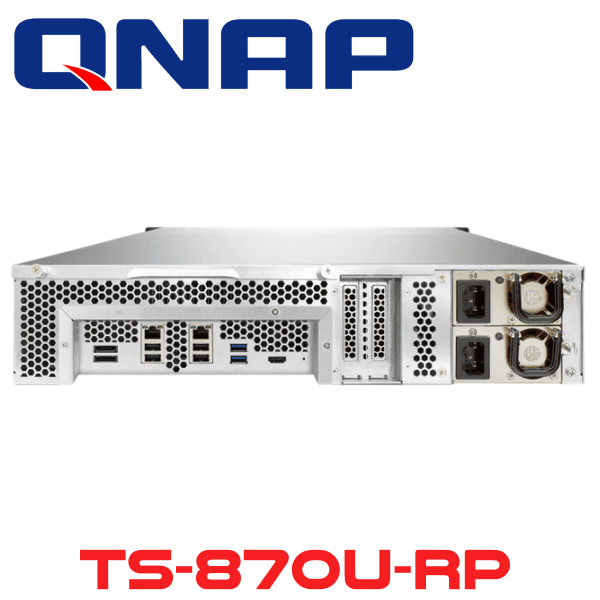

LAN Port	2 x Gigabit RJ-45 Ethernet port (Expandable up to 6 x 1 Gb LAN or 4 x 10 Gb + 2 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card)
LED Indicators	Status, 10 GbE, LAN, eSATA, hard drives
USB	2x USB 3.0 port (rear) 4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc.
eSATA	2 (rear)
Buttons	System : Power button and reset button
Alarm Buzzer	System warning
Form Factor	2U, Rackmount
Dimensions	89 (H) x 482 (W) x 534 (D) mm 3.50 (H) x 18.98 (W) x 21.02 (D) inch
Weight	9.9 kg/21.83 lb (Net) 12.74 kg/ 28.09 lb (Gross)
Sound Level (dB)	Standby : 45.8 dB In operation : 47.5 dB (with 8 x Hitachi HUA723020ALA640 MK7O installed)
Power Consumption (W)	Sleep mode : 74.7 W In Operation : 155.2 W (with 8 x Hitachi HUA723020ALA640 hard drive installed)
Temperature	0-40˚C
Relative Humidity	0~90%
Power Supply	Input : 100-240V AC, 47-63Hz Output : 300W
Expansion Slot	2 (for network and storage expansion)
Fan	2 x quiet cooling fan (7 cm, 12V DC)
