Description

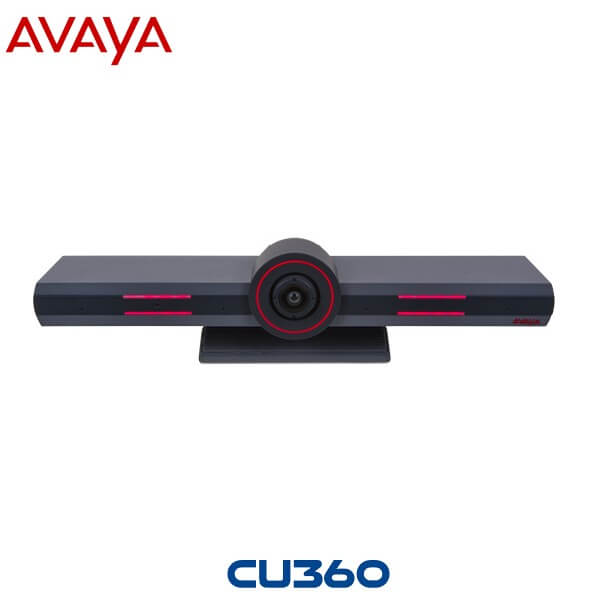

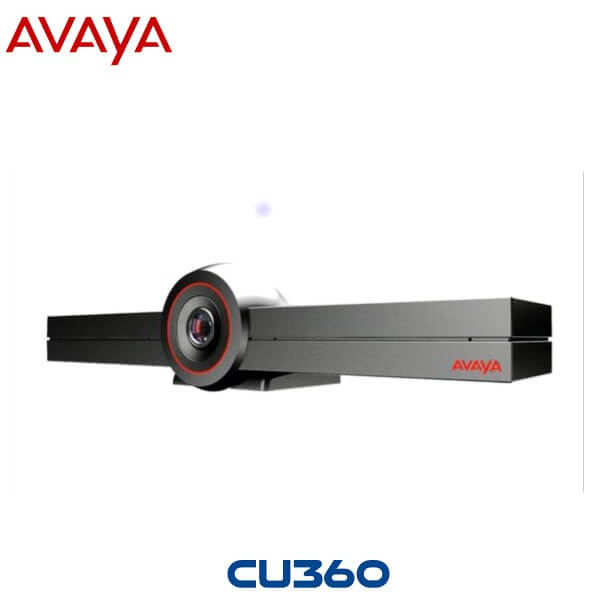

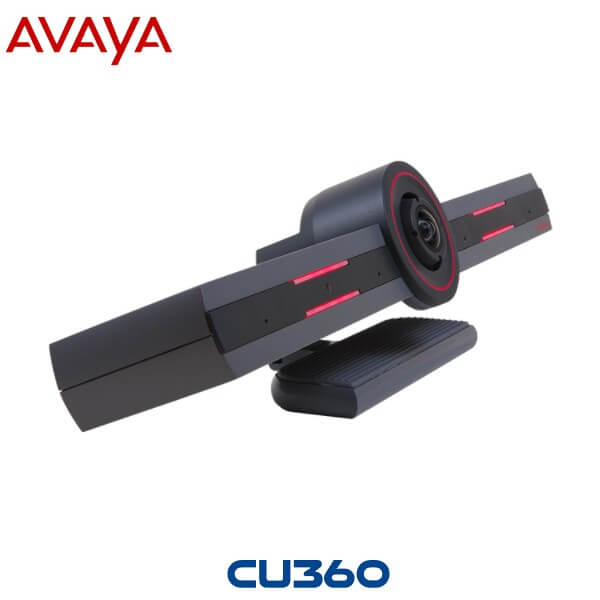

Avaya CU360 Collaboration Unit Oman

The Avaya CU360 Oman Collaboration Unit is designed for the cloud, and uses unique Avaya next generation technology to deliver all that the cloud has to offer to any business space. It is an ideal stand-alone solution to enable individual workgroups or small to midsize businesses, and it can also be used as an integrated video endpoint to expand your existing collaboration infrastructure.

Avaya CU360 Oman provides the ultimate in simplicity of setup and use, integrates with your existing UC platform, integrates with any existing standards-based video infrastructure, and allows you to access and use cloud-based applications. It is all you need to turn any space including huddle spaces or huddle rooms into a cloud-enabled collaboration room.

The Avaya CU360 Oman Collaboration Unit can be set up in minutes, and its all-in-one design purpose-built for video collaboration delivers crystal clear audio and video every time does not depend on the quality or performance of a separate laptop or PC. This simplicity and performance will encourage employees to use video for their meetings instead of just audio, adding a personal connection to training, brainstorming, and other team meetings and customer interactions.

Features

Delivers Affordable Enterprise Collaboration

The Avaya CU360 Oman Avaya Collaboration Unit represents a breakthrough in delivering capabilities typically included in costly Enterprise room conferencing systems at a price that works great for huddle space transformation. The device contains state-of-the art capabilities, including full HD 1080p video, a 4K camera sensor, and 4K display support.

Smart Collaboration

Share content and applications wirelessly, using your smart mobile device. H.239 and BFCP offers content interoperability with nearly any video room system. Avaya Spaces®, Avaya Workplace and Avaya Cloud Office® Rooms delivers the ultimate collaboration experience with lightning fast screen response and lower bandwidth requirements.

Next Generation Cloud Capabilities

The Avaya Collaboration Unit can access and run cloud-based Android applications (Android is a trademark of Google LLC) and gives you your choice of cloud-based collaboration tools. It is also fully integrated with Avaya Spaces®, the cloud-based team collaboration and meeting tool that allows users to chat, have audio and video conferencing, share files, manage tasks in an easy to use application that you can access from anywhere.

Easy to Use & Setup

With only two or three cables need to be connected—depending on whether you are using Ethernet or Wi-Fi—installation is a snap. The Avaya CU360 Oman features all-in-one device that rests on top of any display, and the integrated video codec, microphones and Bluetooth connectivity means there are no cables on the table. Its remote control includes a full keyboard to further simplify setup and use.

Specifications

Communications

• IP : H.323, SIP (RFC 3261)
• Bit rate : H.323, SIP : up to 4Mbps
• MCU compatibility : H.243, H.231 XMPP Presence Server support

Video Features

• 2 simultaneous channels : camera + content

Video Protocols

• 264, H.264 High Profile, SVC (Scalable Video Coding), H.263 + is supported with resolutions up to 4CIF @ 15fps. Only RFC2429 is supported. User-defined formats and attachments are not supported. Dual : H.239 (H.323); BFCP (SIP)

Live-Video

• 1920 x 1080p at 25, 30fps
• 1280 x 720p at 25, 30fps
• 1024 x 576p at 25, 30fps : w576p
• 848 x 480p at 25, 30fps : w480p
• 768 x 448p at 25, 30fps : w448p
• 704 x 576p at 25, 30fps : 4CIF
• 704 x 480p at 25, 30fps : 4SIF
• 624 x 352p at 25, 30fps : w352p
• 576 x 336p at 25, 30fps
• 512 x 288p at 25, 30fps : wCIF
• 416 x 240p at 25, 30fps : w240p
• 400 x 224p at 25, 30fps
• 352 x 288p at 25, 30fps : CIF
• 352 x 240p at 25, 30fps : SIF

Camera

• Sensor : 4kp30
• Video resolution : 1080p30
• Horizontal Field of View : 102°
• Vertical Field of View : 68°
• Digital zoom : 5x
• Preset up to 122 presets (web) – up to 10 presets (GUI)
• Tracking Modes : Speaker Tracking (also for third-party apps) and Auto-Framing
• Background removal (replace/blur)

Video Input

• Live video from built in camera up to 1920 x 1080 at 30fps
• Live video from additional IP RTSP Camera (including native PTZ) up to 1080p30
• Live video from additional USB cameras supported on USB A (including native PTZ), up to 720p30 resolution

Video Output

• 1x HDMI at 3840 x 2160 at 25, 30fps; 1920 x 1080 at 25, 30fps; 1280 x 720 at 25, 30fps
• 1xHDMI via USB type C self-powered adapter 1920 x 1080 at 25, 30fps; 1280 x 720 at 25, 30fps

Audio Features

• Acoustic echo cancellation
• Audio error concealment
• Automatic Gain Control (AGC)
• Automatic noise suppression

Audio Protocols

• 711
• 719
• 728 and G.729 A/B G.722,
• 722.1, G.722.1 Annex C
• Opus

Microphone

• Microphone array (4mics)

Audio Inputs

• Bluetooth
• Mini-Jack Line-in and HDMI via the optional A/V grabber accessory
• USB Speaker-phone or headsets

Audio Outputs

• 1 x HDMI
• Bluetooth
• USB Speaker-phone or headset

Content Sharing / Web Collaboration Features

• Wireless presentation with Avaya Screen Link or Wi-Fi
• Display (Miracast), up to 1080p at 15 fps
• Present content using Android Apps and USB key
• Share content up to 1080p15fps through HDMI using the optional AV grabber connected to the USB port (device included in the Optional Cable Kit, not part of the default CU360 box)
• Supported laptop resolutions are as follows : 1920 x 1080 at 30, 50, 60fps 1680 x 1050 at 60fps 1280 x 1024 at 60fps 1280 x 720 at 50, 60fps 1024 x 768 at 60fps 800 x 600 at 60fps
