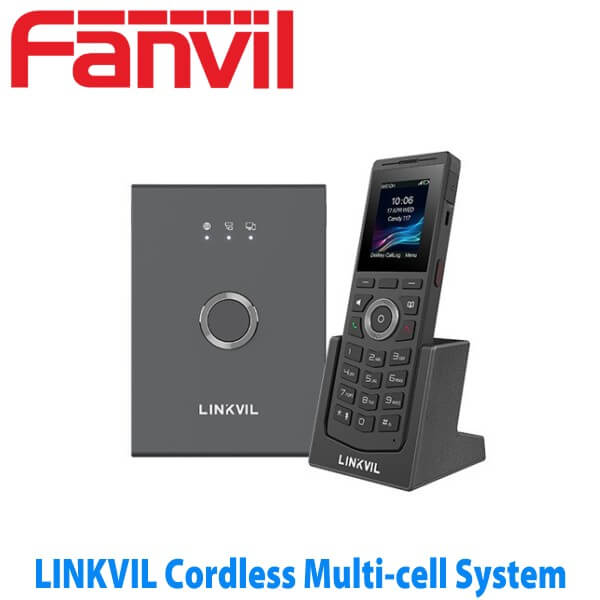

Fanvil LINKVIL Cordless Multi-cell System Oman

The Fanvil LINKVIL Cordless Multi-cell System Oman is a robust and scalable wireless communication platform tailored for large-scale enterprise environments. Engineered for wide-area coverage, it incorporates the W710H Manager unit, supporting up to 20 base stations and connecting as many as 300 W610H cordless handsets. Designed to handle up to 200 concurrent calls and manage 300 SIP accounts across various SIP servers, it is ideal for fast-paced sectors such as corporate campuses, healthcare institutions, retail complexes, and industrial zones. The W710H base station allows both single-cell and multi-cell configurations, offering seamless call transfers and uninterrupted roaming. It delivers coverage of up to 100 meters indoors and 700 meters outdoors (based on U.S. benchmarks). The system supports XML/LDAP/remote phonebook access, stores up to 20,000 call records, and offers convenient auto-provisioning through FTP, TFTP, HTTP, and TR-069. It also includes advanced networking features such as IPv6 support, VLAN tagging, and integrated VPN capabilities.

Accompanying the base station, the W610H cordless handset features a vibrant 2.0-inch 240×320 color screen, Bluetooth 5.0 connectivity, a 3.5mm headset jack, and a powerful 1900mAh battery providing up to 8 hours of talk time and 160 hours of standby. Designed for durability and performance, it supports HD audio, multiple voice codecs like Opus, G.722, and G.729, programmable DSS keys, a PTT (push-to-talk) button, and a multilingual user interface. With a drop resistance rating of up to 1.8 meters, the handset is built for demanding use cases. Both the base station and handset are internationally certified with CE, FCC, UKCA, and RoHS standards, ensuring reliability and global compliance. The Fanvil LINKVIL Cordless Multi-cell System Oman system is engineered for smooth roaming between base stations and is equipped with powerful security and encryption technologies such as WPA2-PSK and SRTP, making it a professional-grade, future-proof solution for dynamic enterprise communication environments.

Product Highlights:

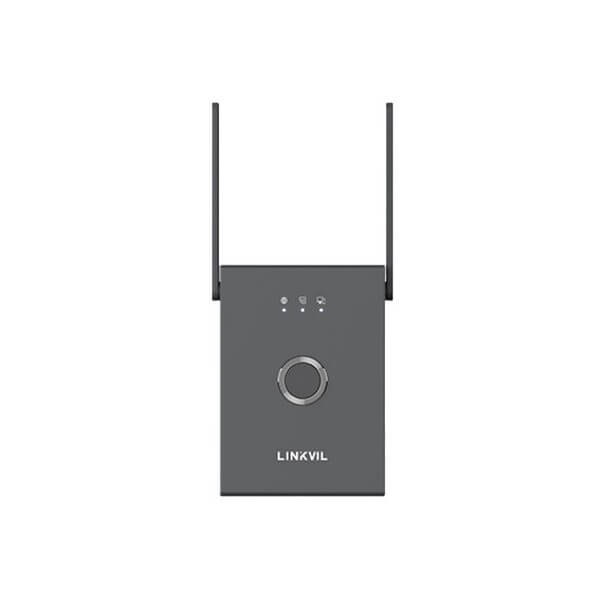

W710H Base Station (Multi‑cell System)

• Supports both single-cell and multi-cell modes via W710H Manager
• Multi-cell supports:
  • Up to 20 base stations
  • Up to 300 terminals (handsets)
  • Up to 200 simultaneous calls
  • Up to 300 SIP accounts/extensions
• Roaming coverage:
  • Indoor: up to 100 m
  • Outdoor: up to 700 m
• Supports XML/LDAP/Remote phonebook (up to 1,000 contacts per terminal), call logs (20,000 entries)
• Wireless encryption: WPA2‑PSK
• Network protocols: IPv4/6, VLAN, 802.1x, VPN, LLDP, CDP, etc.
• Deployment tools: auto-provision via FTP/TFTP/HTTP/SIP‑PnP/TR‑069; web management interface
• Hardware:
  • 10/100 Mbps Ethernet, PoE support
  • Operating –10 °C to +45 °C, storage –20 °C to +60 °C
  • Certifications: CE, FCC, RoHS, etc.

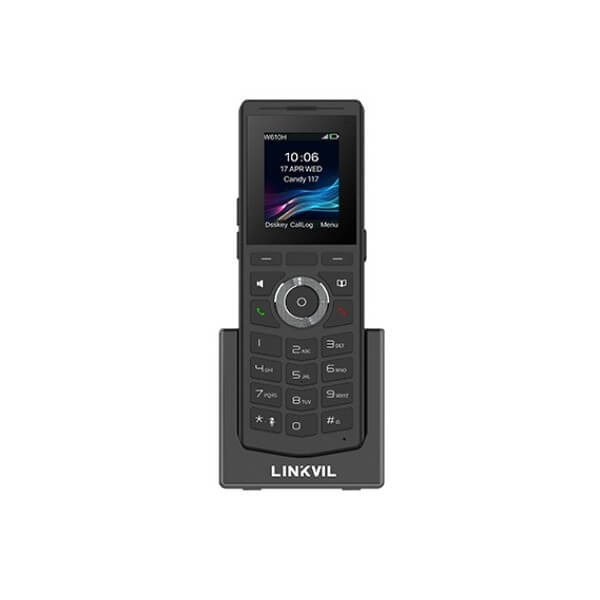

W610H Handset

• 2.0″ 240 × 320 color screen
• Bluetooth 5.0 for headsets + 3.5 mm jack
• 1,900 mAh rechargeable battery
  • Up to 8 hours talk, 160 hours standby
• HD voice, noise reduction, incoming vibration
• Supports:
  • 4 SIP lines, 1 internal extension
  • 16 programmable DSS keys, 1 PTT button
• Codec support: G.711, G.729 variants, iLBC, G.722, Opus
• Networking/protocols: 802.11ah (Wi‑Fi), WPA2‑PSK, SRTP, STUN, DHCP, HTTP/S, etc.
• Physical:
  • Drop tested to 1.8 m
  • Size: 156 × 53 × 17.7 mm; weight: 145 g
• Misc:
  • Supports 1,000 contacts, 600 call logs, SMS, voicemail, speed dial, DND, intercom, 3‑way conference
  • Multi-language UI
  • Certifications: CE/FCC/UKCA, RoHS, etc.
