Fanvil W611W Oman



Fanvil W611W Oman

The Fanvil W611W Oman integrates Wi-Fi 6, bringing a superb wireless communication experience. Moreover, it integrates Bluetooth 5.0 for pairing with headsets and mobile devices.

Category:

Description

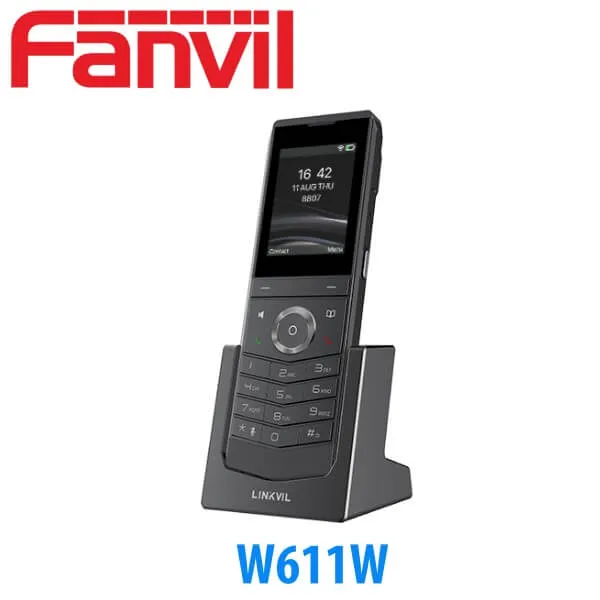

Fanvil W611W Wi-Fi Phone Oman

The Fanvil W611W Oman is a highly waterproof, dustproof, IP67-Certified Wi-Fi phone which has been designed for mobile communication applications. It integrates Wi-Fi 6, bringing a superb wireless communication experience. Moreover, it integrates Bluetooth 5.0 for pairing with headsets and mobile devices. The W611W Oman can be dropped safely from a 1.8-meter height. It has excellent performance in different environments with humidity and dust.

Installed with a rechargeable 1900mAh battery, the Fanvil W611W Oman is ready for 9 hours’ talk time or 200 hours standby time. The W611W is widely used in various wireless scenarios such as enterprises, shopping malls, residential areas, hotels and warehouses, providing users with high-quality mobile communication experience.

fanvil w611w muscat

fanvil w611w muscat

Features

  •  2.4″ 240 x 320 colour screen with intuitive user interface
  • High protection level of IP67
  • Dual-band Wi-Fi 802.11 a/b/g/n/ac/ax Wi-Fi (Wi-Fi 6, 2.4GHz & 5GHz)
  • IEEE802.11k/v/r roaming
  • WPA / WPA2-PSK and 802.1X EAP encryption to ensure communications security
  • Push-to-talk (PTT) button for quick dial
  • Up to 9 hours’ talk time and up to 200 hours standby time

Technical Specifications

Generic

  • 2.4-inch 240*320 color high-definition LCD display
  • 4 SIP lines
  • Caller ID
  • Handset/Hands-free/Headset Mode• Support custom DSS keys
  • HD Voice
  • Belt clip
  • Desktop charging base
  • Standard type-c interface
  • Rechargeable Lithium Battery
  • Support Wi-Fi 6
  • Support Bluetooth 5.0
  • Support multi language : English/Chinese/German/French/Italian/Portuguese/Russian/Spanish

Phone Features

  • Network time synchronization
  • Local contacts
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Multi-language optional
  • Call logs
  • Blocked List/Allowed List
  • Screen saver
  • Personalized ringtone settings
  • Screen backlight adjustment
  • Memorandum
  • SMS service
  • Voicemail(MWI)
  • Menu encryption settings
  • Keypad lock/ backlight adjustment
  • Volume adjustment

Call Features

  • Auto-Answering
  • Call out/Answer/Reject
  • Call waiting/Switch
  • Call forwarding
  • Speed Dial
  • Intercom
  • Anonymous calls
  • 3-way Conference
  • Restrict outgoing calls
  • IP direct dial
  • Speed Dial
  • Emergency call
  • Caller ID Display
  • Inquiry (dialing, incoming and outgoing calls)
  • Do-Not-Disturb
  • PTT one-key call
  • Self-adaptive light-sensing screen off (during a call on the handset)

Audio

  • Narrowband Codec : G.711a/u, G.729AB,iLBC
  • Wideband Codec : G.722, Opus
  • Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
  • Voice Activity Detection(VAD)/ Comfort Noise Generation(CNG)/ Background Noise Estimation (BNE)
  • Packet Loss Concealment
  • Dynamic adaptive jitter cache up to 300ms
  • DTMF : In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIPINFO

Network

  • Built-in Wi-Fi, support 802.11 a/b/g/n/ac/ax protocol : 2.4GHz IEEE 802.11 b/g/n/ax 5GHz IEEE 802.11a/n/ac/ax Encryption:WPA /WPA2-PSK,802.1XEAP
  • Built-in Bluetooth 5.0 module

Power Management

  • Reminder when charging
  • Full reminder
  • Low battery prompt
  • After abnormal shutdown, the charging will automaticallystar
  • Real-time statistics/display of system power

Protocols

  • RTP/RTCP/SRTP
  • STUN
  • HCP
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
fanvil w611w oman

fanvil w611w oman

Deployment and Maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIPPnP/TR-069
  • Web management interface
  • Web-based Packet-dump
  • Configuration export/import
  • Firmware upgrade
  • Syslog

Physical Specifications

  • Protection class : IP67
  • Drop height : 1.8m
  • Shell material : plastic shell, two-color injection molding
  • Charging Base x1
  • Belt Clip x1
  • Rechargeable Battery x1 1900mAh
  • DC input : 5V/2A
  • Charging port : Type-c
  • Headphone jack : 3.5mm standard jack
  • Installation method : Belt Clip /Desktop
  • Operating temperature : 0℃~ 45℃
  • Storage temperature : -20℃~ 60℃
  • Relative humidity : 10~95%
  • Product size : 160*53*16mm
  • Product weight: : 156g
  • Certificates:CE/FCC/UKCA/RoHS/SRRC
  • Box size : 200*117*103mm
  • Outer box size : 437*254*220mm ((8PCS)
