Description

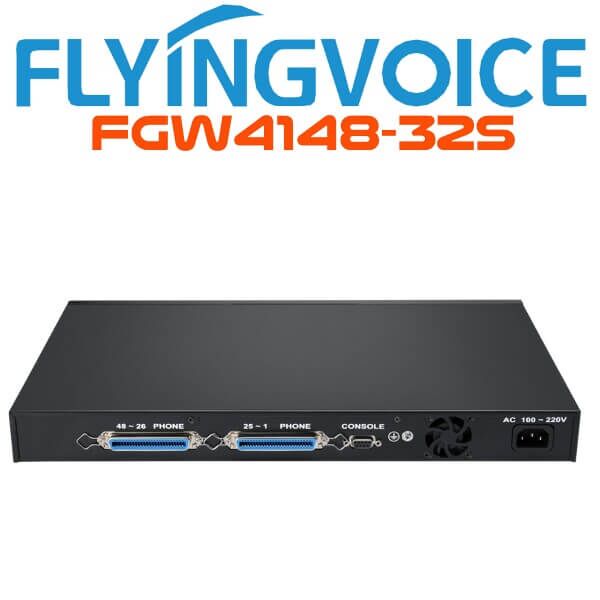

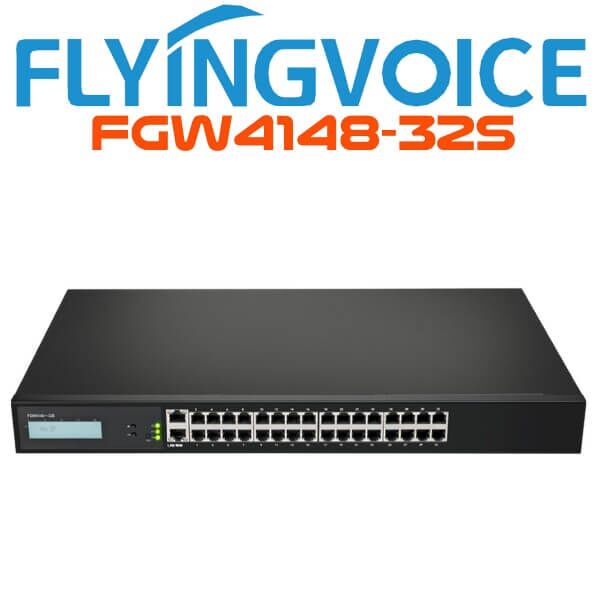

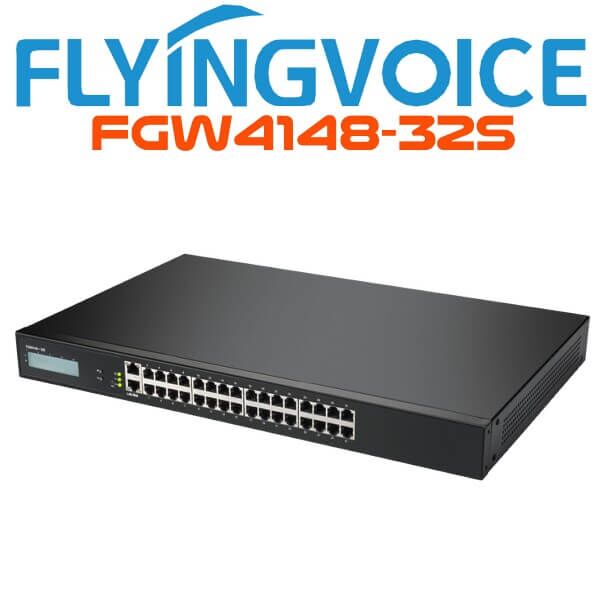

Flyingvoice FGW4148-32S FXS VoIP Gateway Oman

The Flyingvoice FGW4148-32S Oman VoIP Gateway is a popular gateway designed and manufactured by Flyingvoice. It features 32 FXS ports, one LAN port, and one WAN port. This product not only allows users to make calls with 32 SIP lines, but it also functions as a wire-speed NAT router, providing a seamless network environment. Additionally, the FGW4148-32S supports T.38 real-time FAX and T.30 FAX with G.711. The Flyingvoice FGW4148-32S Oman VoIP FXS Gateway is a standalone device that does not require a PC to make internet calls. This gateway ensures clear and reliable voice quality over the internet and is fully compatible with the SIP industry standard. It can also work with various other SIP devices and software available in the market. Flyingvoice offers a range of products, including the FGW4148-32S VoIP Gateway, which allows customers to register with different SIP Proxy servers and IP PBXs. This flexibility enables users to establish multiple concurrent VoIP connections, enhancing communication capabilities. With excellent voice quality, extensive features, and a competitive price-performance ratio, Flyingvoice FGW4148-32S Oman VoIP Gateway empowers consumers to fully utilize IP voice and data connectivity.

Features :

• 10/100/1000Mbps Ethernet
• 32 FXS Port
• Auto-provisioning- TFTP/HTTP/HTTPS
• Supports T.38 and T.30 Real-time Fax (G.711)

Flyingvoice FGW4148-32S FXS VoIP Gateway Specifications :

VoIP SoC :  CPU : MT7621A

Flash :  32MB Flash

RAM :  256MB SDRAM

Operating System :  Linux 2.6.36

Power

• AC/DC Adapter
• AC Input : 100~240V, 50~60Hz

I/O Interfaces

• 1 RJ-45 for WAN port (Ethernet 1000 Base-T)
• 1 RJ-45 for LAN port (Ethernet 1000 Base-T)
• 32 RJ-11 for FXS ports

Environmental

• Operation Temperature : 0~50 Degree C
• Storage Temperature : -25~ 85 Degree C
• Relative Humidity : 10%~90% No Condensing

Audio Codec

• G.711(A/u),PESQ>4.3
• G.729AB,PESQ>3.7
• Adaptive Jitter Buffer Management
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation
• T.30 FAX with G.711
• Real time FAX over IP via T.38

Management

• Firmware Upgradeable
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi-User Level
• SNMPv2
• TR069
• Support Flying FCMS Cloud Management

Protocols

• SIP V2 (RFC 3261,3262,3263,3264)
• Backward Compatible with RFC2543
• Session Timer (RFC4028)
• SDP (RFC2327)
• RTP/RTCP (RFC1889 and RFC1890)
• NAPTR for SIP URI Lookup (RFC2915)
• STUN (RFC 3489)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• PPTP/L2TP VPN/ OpenVPN
• HTTP Server for Web Management
• TFTP/HTTP/HTTPS for Auto Provisioning
• DNS/DNS SRV (RFC1706 and RFC 2782)
• FGW4148 Specification

Applications

• NAT/NAPT Router function
• MAC Address Cloning
• DHCP Server
• PPTP/L2TP VPN
• PPPoE
• SIP proxy redundancy
• Dynamic via DNS SRV, A records
• NAT Traversal by STUN
• DMZ
• QoS with Layer 3
• DHCP Client and DHCP Server
• IP conflict detection

Call Features

• 3-Way Conference
• Music on hold
• DTMF mode : In-band, RFC2833 and SIP INFO
• Call Hold
• Call Forwarding
• Call Mute
• Call Transfer
• Call Waiting
• Speed Dial
• Caller ID and CWCID
• Hotline
• Dial Plan
• Black List
• Call Log
