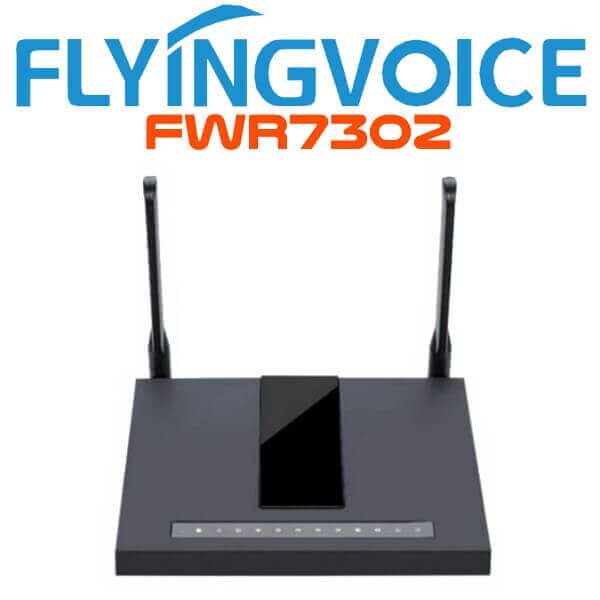

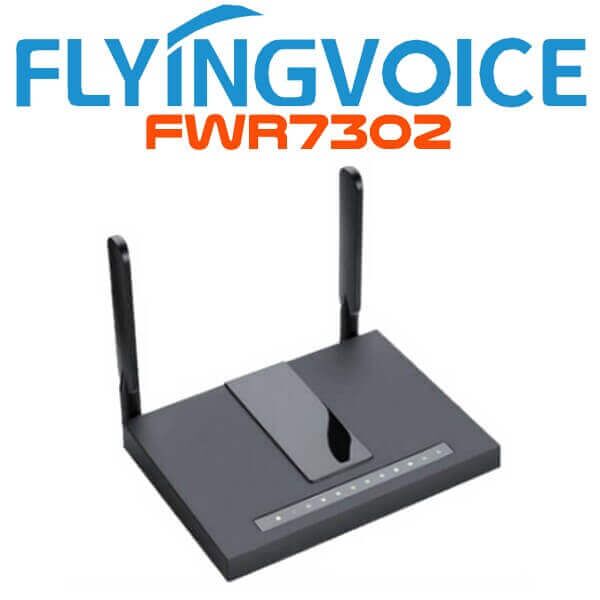

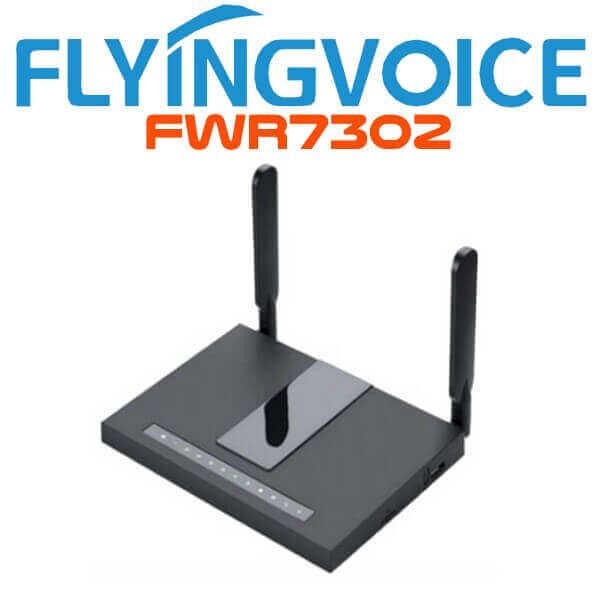

Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router Oman

Flyingvoice FWR7302 Oman 4G-LTE Dual-Band VoIP Router Oman includes extended functions that support SFP port, USB port, and a couple of FXS ports. This design not only provides users with standard VoIP and routing capabilities. Users may also take Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router as an FTP server to share LAN files, pictures, and other resources. Meanwhile, SFP for internet access, 2 FXS ports can be well adapted to small and micro enterprises,1FXS for telephone, 1FXS for Fax, no must add additional equipment. Flyingvoice FWR7302 4G-LTE Dual-Band VoIP Router is ideally fitted to small and medium enterprises (SMB) to create a wireless office. Flyingvoice FWR7302 Oman supports IEEE802.11ac gigabit wireless LAN standard, the best wireless speed is up to 867Mbps and it supports both 2.4GHz and 5GHz bands. For VoIP users, 5G band can ensure less interference and also the transmission quality. The more, users can enjoy greater bandwidth and enhanced data throughput.

Flyingvoice FWR7302 Wireless VoIP Router Features :

• Support QoS
• 10/100/1000Mbps Ethernet
• 1 Combo SFP port
• Support 2.4GHz&5GHz Wi-Fi
• Real-time IP fax, T.38 and T.30

Flyingvoice FWR7302 Wireless VoIP Router Specifications :

VoIP SoC

• CPU : MIPS Single-core 600MHz

Flash

• 16MB Flash

RAM

• 128MB DDR2 RAM

Power

• AC/DC Adapter
• AC Input : 100~240V, 50~60Hz
• DC Output : 12V, 2A

Operating System

• Linux 2.6.36

I/O Interfaces

• 1 RJ-45 for WAN Port (Ethernet 1000 Base-T)
• 4 RJ-45 for LAN Port (Ethernet 1000 Base-T)
• 2 RJ-11 for FXS Port
• 1 USB 2.0 Host Ports
• 1 Combo SFP port
• 1 SIM card port

Environmental

• Operation Temperature : 0~50 Degree C
• Storage Temperature : -25~ 85 Degree C
• Relative Humidity : 10%~90% No Condensing

Audio Codec

• G.711(A/u),PESQ>4.3
• G.729AB,PESQ>3.7
• Adaptive Jitter Buffer Management
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation
• T.30 FAX with G.711
• Real time FAX over IP via T.38

LTE Features

• Four-Band TDD-LTE B38/B39/B40/B41
• Three-Band FDD-LTE B1/B3/B8
• Dual-Band TD-SCDMA B34/B39
• Dual-Band UMTS/HSDPA/HSPA+ B1/B8
• GSM/GPRS/EDGE 900/1800 MHz
• Uplink up to 50Mbps
• Downlink up to 100Mbps
• 2G/3GFallback

Management

• Firmware Upgrade
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi User Level
• SNMP v2
• Telnet
• TR069
• System Log : local log and remote log

Feature keys

• Support 1000Mbps HNAT
• 2T2R 2.4G 802.11 b/g/n(300 Mbps)
• 2T2R 5G 802.11ac (867Mbps)
• Support VoIP FXS port with SIP and T.38 FAX
• External Antenna for LTE and Wifi

SPF feature

• Speed : GE
• Interface type : LC
• Module spec : Single Module
• Core : Double core& single core

Protocols

• SIP V2.0 (RFC 3261, 3262, 3263, 3264)
• SDP (RFC2327)
• RTP/RTCP (RFC823/903)
• NAPTR for SIP URI lookup (RFC2915)
• STUN (RFC2030)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• HTTP Server for Web Management
• TFTP/HTTP for Auto Provisioning
• Message Waiting Indicator (RFC3842)
• DHCP Option Codes for SIP (RFC3361)
• DNS/DNS SRV (RFC1706 and RFC 2782)
• IEEE802.1Q VLAN/802.1p and IP DSCP

Applications

• Support LTE(just for FWR7302)
• Support NAT mode and Bridge mode
• Support DDNS
• MAC address cloning
• SIP proxy redundancy
• NAT Traversal by STUN
• Built-in Wired speed NAT Router
• DHCP Server and Client
• IP conflict detection
• Port Forwarding, DMZ, SuperDMZ
• 802.1Q VLAN/802.1p, DSCP, Rate Limiting
• VPN(PPTP,L2TP, IPSec) Passthrough
• SNTP
• IGMPv2
• Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)

Wireless

• 802.11 b/g/n support
• 4 SSID
• Static WEP(64/128bit)
• Dynamic WEP(64/128bit)
• AES(CCMP/TKIP)
• MAC certification
• WEP certification
• WPA-PAK/WPA-PSK(2.0)
• WPA/WPA2
• AP Isolation and MBSSID AP Isolation
• WMM
• WDS
• WPS
• Station list
• Radius certification and billing
• MAC Filter(different from wired MAC Filter)

Call Features

• 3-way conference
• Call hold
• Call forwarding
• Call Transfer
• Call waiting
• Caller ID and CWCID
• DTMF Relay : In-band, Out-band and SIP INFO
• QoS Layer 3
• Call Log
• CID/CWCID
• Dial Plan
• DTMF Mode : Inband, RFC2833 and SIP Info

Regulatory

• FCC Part 15 Class B approval
• CE certification
• RoHS compliance

SIZE And Weight

• 188mm(L)x155mm(W)x29mm(H)
• 331g(N.W)
