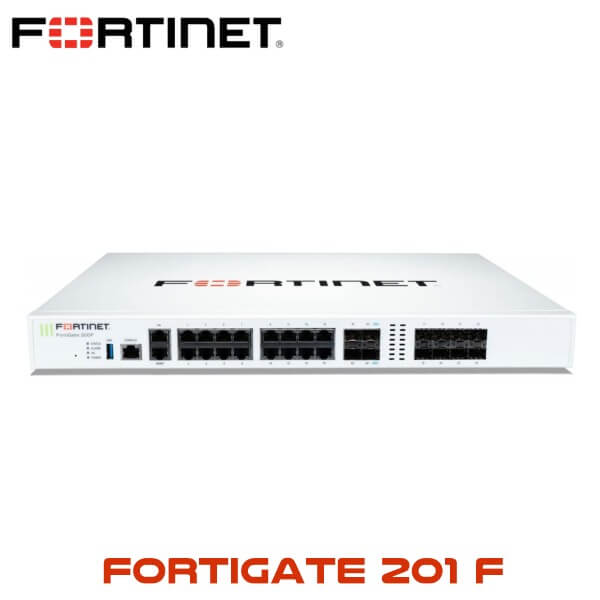

Fortigate 201F Firewall Oman
The Fortigate 201F Oman NGFW utilizes AI-powered security and machine learning to provide Threat Protection at any size. Gain enhanced visibility into your network and detect applications, users, and devices before they pose a threat. With a comprehensive range of AI/ML security features that integrate into a unified security fabric platform, the Fortigate 201F Oman ensures secure networking that is extensive, profound, and automated. Safeguard your network from end to end with advanced edge protection, encompassing web, content, and device security. Additionally, simplify and mitigate risks in hybrid IT networks through network segmentation and secure SD-WAN. Universal ZTNA offers automated control, verification, and facilitation of user access to applications, effectively reducing lateral threats by granting access solely to authorized users. Furthermore, benefit from ultra-fast Threat Protection and SSL Inspection using Fortigate 201F Oman, which ensures visible edge security without compromising performance.
Fortigate 201F Highlights
- Gartner Magic Quadrant Leader for both Network Firewalls and WAN Edge Infrastructure.
- Security-Driven Networking FortiOS delivers converged networking and security.
- State-of-the-Art Unparalleled Performance with Fortinet’s patented / SPU / vSPU processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Deep Visibility into applications, users, and devices beyond traditional firewall techniques.
Hardware Features
Trusted Platform Module (TPM)
The Fortigate 201F Oman features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Dual Power Supplies

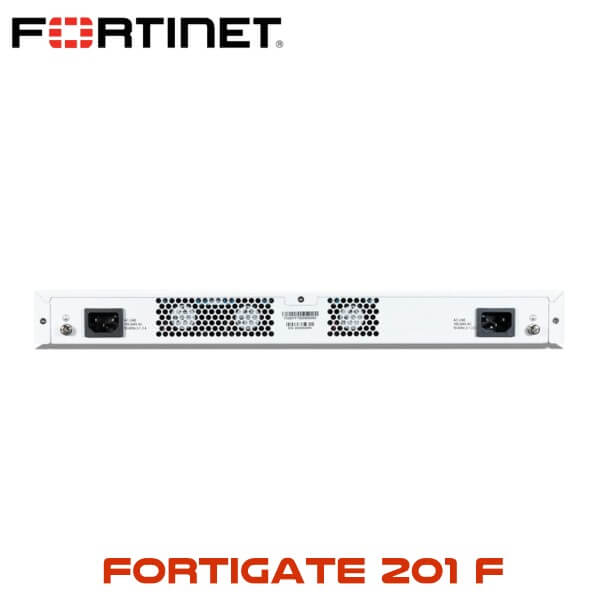

Power supply redundancy is essential in the operation of mission-critical networks. The Fortigate 201F Oman offers dual built-in non-hot swappable power supplies.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
Interfaces and Modules | |
GE RJ45 Ports | 16 |
GE RJ45 Management / HA | 1 / 1 |
GE SFP Slots | 8 |
10 GE SFP+ FortiLink Slots (default) | 2 |
10 GE SFP+ Slots | 2 |
USB Port | 1 |
Console Port | 1 |
Onboard Storage | 1x 480 GB SSD |
Trusted Platform Module (TPM) | Yes |
Bluetooth Low Energy (BLE) | Yes |
Included Transceivers | 0 |
System Performance — Enterprise Traffic Mix | |
IPS Throughput 2 | 5 Gbps |
NGFW Throughput 2, 4 | 3.5 Gbps |
Threat Protection Throughput 2, 5 | 3 Gbps |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 27 / 27 / 11 Gbps |
Firewall Latency (64 byte, UDP) | 4.78 μs |
Firewall Throughput (Packet per Second) | 16.5 Mpps |
Concurrent Sessions (TCP) | 3 Million |
New Sessions/Second (TCP) | 280 000 |
Firewall Policies | 10 000 |
IPsec VPN Throughput (512 byte) 1 | 13 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
Client-to-Gateway IPsec VPN Tunnels | 16 000 |
SSL-VPN Throughput | 2 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 4 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) 3 | 3500 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 300 000 |
Application Control Throughput (HTTP 64K) 2 | 13 Gbps |
CAPWAP Throughput (HTTP 64K) | 20 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 64 |
