Description

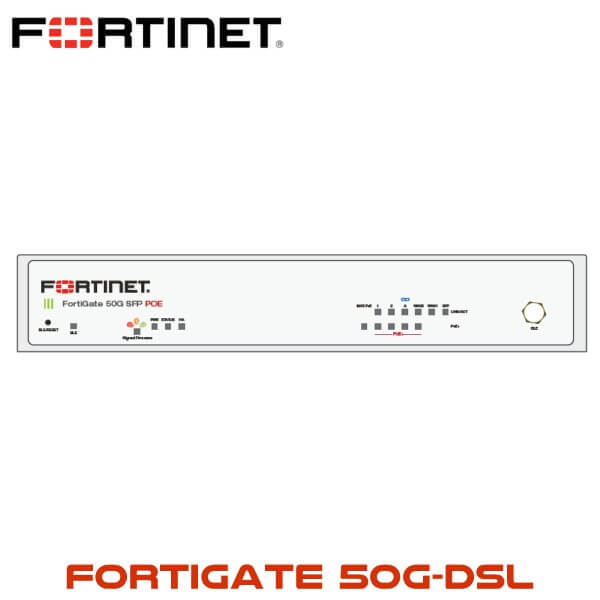

Fortigate50G DSL Firewall Oman
The Fortigate50G DSL Oman is meticulously engineered to establish security-driven networks within distributed enterprise environments, facilitating the transformation of WAN architectures across varying scales. This device is equipped with an extensive array of AI and machine learning-based FortiGuard security services, alongside the integrated Security Fabric platform, which collectively ensures coordinated and automated end-to-end threat protection tailored to diverse use cases.
Notably, the Fortigate50G DSL features the industry’s pioneering integration of Software-Defined Wide Area Network (SD-WAN) capabilities and Zero Trust Network Access (ZTNA) enforcement within a Next-Generation Firewall (NGFW) solution, all underpinned by a unified operating system. This architecture automatically manages, authenticates, and regulates user access to applications, thereby promoting a consistent and optimized user experience.
The Fortigate50G DSL Oman is equipped with sophisticated features aimed at delivering robust cybersecurity and efficient network management. Its NGFW component provides comprehensive protection against a broad spectrum of cyber threats, including malware, viruses, spyware, and botnets. The integrated SD-WAN functionality offers adaptable and efficient WAN connectivity, enabling organizations to enhance network performance while simultaneously reducing operational costs.
Harnessing Fortinet’s patented Security Fabric architecture, this high-performance hardware guarantees exceptional security without sacrificing operational efficiency. The device employs AI-driven security mechanisms to detect and mitigate advanced threats in real-time. Management of the Fortigate50G DSL Oman is streamlined through an intuitive web-based interface, simplifying configuration and ongoing management tasks. Furthermore, it is highly scalable, designed to accommodate increasing network demands, and includes cloud-based management capabilities for centralized oversight and control of distributed network infrastructures.
Specifications:
| Hardware Specifications | |
| Hardware Accelerated GE WAN Port | 1 |
| Hardware Accelerated GE RJ45 Ports | 1 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
| DSL RJ11 Port | 1 |
| USB Ports | 1 |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | Yes |
| Cellular Modem | — |
| Antenna Ports (SMA) | — |
| SIM Slots (Nano SIM) | — |
| Wireless Interface | — |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Threat Protection Throughput | 1.1 Gbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5 / 5 / 4 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.42 μs |
| Firewall Throughput (Packets Per Second) | 6 Mpps |
| Concurrent Sessions (TCP) | 720 000 |
| New Sessions/Second (TCP) | 85 000 |
| Firewall Policies | 2000 |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | — |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | — |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1.3 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 699 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 74,000 |
| Application Control Throughput (HTTP 64K) | 2.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 3.8 Gbps |
| Virtual Domains (Default / Maximum) | 5/5 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.7 x 8.5 x 7.0 |
| Height x Width x Length (mm) | 42 x 216 x 178 |
| Weight | 2.2 lbs (1.0 kg) |
| Form Factor (supports EIA/non-EIA standards) | Desktop |
| Operating Environment and Certifications | |
| Power Rating | 12VDC, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
| Maximum Current | 100V/0.2A, 240V/0.1A |
| Power Consumption (Average / Maximum) | 12.43 W / 13.01 W |
| Heat Dissipation | 44.36 BTU/hr |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC, ISED, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
| xDSL Modem Supported Mode | |
| vDSL2 | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| G.DMT | Yes |
| T1.413 | Yes |
| G.Lite | Yes |
| xDSL Modem Supported Type | |
| Annex A, B, I, J, M, L | Yes |
| Radio Specifications | |
| Multiple User (MU) MIMO | — |
| Maximum Wi-Fi Speeds | — |
| Maximum Tx Power | — |
| 5G Modem | |
| Regions | — |
| Modem Model | — |
| LTE Category | — |
| 5G Bands | — |
| LTE Bands | — |
| UMTS/HSPA+ | — |
| WCDMA | — |
| CDMA 1xRTT/EV-DO Rev A | — |
| GSM/GPRS/EDGE | — |
| Module Certifications | — |
| Diversity | — |
| MIMO | — |
| GNSS Bias | — |
