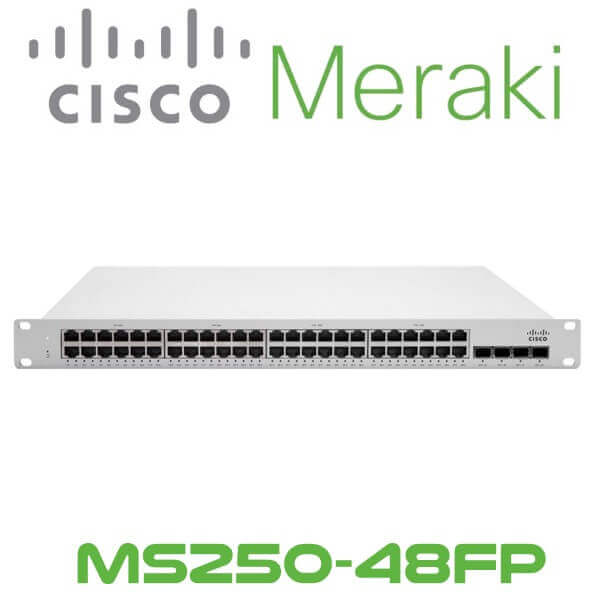

Meraki MS250-48FP Oman



Meraki MS250-48FP Oman

The Meraki MS250-48FP Oman was designed for reliable, long-lived operation in wiring closet environments, which may be prone to high temperatures and limited ventilation.

Description

Meraki MS250-48FP Network Switch Oman

The Meraki MS250-48FP Oman provides reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks on every model, redundancy and performance are guaranteed. This family also supports redundant, field-replaceable power supplies for mission-critical networks.

Features :

Unified Software Architecture

The Meraki MS250-48FP Oman Cloud Managed stackable Gigabit switch run the same Meraki operating system used by all of Meraki’s products. The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. When connected, the Meraki MS250-48 48-Port Gigabit switch automatically connects to the Meraki cloud, download configuration, and joins the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.

Simplified Management and Operations

Meraki’s cloud managed architecture makes it simpler than ever to quickly provision and reconfigure switch ports with security, QoS, and other parameters. The Meraki dashboard provides unified policies, event logs, and monitoring, which make it easy to manage and grow large network deployments.

By providing a complete, powerful set of management functions over the web, Meraki’s cloud-based management eliminates the need for proprietary command line configuration interfaces which require expensive and time consuming certifications. Meraki MS250-48FP Oman switches can be fully deployed and provisioned in minutes, without requiring any local configuration or staging. Additional or replacement switches can be sent to remote offices and installed by non-technical staff, saving thousands of dollars in time and travel expenses.

Designed for Reliability and Environmental Efficiency

The Meraki MS250-48FP Oman was designed for reliable, long-lived operation in wiring closet environments, which may be prone to high temperatures and limited ventilation. By minimizing total component count and only using proven switching silicon, Meraki is able to deliver highly reliable products with exceptional mean time between failure (MTBF) ratings.

Split-plane architecture

Each Meraki MS250-48 48-Port Cloud Managed stackable Gigabit switch also operates with a split-plane architecture, where silicon-based switching and data forwarding are separated from software-based control and management. By decoupling the underlying switching logic from control, each unit is able to deliver wire-speed switching even when advanced software features such as Layer 7 host and OS fingerprinting are enabled. Finally, the highly integrated designs of Meraki switches result in power and cooling savings in large deployment environments of 30- 60% when compared with similar managed Gigabit switches.

Technical Specs

MS250-48 MS250-48LP MS250-48FP
Interface
  • 48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS250-24P, available on all ports (maximum of 30W per port for PoE+)
  • 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
  • 2 × Stacking interfaces
  • Auto negotiation and crossover detection
Management
  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMPd and SYSLOG support for integration with other network management solutions
  • Seamless over-the-web firmware upgrades with scheduling & control
Remote diagnostics
  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Aggregated event logs with instant search
Flexible stacking
  • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities
  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging with 4,095 addressable tags
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
Security
  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
  • MAC-based RADIUS authentication (MAB)
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • STP Enhancements : BPDU guard, Root guard
  • IPv4 ACLs
Power over Ethernet
  • 802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port
  • Maximum PoE output (48LP/48FP) : 370 / 740 W
  • PoE available on all ports simultaneously
Performance
  • Non-blocking switching fabric
  • Switching capacity : 128Gbps (24-port models), 176Gbps (48-port models)
  • Forwarding rate (mpps) : 95.24 (24-port models), 127.98 (48-port models)
  • Jumbo frame support (9600 byte Ethernet frame)
  • Flow control support
Layer 3
  • Static Routing
  • DHCP Relay
Power
  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 24 – 874 W
  • RPS interface : Requires RPS-2300 chassis
Mounting
  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available
Environment
  • Operating temperature : 32°F to 104°F (0°C to 40°C)
  • Humidity : 5 to 95% non-condensing
  • MS225-24, MS250-48 feature fanless operation
Regulatory
  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
Warranty Full lifetime hardware warranty with next-day advanced replacement included
MTBF at 25°C 392,906 339,906 338,366
Physical dimensions (H×W×D) 1.72” x 19.08” x 20.32”(4.38cm x 48.46cm x 51.6cm) 1.72” x 19.08” x 20.32”(4.38cm x 48.46cm x 51.6cm) 1.72” x 19.08” x 20.32”(4.38cm x 48.46cm x 51.6cm)
Physical Weight 11.56 lb (5.24 kg) 12.37 lb (5.61 kg) 12.83 lb (5.82 kg)
