Description

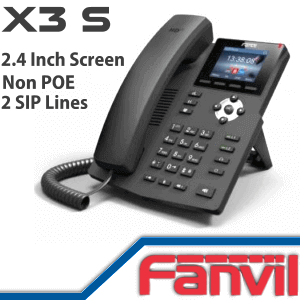

Fanvil X3S in Detail
Fanvil X3S is an amazing phone in terms of quality and cost-effectiveness.The Fanvil X3S IP Phone well suited with all the modern day IP Telephone systems. It offers Colour display, 2 SIP lines and Full-duplex Acoustic Echo Canceller (AEC). Voice codec support includes Wideband CODEC: G.722 and Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB.These Phones allow you to use a Desk Phone as well as a wall mounted.
Fanvil X3S IP Phone is without POE and supports SIP2.0 over UDP/TCP/TLS.This phone having L2TP (Basic Unencrypted) and OpenVPN support inbuilt. It will allow the remote users to connect to your network securely.
The Fanvil X3S offering superior user experience and simplicity. It is well suited as a business entry level phone with amazing features. Secure and complete provisioning protocols make it easy to deploy and manage.The 2.8 inch (320×240) color-screen LCD and friendly user interface allow the users to easily handle this phone.
Fanvil X3S Specification
Call Features
- Call out / answer / reject
- LCD x1: 2.8 inch (320×240) color-screen LCD
- Mute / unmute (microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID display
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (depending on server)
- Redial
- Do-Not-Disturb (per line/per phone)
- Auto-Answering (per line)
- Voice Message (on server)
- Local 3-way Conference
- Hot Line
Phone Features
- 2 SIP Lines
- HD Voice
- 10/100 Mbps Ports
- Handset(HS) / Hands-free(HF) / Headphone(HP) mode (EHS support for Plantronics headsets)
- Desktop / Wall-mount installation
- Economical and Environmental friendly package
- Industrial Standard Certifications: CE/FCC
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN,DHCP ,PPPoE,VLAN,QoS
- 802.1x
- L2TP (Basic Unencrypted)
- OpenVPN
- Intelligent Contact Number Matching / Filtering
- Call log (300 entries total, in/out/missed)
- Voice Message Waiting Indication (VMWI)
- Network Time Synchronization
- Multi-language support in screen and web UI
- Phone Accessibility Control by User PIN
- Intelligent Phonebook (up to 500 entries total)
- Remote Phonebook (XML/LDAP
Audio Specs
- HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
- Wideband ADC/DAC 16KHz Sampling
- Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
- Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband CODEC: G.722
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
