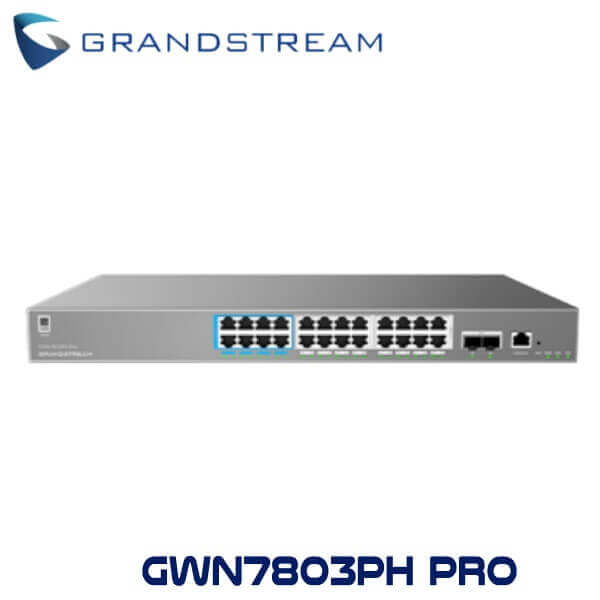

Grandstream GWN7803PH Pro Oman – High-Power 24-Port Gigabit PoE++ Layer 2++ Managed Switch
24× Gigabit PoE++ Ports (802.3af/at/bt) • 2× 10G SFP+ Uplinks • 400W Total PoE Output Budget • Up to 60W per Port • 88Gbps Switching Capacity • Layer 2++ Features (VLAN/QoS/IGMP/LLDP-MED/STP/Static Routing/ACLs) • GDMS Cloud & GWN Manager • IPv4/IPv6 Dual-Stack • 1U Rack Mount • Smart Fan Cooling
In 2026, demanding environments across Oman—such as large hotels and resorts in Muscat/Salalah, industrial facilities in Sohar/Duqm, healthcare complexes in Al Khuwair/Qurum, retail malls in Azaiba/Panorama, educational campuses in Knowledge Oasis/Rusayl, and corporate/government branches in Nizwa/Seeb—require switches that deliver high PoE++ power for power-hungry devices (e.g., PTZ cameras, high-power APs, digital signage), 10G uplinks for aggregation, Layer 2++ intelligence including static routing, and centralized cloud management. The Grandstream GWN7803PH Pro (from the GWN7800 Pro Series) excels here: a 24-port Gigabit PoE++ managed switch with 400W budget (60W/port max), 2× 10G SFP+ uplinks, doubled CPU/RAM over standard models, and seamless integration with Grandstream VoIP, Wi-Fi, video, and IoT ecosystems via GDMS.
Key Specifications & Oman Deployment Advantages (2026 Real-World Insights)
| Category | GWN7803PH Pro Specification | Oman-Specific Benefit (2026) |
| Ports & Uplinks | 24× Gigabit Ethernet PoE++ (RJ45), 2× 10G SFP+ | Powers 20–24 high-demand devices + 10G fiber uplinks for core aggregation in resorts, campuses, or multi-building sites |
| PoE Capabilities | IEEE 802.3af/at/bt, up to 60W per port, 400W total budget (smart/dynamic allocation) | Supports power-intensive Grandstream endpoints (high-power APs, PTZ cameras, door stations, displays) without extra injectors; ideal for dense Oman deployments |
| Switching Performance | 88Gbps switching capacity, 44Gbps non-blocking throughput, 65.472Mpps forwarding | Full-speed handling of VoIP, 4K/8K video, cloud traffic, and data in high-traffic Oman networks (hotels, clinics, retail) with minimal latency |
| Layer 2++ Features | 16K+ MAC addresses, 4K+ VLANs, voice VLAN auto-detection, IGMP/MLD Snooping, STP/RSTP/MSTP, LLDP-MED, QoS (8 queues), static routing, ACLs, Jumbo Frames (12288 bytes) | Advanced segmentation/routing for guest/voice isolation, multicast IPTV, priority VoIP/video; future-proof for complex Oman hospitality/industrial setups |
| Management | Web UI embedded controller, GDMS Networking (cloud), GWN Manager (on-premise), CLI | Centralized remote oversight of PoE/ports/traffic/firmware for Muscat HQ + 20–50 branches; no licensing for multi-site Oman management |
| Security | ARP Inspection, IP Source Guard, DoS protection, port security, DHCP Snooping, 802.1X, Storm Control | Enterprise protection for public-facing retail, hospitality, or government branches in Oman |
| Power & Reliability | Internal PSU, surge/ESD protection, 0–45°C range, smart fans | Reliable in warm Oman server rooms; fans minimize noise in sensitive areas like clinics/executive offices |
| Physical | 440 × 200 × 44 mm (1U), rack mount (ears included) | Fits standard 19″ telecom/IDF racks in Muscat/Al Khuwair or mid-size closets |
| Environmental | 0°C to 45°C, 10–90% RH non-condensing | Dependable in Oman’s coastal humidity or interior heat |
Why Oman Demanding Networks Choose GWN7803PH Pro in 2026
- High-Power 400W PoE++ Budget (60W/Port Max) Dynamic allocation powers demanding Grandstream devices (high-power Wi-Fi 6/7 APs, PTZ cameras, digital signage, door stations) for intensive deployments without limitations.
- 2× 10G SFP+ Uplinks for Ultra-Fast Aggregation 10G fiber uplinks support high-bandwidth backbones to core switches or remote sites—essential for Oman resorts, campuses, malls, or branch networks.
- Layer 2++ with Static Routing & Advanced Controls Static routing, ACLs, and enhanced QoS enable sophisticated traffic management and segmentation in growing, complex Oman environments.
- Auto Voice VLAN & LLDP-MED Grandstream IP phones auto-configure on voice VLAN; seamless VoIP integration for hotels, offices, or clinics.
- Enhanced Processing & GDMS Cloud Higher CPU/RAM + GDMS for real-time PoE monitoring, alerts, and updates across locations; supports heavy applications like 4K/8K surveillance or cloud services.
- Smart Fans & Robust Build Intelligent cooling for low noise; surge protection suits power-variable Oman sites.
Typical 2026 Oman Use Cases
- Large hotels/resorts & serviced apartments (Muscat, Salalah beaches, Sohar ports, Nizwa heritage)
- Healthcare complexes & hospitals (Qurum, Al Ghubrah, Seeb, Azaiba)
- Retail malls & chains (Muscat City Centre, Al Araimi Boulevard, Panorama Mall expansions)
- Educational campuses & universities (Knowledge Oasis Muscat, Rusayl)
- Industrial facilities & corporate HQs (Duqm SEZ, Ghala, Al Khuwair)
- Government & multi-site branches (Ruwi, Muscat Heights, regional high-power needs)
What’s Included in the Box?
- 1× GWN7803PH Pro 24-port Gigabit PoE++ managed switch
- 19″ rack-mount ears + mounting screws
- Power cord (IEC C13)
- Ground cable
- Quick installation guide (English; Arabic support docs available)
Practical Installation Tips from Oman Projects
- Rack-mount in standard 19″ telecom/IDF closets with included ears
- Use Cat6/Cat6a for PoE/Gigabit runs (100m max); fiber modules for 10G SFP+ uplinks
- Enable LLDP-MED & voice VLAN for auto Grandstream phone integration
- Configure QoS with voice/video priority & static routes/ACLs as required
- Set PoE priorities & power limits via web UI/GDMS
- Apply port security (MAC binding) & advanced protections on guest ports
- Test full PoE load (~15–60W per port based on devices) & 10G throughput before handover
- Onboard to GDMS for remote PoE/traffic monitoring & firmware updates
Buy Grandstream GWN7803PH Pro in Oman – Stock & Support (February 2026)
Current Availability
✅ Official Grandstream authorized partner for Oman
✅ In stock at Muscat warehouse
✅ Same-day pickup/dispatch in Muscat
✅ Next-day delivery to Seeb, Sohar, Salalah
✅ 24–72 hours to all other governorates
Complete Service Package
- Free PoE++ budgeting, 10G uplink planning & Layer 2++ design consultation
- Professional rack installation, cabling & labeling
- VLAN, QoS, voice VLAN, static routing, security & GDMS setup
- Multi-site onboarding & optimization
- Bilingual Arabic/English support (remote/on-site)
- Included hands-on training for your team Contact
Next Step Reply “quote GWN7803PH Pro qty X” or “PoE++ switch consultation Oman” – receive 2026 pricing, stock confirmation, and tailored BOM within 45 minutes (business hours).
High-power PoE++ Layer 2++ switches like the GWN7803PH Pro are increasingly vital for Oman’s hospitality, healthcare, retail, and industrial growth—secure your units early.
Your trusted Grandstream networking partner in Oman – delivering ultra-high-power, 10G-enabled, intelligent Layer 2++ PoE solutions for demanding networks across the Sultanate.
