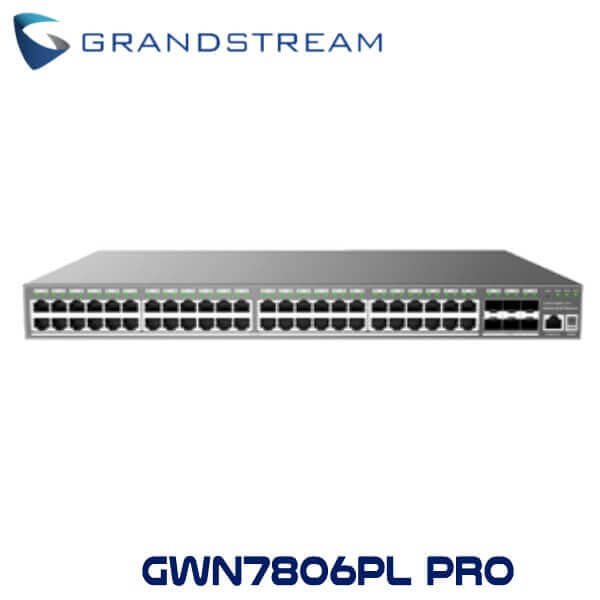

Grandstream GWN7806PL Pro Oman – Enterprise 48-Port Gigabit PoE+ Layer 2++ Managed Switch
48× Gigabit PoE+ Ports (802.3af/at) • 6× 10G SFP+ Uplinks • 400W Total PoE Output Budget • Up to 30W per Port • 216Gbps Switching Capacity (108Gbps non-blocking) • Layer 2++ Features (VLAN/QoS/IGMP/LLDP-MED/STP/Static Routing/ACLs) • GDMS Cloud & GWN Manager • IPv4/IPv6 Dual-Stack • 1U Rack Mount • Smart Fan Cooling • 1× MGMT Console Port
In 2026, large-scale deployments across Oman—such as expansive hotels and resorts in Muscat/Salalah, industrial parks in Sohar/Duqm, healthcare campuses in Al Khuwair/Qurum, retail malls in Azaiba/Panorama, educational institutions in Knowledge Oasis/Rusayl, corporate headquarters, and government facilities in Nizwa/Seeb—demand high-density switches with massive port counts, ultra-fast 10G uplinks, substantial PoE power, Layer 2++ routing capabilities, and centralized cloud management for Grandstream VoIP, Wi-Fi 6/7 APs, IP cameras, door stations, and IoT ecosystems. The Grandstream GWN7806PL Pro (from the GWN7800 Pro Series) is the high-end solution: a 48-port Gigabit PoE+ managed switch with 6× 10G SFP+ uplinks, 400W budget, enhanced processing (dual-core MIPS 1GHz CPU, 512MB RAM), and full GDMS integration for scalable, secure, high-performance Oman networks.
Key Specifications & Oman Deployment Advantages (2026 Real-World Insights)
| Category | GWN7806PL Pro Specification | Oman-Specific Benefit (2026) |
| Ports & Uplinks | 48× Gigabit Ethernet PoE+ (RJ45), 6× 10G SFP+ | Connects 40–48 Grandstream devices + 10G fiber uplinks for high-bandwidth aggregation in large resorts, campuses, malls, or multi-building industrial sites |
| PoE Capabilities | IEEE 802.3af/at, up to 30W per port, 400W total budget (smart/dynamic allocation) | Powers extensive Grandstream deployments (GRP/GXP phones ~10–15W, GWN APs ~15–25W, cameras ~8–15W); efficient for dense mid-to-large Oman setups |
| Switching Performance | 216Gbps switching capacity, 108Gbps non-blocking throughput, 160.704Mpps forwarding, 8.4Mb packet buffer | Line-rate performance for simultaneous VoIP, 4K/8K video, cloud apps, and heavy data in high-traffic Oman environments (hotels, hospitals, retail) |
| Layer 2++ Features | 32K MAC addresses (16K static + dynamic), 4K+ VLANs, voice VLAN auto-detection, IGMP/MLD Snooping, STP/RSTP/MSTP, LLDP-MED, QoS (8 queues), static routing, ACLs, Jumbo Frames (12288 bytes) | Advanced segmentation/routing for guest/voice isolation, multicast IPTV, priority VoIP/video; supports complex Oman hospitality/industrial networks |
| Management | Web UI embedded controller, GDMS Networking (cloud), GWN Manager (on-premise), CLI | Centralized remote control of PoE/ports/traffic/firmware for Muscat HQ + 50+ branches; no licensing for multi-site Oman operations |
| Security | ARP Inspection, IP Source Guard, DoS protection, port security, DHCP Snooping, 802.1X, Storm Control | Enterprise-grade defense for public-facing retail, hospitality, or government branches in Oman |
| Power & Reliability | Internal PSU, surge/ESD protection, 0–45°C range, smart fans | Reliable in warm Oman server rooms; fans minimize noise in sensitive areas like clinics/executive offices |
| Physical | 440 × 200 × 44 mm (1U), rack mount (ears included), 1× Console port | Fits standard 19″ telecom/IDF racks in large Muscat/Al Khuwair or regional closets |
| Environmental | 0°C to 45°C, 10–90% RH non-condensing | Dependable in Oman’s coastal humidity or desert heat |
Why Oman Large-Scale Networks Choose GWN7806PL Pro in 2026
- High-Density 400W PoE+ Budget Across 48 Ports Smart allocation powers large Grandstream ecosystems without overload; perfect for extensive IP phones, APs, cameras in Oman hotels, campuses, or industrial facilities.
- 6× 10G SFP+ Uplinks for Massive Bandwidth 10G fiber uplinks enable ultra-fast backbone/aggregation to core switches or remote sites—critical for large-scale Oman resorts, malls, hospitals, or branch networks.
- Layer 2++ with Static Routing & Advanced Features Static routing, ACLs, enhanced QoS, and VLAN capabilities support sophisticated traffic control and segmentation in complex, growing Oman deployments.
- Auto Voice VLAN & LLDP-MED Grandstream phones auto-configure on voice VLAN; seamless VoIP integration for large hospitality, office, or clinic rollouts.
- Superior Processing & GDMS Cloud Dual-core CPU + 512MB RAM + GDMS for real-time PoE/traffic monitoring, alerts, and updates across distributed locations; handles demanding apps like 4K/8K surveillance.
- Smart Fans & Enterprise Reliability Intelligent cooling for low noise; surge protection suits power-variable Oman sites in industrial or remote areas.
Typical 2026 Oman Use Cases
- Large hotels/resorts & serviced apartments (Muscat, Salalah coastal, Sohar ports, Nizwa heritage)
- Hospitals & healthcare complexes (Qurum, Al Ghubrah, Seeb, Azaiba)
- Retail malls & supermarket chains (Muscat City Centre, Al Araimi Boulevard, Panorama Mall expansions)
- Universities & educational campuses (Knowledge Oasis Muscat, Rusayl Industrial Area)
- Industrial parks & corporate HQs (Duqm SEZ, Ghala, Al Khuwair)
- Government offices & multi-site branches (Ruwi, Muscat Heights, regional high-density needs)
What’s Included in the Box?
- 1× GWN7806PL Pro 48-port Gigabit PoE+ managed switch
- 19″ rack-mount ears + mounting screws
- Power cord (IEC C13)
- Ground cable
- Quick installation guide (English; Arabic support docs available)
Practical Installation Tips from Oman Projects
- Rack-mount in standard 19″ telecom/IDF closets with included ears
- Use Cat6/Cat6a for PoE/Gigabit runs (100m max); fiber modules for 10G SFP+ uplinks
- Enable LLDP-MED & voice VLAN for auto Grandstream phone integration
- Configure QoS with voice/video priority, static routes, & ACLs as needed
- Set PoE priorities & power limits via web UI/GDMS
- Apply port security (MAC binding) & advanced protections on guest ports
- Test full PoE load (~8–15W per port average) & 10G uplink throughput before handover
- Onboard to GDMS for remote PoE/traffic monitoring & firmware updates
