Description

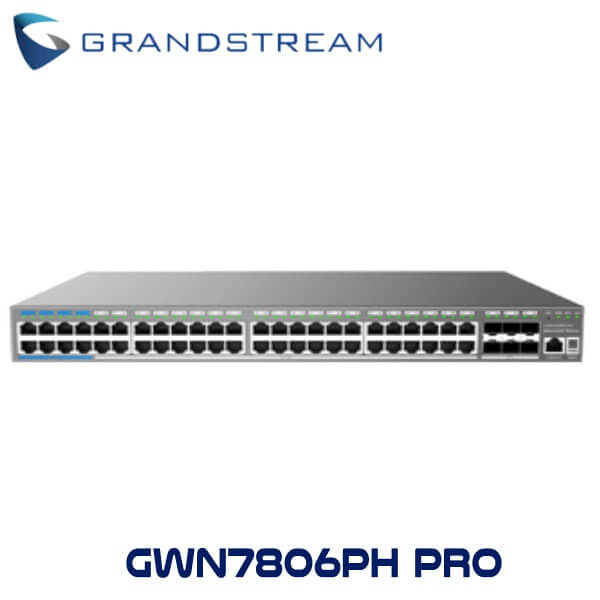

Grandstream GWN7806PH Pro Oman – Ultimate 48-Port Gigabit PoE++ Layer 2++ Managed Switch
48× Gigabit PoE++ Ports (802.3af/at/bt) • 6× 10G SFP+ Uplinks • 800W Total PoE Output Budget • Up to 60W per Port • 216Gbps Switching Capacity (108Gbps non-blocking) • Layer 2++ Features (VLAN/QoS/IGMP/LLDP-MED/STP/Static Routing/ACLs) • GDMS Cloud & GWN Manager • IPv4/IPv6 Dual-Stack • 1U Rack Mount • Smart Fan Cooling • 1× MGMT Console Port • 1+1 External RPS Support • Stackable up to 8 Units
In 2026, enterprise-level deployments across Oman—large hotels/resorts in Muscat/Salalah, industrial complexes in Sohar/Duqm, hospitals/healthcare campuses in Al Khuwair/Qurum, major retail malls in Azaiba/Panorama, universities in Knowledge Oasis/Rusayl, corporate HQs, and government facilities in Nizwa/Seeb—demand maximum-density switches with ultra-high PoE++ power for power-hungry devices (PTZ cameras, high-power Wi-Fi 6/7 APs, digital signage, LED displays, door stations), massive 10G uplinks for aggregation, Layer 2++ routing intelligence, stacking capability, and unified cloud management for Grandstream VoIP, wireless, video, and IoT ecosystems. The Grandstream GWN7806PH Pro (flagship of the GWN7800 Pro Series) is engineered for these extreme requirements: a 48-port Gigabit PoE++ managed switch with 800W budget (60W/port max), 6× 10G SFP+ uplinks, dual-core 1GHz CPU/512MB RAM/128MB flash, stacking up to 8 units, and full GDMS integration for scalable, secure, high-availability Oman networks.
Key Specifications & Oman Deployment Advantages (2026 Real-World Insights)
| Category | GWN7806PH Pro Specification | Oman-Specific Benefit (2026) |
| Ports & Uplinks | 48× Gigabit Ethernet PoE++ (RJ45), 6× 10G SFP+ | Connects 40–48 high-power Grandstream devices + 10G fiber uplinks for massive aggregation in large resorts, campuses, malls, hospitals, or industrial parks |
| PoE Capabilities | IEEE 802.3af/at/bt, up to 60W per port, 800W total budget (smart/dynamic allocation) | Powers demanding endpoints (high-power APs, PTZ/4K cameras, signage, door stations) across all ports; ideal for dense, power-intensive Oman deployments without add-ons |
| Switching Performance | 216Gbps switching capacity, 108Gbps non-blocking throughput, 160.704Mpps forwarding, 8.4Mb packet buffer | Full line-rate for VoIP, 4K/8K video surveillance, cloud services, and heavy data in high-traffic Oman environments (hotels, healthcare, retail malls) |
| Layer 2++ Features | 32K MAC addresses (16K static + dynamic), 4K+ VLANs, voice VLAN auto-detection, IGMP/MLD Snooping, STP/RSTP/MSTP, LLDP-MED, QoS (8 queues), static routing, ACLs, Jumbo Frames (12288 bytes) | Sophisticated segmentation/routing for guest/voice isolation, multicast IPTV, priority VoIP/video; supports complex Oman hospitality, industrial, or campus networks |
| Management | Web UI embedded controller, GDMS Networking (cloud), GWN Manager (on-premise), CLI, Console port | Centralized remote management of PoE/ports/traffic/firmware/stacking for Muscat HQ + 50+ branches; no licensing for multi-site Oman control |
| Security | ARP Inspection, IP Source Guard, DoS protection, port security, DHCP Snooping, 802.1X, Storm Control | Robust enterprise protection for public-facing retail, hospitality, or government branches in Oman |
| Power & Reliability | Internal PSU, surge/ESD protection, 0–45°C range, smart fans, 1+1 external RPS support, stacking up to 8 units | High uptime in warm Oman server rooms; fans minimize noise; RPS & stacking for redundancy in mission-critical sites (hospitals, resorts) |
| Physical | 440 × 200 × 44 mm (1U), rack mount (ears included), 1× Console port | Fits standard 19″ telecom/IDF racks in large Muscat/Al Khuwair or regional closets |
| Environmental | 0°C to 45°C, 10–90% RH non-condensing | Reliable in Oman’s coastal humidity or interior heat |
Why Oman Enterprise Networks Choose GWN7806PH Pro in 2026
- Massive 800W PoE++ Budget (60W/Port Max) Dynamic high-power allocation supports intensive Grandstream setups (high-power Wi-Fi APs, PTZ cameras, signage) across 48 ports for large-scale Oman deployments.
- 6× 10G SFP+ Uplinks for Extreme Bandwidth 10G fiber uplinks provide massive aggregation to core switches or remote sites—vital for large Oman resorts, hospitals, malls, or industrial complexes.
- Layer 2++ with Static Routing & Stacking Static routing, ACLs, enhanced QoS, and stacking (up to 8 units) enable advanced traffic control, redundancy, and scalability in complex Oman networks.
- Auto Voice VLAN & LLDP-MED Grandstream IP phones auto-configure on voice VLAN; seamless VoIP integration for large hospitality, office, or clinic environments.
- Superior Processing & GDMS Cloud Dual-core CPU + 512MB RAM + GDMS for real-time PoE/traffic monitoring, alerts, and updates across distributed locations; handles demanding 4K/8K surveillance or cloud apps.
- Smart Fans, RPS & Enterprise Reliability Intelligent cooling for low noise; 1+1 RPS support suits power-variable Oman sites in industrial or remote areas.
Typical 2026 Oman Use Cases
- Large hotels/resorts & serviced apartments (Muscat, Salalah coastal, Sohar ports, Nizwa heritage)
- Hospitals & healthcare complexes (Qurum, Al Ghubrah, Seeb, Azaiba)
- Retail malls & supermarket chains (Muscat City Centre, Al Araimi Boulevard, Panorama Mall expansions)
- Universities & educational campuses (Knowledge Oasis Muscat, Rusayl Industrial Area)
- Industrial parks & corporate HQs (Duqm SEZ, Ghala, Al Khuwair)
- Government offices & multi-site branches (Ruwi, Muscat Heights, regional high-density/high-power needs)
What’s Included in the Box?
- 1× GWN7806PH Pro 48-port Gigabit PoE++ managed switch
- 19″ rack-mount ears + mounting screws
- Power cord (IEC C13)
- Ground cable
- Quick installation guide (English; Arabic support docs available)
Practical Installation Tips from Oman Projects
- Rack-mount in standard 19″ telecom/IDF closets with included ears
- Use Cat6/Cat6a for PoE/Gigabit runs (100m max); fiber modules for 10G SFP+ uplinks
- Enable LLDP-MED & voice VLAN for auto Grandstream phone integration
- Configure QoS with voice/video priority, static routes, & ACLs as required
- Set PoE priorities & power limits via web UI/GDMS
- Apply port security (MAC binding) & advanced protections on guest ports
- Test full PoE load (~15–60W per port based on devices) & 10G uplink throughput before handover
- Onboard to GDMS for remote PoE/traffic monitoring, stacking setup & firmware updates
