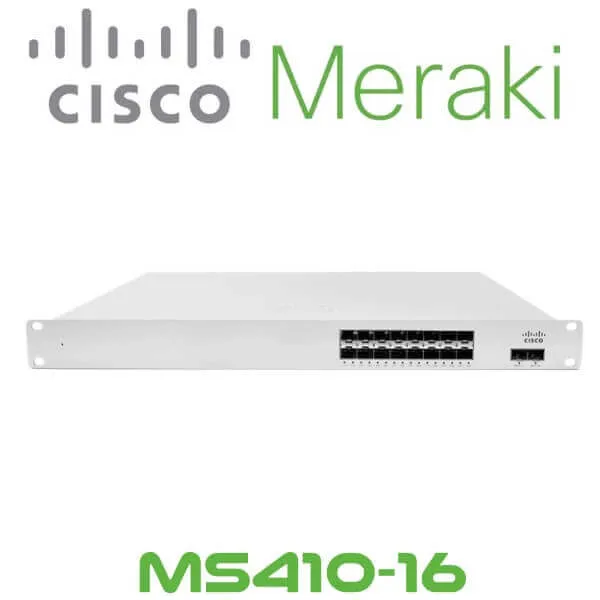

Meraki MS410-16 Oman

Description

Meraki MS410-16 Network Switch Oman

The Meraki MS410-16 Oman is designed to unify data, voice, and video onto a single IP backbone. Meraki MS410 provides powerful 100% cloud-managed switching to the aggregation layer. This range of fiber aggregation switches adopts the benefits of the cloud: intuitive management, reduced complexity, network wide visibility and control, and lower cost for campus deployments. MS410-16 converge voice, video and data environments. Meraki MS410-16 switches support rich quality-of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. The Meraki Cloud Networking architecture enables plug and play branch deployments and provides centralized visibility and control across any number of distributed locations.

Meraki MS410-16 Switches feature virtual stacking allowing management of thousands of switch ports as one, without requiring a physical connection between switches. Users easily find and configure switch ports across entire network, even those in geographically distributed locations. Easily configure ports for access devices, assign voice VLANs, control PoE, and more, with a few simple clicks and without complex CLI instructions. In addition to dynamic routing, layer 3 Meraki MS switches support VRRP for warm spare failover, ensuring immediate recovery of gateway avoiding downtime and client disruption.

MS410-16 Features

Compact, 1RU design for space-constrained environments
Non-blocking switch backplane with 72 Gbps of switching capacity
Field-replaceable, hot-swappable power supplies
Field-replaceable, hot-swappable fans
Front-to-back cooling
Low power consumption and shallow rack depth, which enable flexible deployment
2 × 40GbE QSFP+ uplink/stacking ports, flexible stacking on all interfaces
16 × 1GbE SFP
2 × 1GbE SFP+
Dedicated RJ45 management port

Centrally Managed from the Cloud

The Meraki MS is the industry’s first cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Access remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Virtual Stacking

Virtual stacking is built-in to all Meraki MS Switches, with no need for extension modules, proprietary cables, or extra configuration. Simply log in to the Meraki dashboard and manage the entire access switch infrastructure without concern for their interconnectivity.

Layer 7 Application and Client Visibility

Meraki MS410-16 features integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

Layer 3 Scalability & Failover

Quickly scale growing networks while ensuring redundancy for critical switch infrastructure with Meraki layer 3 switches. Intuitive, dynamic routing configurable in the dashboard simplifies management by removing complex command line interfaces. Traffic flow is optimized at line rate without sacrificing deep visibility into client devices and application use. Deploy ACLs directly on MS switches to secure boundaries between VLANs, hosts, services, and the Internet.

QoS for Voice and Video

Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.

Remote Live Tools and Alerts

MS Switches make powerful live tools available for remote troubleshooting at any time. From infrastructure uptime and performance testing to device troubleshooting, live tools simplify day-to-day network administration and dramatically shorten time to resolution. Meraki MS410-16 Oman is automatically monitored 24×7 via the cloud. Email and text message alerts are configurable to immediately notify administrators of configuration changes, switch downtime, and even per-port disconnection events.

Enterprise Security

Extending security down to the port level has never been easier. Meraki MS410-16 Switches integrate seamlessly with enterprise-grade security systems using 802.1X. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard. Seamless firmware updates, two factor authentication, and other built-in protections make secure, PCI and HIPAA-compliant networks easy and cost effective.

MS410-16 Specifications

Interfaces

16 × 1 GbE SFP
2 × 10GbE SFP+
1 × 10/100/1000 RJ45 management port

Ethernet switching capabilities

1p Quality of Service prioritization
1Q VLAN tagging and Q-in-Q VLAN stacking with 4096 addressable tags
1D Spanning Tree Protocol (RSTP, STP)
1ab Link Layer Discovery Protocol (LLDP)
3ad link aggregation with up to 8 ports per aggregate
Broadcast storm control
IGMP snooping for multicast filtering
96K Forwarding Table Capacity

Layer 3 capabilities

Dynamic routing (OSPFv2)
Static routing
DHCP Relay
DHCP Server
Warm spare redundancy (VRRP)
DHCP Failover

Security

Integrated two-factor authentication
Role-based administration
Corporate wide password policy enforcement
IEEE 802.1X port-based security
LLDP, VLAN QoS (802.1pq), VPN(L2TP)
Transport Layer Security (TLS)
Digest authentication using MD5/MD5-sess
Secure configuration file via AES encryption
Phone lock for personal privacy protection
Admin/User 2-level configuration mode

Performance

Non-blocking fabric
72 Gbps switching capacity

Hardware & Mounting

Rack-mountable with included rack mount hardware
Front-to-back airflow
Field-replaceable, hot-swappable power supplies
Field-replaceable, hot-swappable fans

Management

Managed via the cloud using the Meraki dashboard
Integrated with Meraki wireless, security appliance, and device management
No-touch remote deployment (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP and hostname fingerprinting
SNMPD allows integration with 3rd-party network management solutions
Seamless over-the-web firmware upgrades

Remote diagnostics

Email and text (SMS) alerts
Live remote packet capture
Aggregated event logs with instant search

Scalable stacking

Unified configuration and monitoring of all switches from aggregation layer to access layer
Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Physically stack up to 8 switches for added resiliency in high-throughput environments

Power
