Yeastar TA100 Oman



Yeastar TA100 Oman

The Yeastar TA100 Oman FXS VoIP Gateway features a compact and small form factor design which results in a clutter-free environment when simply placed on a desk.

Category:

Description

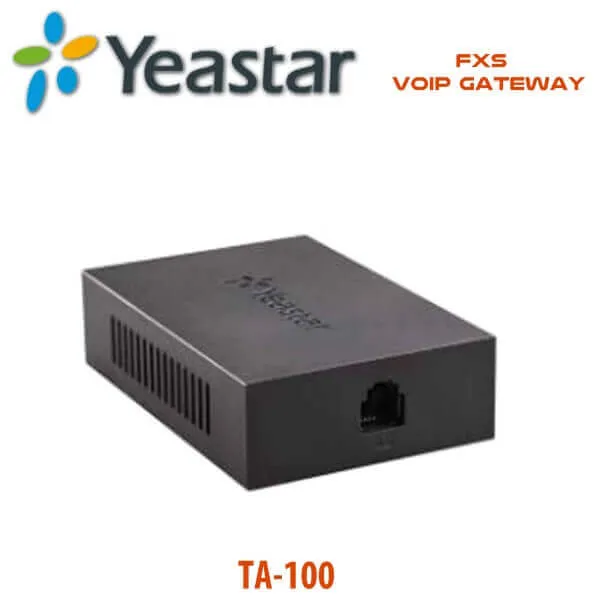

Yeastar TA100 FXS VoIP Gateway Oman

The Yeastar TA100 Oman is a desk-mountable FXS VoIP Gateway which enables you to easily connect legacy telephones, fax machines, and PBX systems with IP telephony networks and IP-based PBX systems. It is packed with rich features and offers an easy configuration that provides you with an extremely easy user interface. The Yeastar TA100 FXS VoIP Gateway Kampala, Oman is designed for use by small and medium-sized businesses that require a flexible telephony solution that can integrate a traditional phone system into any IP-based system, including the Yeastar S-series. Yeastar TA100 Analog Telephone Adapter (ATA) provides 1 analog interface to convert existing analog equipment to IP-based networks cost-effectively. It boasts of many advanced telephony features including call waiting, call forwarding, call transfer, call conference, Direct IP Dialing, Do Not Disturb, and flexible dial plan which enhances the general communication experience for home businesses and small businesses. The Yeastar TA100 FXS VoIP Gateway Kampala, Oman features a compact and small form factor design which results in a clutter-free environment when simply placed on a desk. It is equipped with a Micro USB which allows for direct connection and powering through the USB port of PC and IP-PBX. The robust gateway supports Auto Provision FTP/TFTP/HTTP provisioning servers upon boot-up. It can easily be managed from any web browser with intuitive Web GUI, a procedure that requires zero learning curve. Flexible configuration allows for basic configuration on telephone keypad with voice prompt. The Yeastar TA100 Oman VoIP Gateway series Kampala, Oman is based on SIP RFC3261 Protocols and is therefore widely compatible with various leading professional platforms including 3CX, Asterisk, Lync Server, FreePBX, and is certified for use with Elastix and BroadSoft.

Key Features :

  • Connects 1 analog phone and fax machine to VoIP network
  • Fully compliant with SIP standard
  • High-quality voice call
  • Miniature design
  • Rich subscribe calling features
  • FTP, TFTP, HTTP Auto Provision
  • Powered by USB interface
  • Easy web-based configuration
  • 1 FXS Port
    • FXS stands for Foreign Exchange Subscriber or Foreign Exchange Station. This port in gateways is used to connect an analog endpoint like a fax machine or an analog phone. A device that has an FXS port is capable of allowing an analog device to connect to a VoIP network. The Yeastar TA100 VoIP Gateway Kampala, Oman is equipped with 1 FXS port which allows for easy connection of your analog device to a VoIP network so that you can enjoy making and receiving fast calls over the internet.
  • 3-Way Voice Conferencing
    • The Yeastar TA100 VoIP Gateway series is equipped with 1 FXS port which supports 3-way HD audio conferencing. This enables you to seamlessly connect and collaborate with colleagues from different geographical locations. It is a cost-effective means of communication that maximizes efficiency as well as boosts productivity.
  • Fax Support
    • The Yeastar T100 Oman VoIP Gateway is configured to support T.30 Fax which enables you to create Fax-over-IP. 30 is an ITU protocol that dictates how to fax audio traverses a packet-switched network, such as the Internet or a company’s LAN/WAN, reliably. In order for fax audio to traverse a packet-switched network like the Internet, the analog signal used by fax machines must be converted into digital packets.
  • Layer 2 & Layer 3 QoS Control
    • Quality of Service (QoS) is a strong feature that is integrated into routers and switches so as to control traffic flow thus delivering an overall smooth performance improvement for critical network traffic. It simply prioritizes more important traffic by letting it pass first. Whenever there are high volumes of traffic, the Yeastar TA100 VoIP Gateway Kampala, Oman uses this feature to eliminate delays, thus maximizing productivity.
  • Automated – Provisioning – TFTP/HTTP/HTTPS
    • The Yeastar TA100 Oman VoIP Gateway has the ability to deploy an information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.
  • HD Voice Quality
    • The Yeastar TA100 VoIP Gateway series supports a number of voice compression codecs including 711 with Annex I (PLC) and G.729A/B. It also uses noise suppression technologies such as Echo Cancellation and Jitter Buffer to deliver crystal clear sounds while filtering out any background noises which may interfere with communication during voice calls.
  • Maximum Security
    • Yeastar TA100 VoIP Gateway uses a number of leading security protocols including TLS and SRTP security encryption technology to safeguard your VoIP accounts and calls from access by unauthorized persons and devices. This prevents the loss of important data or corruption of files due to access by malicious hackers.
  • Compatibility
    • The Yeastar TA100 Oman VoIP Gateway series is based on SIP RFC3261 Protocols and is therefore widely compatible with various leading professional platforms including 3CX, Asterisk, Lync Server, FreePBX, and is certified for use with Elastix and BroadSoft.

Call Features

  • Call Transfer : This advanced feature of the Yeastar TA100 VoIP gateway allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Gateway.
  • Call Waiting : You can hear another incoming call when you are already on an active phone call (beep). With the Yeastar TA100 VoIP Gateway, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.
  • Call Holding : You can easily place an active phone call on hold in order to make or pick another incoming call using the Yeastar TA100 FXS VoIP Gateway Kampala, Oman.

Specifications

Ports 1 FXS Port
Telephony Interfaces RJ11
LAN 1 10/100Mbps
Micro USB Port 1
Protocol SIP (RFC3261)
Transport UDP, TCP, TLS, SRTP
Codec G.711 (alaw/ulaw), G.729A/B
DTMF Mode RFC2833, SIP Info, In-band
Voice Capability ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
Fax T.30 Pass-through
QoS DiffServ, ToS, 802.1 P/Q VLAN tagging
Network DHCP, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol FTP, TFTP, HTTP, HTTPS, SSH
Management Protocol TR-069*
Signaling FXS Loop Start, FXS Kewl Start
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal
Power DC 5V 1A
Dimensions (L × W × H) (mm) 85 x 58 x 24
Humidity 10-90% non-condensing
Storage Range -20°C to 65°C, -4°F to 149°F
Operation Range 0°C to 40°C, 32°F to 104°F
Mounting Desktop
Compatibility Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
