Tplink TL-POE10R Oman



Tplink TL-POE10R Oman

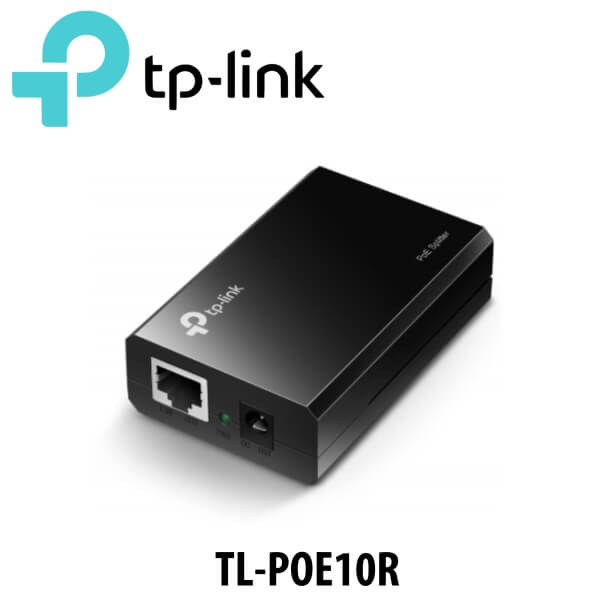

The Tplink TL-POE10R  PoE Splitter fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK’s T1600G-52PS, TL-SG1008PE or TL-POE150S, or other equivalent product.

Category:

Description

Tplink TL-POE10R PoE Splitter Oman

The Tplink TL-POE10R Oman PoE Splitter fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK’s T1600G-52PS, TL-SG1008PE or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Features

  • IEEE 802.3af compliant
  • Output :  12VDC 1A, 9VDC 1A, 5VDC 2A selectable
  • Gigabit speed support
  • Plug-and-Play, requires no configuration

Technical Specs

HARDWARE FEATURES
Interface
  • 2 10/100/1000Mbps RJ45 Port
  • AUTO Negotiation/AUTO MDI/MDIX
  • 1 POWER OUTPUT PORT (5.5 mm round barrel)
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 100BASE-TX : UTP category 5, 5e cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
Basic Function
  • Compatible With IEEE 802.3af Compliant PSEs
  • Delivers Power Up To 100 Meters
  • Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator PWR
Dimensions ( W x D x H ) 3.2 × 2.1 × 0.9 in.
(81 × 54 × 24 mm)
SOFTWARE FEATURES
Basic Function
  • Compatible with IEEE 802.3af compliant power sources (PSE)
  • Delivers power up to 100 meters
  • Selectable 12VDC, 9VDC or 5VDC power output
OTHERS
Certification FCC, RoHS
Package Contents
  • PoE Splitter TL-POE10R
  • Power Cord
  • RJ45 Cable
  • Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
