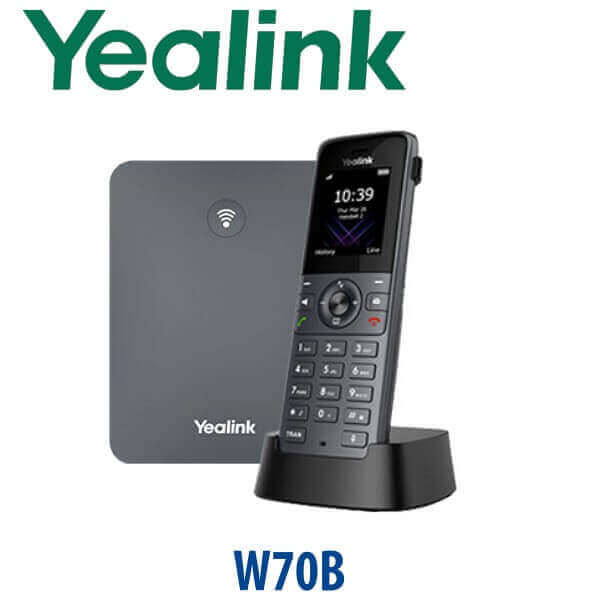

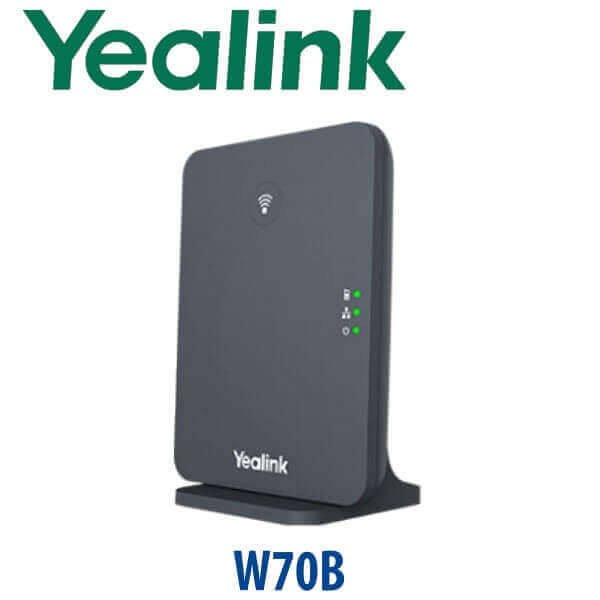

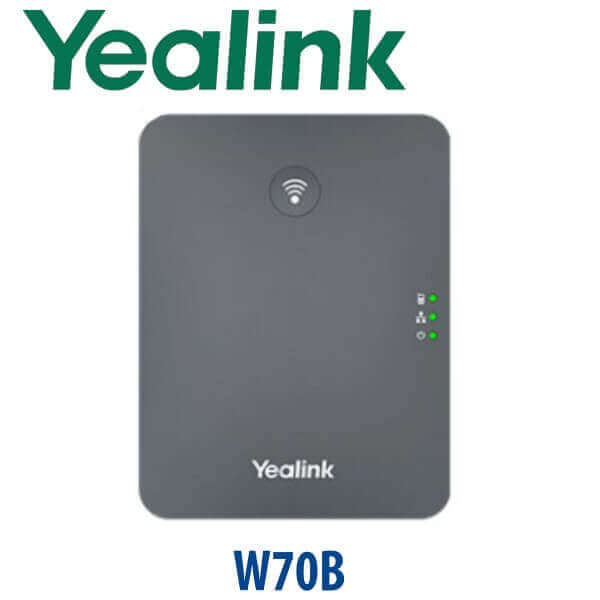

Yealink W70B IP DECT Base Station Oman

Designed in a modern and elegant style, this compact IP DECT base station possesses a wire-hidden design, presenting a concise and tidy desk even when mounted on the wall. By supporting the Opus codec, the Yealink W70B Oman consistently delivers excellent and professional audio quality in both high-bandwidth and poor network conditions, compared to other wideband or narrowband audio codecs.

The Yealink W70B  Oman supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize Zero Touch Provisioning without any complex manual settings, which makes it simple to deploy, easy to maintain and upgrade, saving even more time and IT costs for businesses.

Yealink W70B Specifications

Phone Features

• Up to 20 simultaneous calls
• Up to 10 handsets
• Up to 10 SIP accounts
• Up to 6 repeaters per base station (RT30)
• No Perception Upgrade
• Paging/Intercom/Auto answer/Dial plan
• Call hold/Call transfer/Call waiting
• 3-way conference
• Switching between calls
• Mute/Silence/DND
• Caller ID with name and number
• Anonymous call/Anonymous call rejection
• Call forward : Always/Busy/No Answer
• Speed dial/Voicemail/Redial
• Message Waiting Indication (MWI)
• Music on hold (server-based)
• Local phonebook for up to 1000 entries (store in the base)
• Remote phonebook/LDAP/XML phonebook
• Phonebook search/import t/export
• Call history : All/Missed/Placed/Received
• Direct IP call without SIP proxy
• Reset to factory, reboot
• Emergency call
• Action URI
• XML browser

Audio Features

• Full-duplex speakerphone
• Hearing Aid Compatibility (HAC) compliant
• FNR (Noise Cancellation)
• Wideband codec : Opus, AMR-WB (optional), G.722
• Narrowband codec : PCMU, PCMA, G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB
• AEC (supported by W53H)
• Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP assignment : Static/DHCP
• Support outbound proxy server backup

Interface

• 1 x RJ45 10/100M Ethernet port
• Power over Ethernet (IEEE 802.3af), Class 1

Physical Features

• Indoor Range : 50m (in ideal conditions)
• Outdoor Range : 300m (in ideal conditions)
• Desktop or wall mountable
• Energy-saving ECO mode/ECO Mode+
• Three LED indicators on W70B :
  • 1 x Registration LED
  • 1 x Network Status LED
  • 1 x Power Indicator LED
• External Yealink AC adapter :
• AC 100-240V Input and DC 5V/600mA Output
• Color : Classic Grey
• Base station size : 130mm x 100mm x 25.1mm
• Operating humidity : 10 ~ 95%
• Operating temperature : 0 ~ +40°C (+32~104°F)
