Yealink VCC22 Oman



Yealink VCC22 Oman

Yealink VCC22 features 12x optical zoom plus full pan and tilt functionality. Designed for large spaces like conference rooms and board rooms, Yealink VCC22 has a wide but not too wide 70° horizontal field of view. The camera automatically adjusts focus, exposure, and white balance.

Description

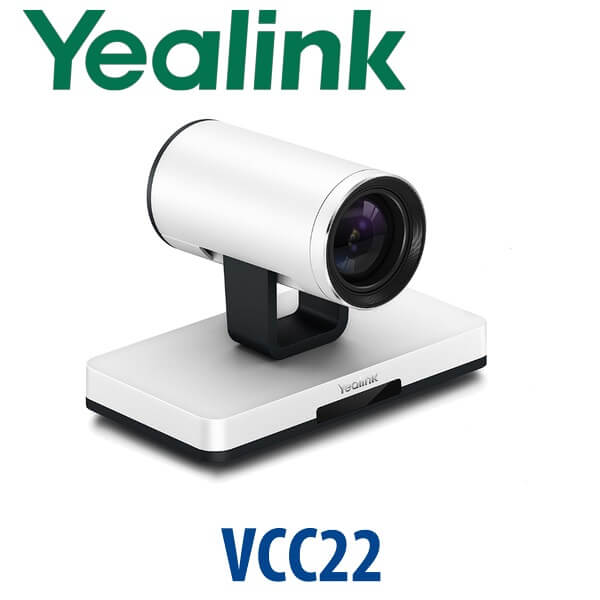

Yealink VCC22 Video Conferencing Camera Oman

Yealink VCC22 , Oman, the Yealink’s next-gen video conferencing camera, is designed for Yealink VC800 Video Conferencing System with striking 1080p60 quality and developed optics. It has an HD CMOS sensor plus 12X optical zoom which power the Yealink VCC22 HD PTZ and deliver high-definition capture of up to 1080p60, presenting professional video images and excellent multi-environment adaptability. Yealink VC800 supports up to 8 Yealink VCC22 cameras, developing a typical Yealink 1 8 multi-camera solution. Yealink dead-zone-free solution is suitable for every large meeting room and auditorium, and it can send one multi-image video to the far side by piecing different video images from different cameras together. Furthermore, it supports various video layouts, including onePlusN, N*N, full screen, you can control the cameras or adjust camera layout by CTP20 collaboration touch panel, CP960 conference phone, remote control, or control device, minus any pricey video matrix. Yealink VCC22 supports PoE, which brings simple and easy deployment by connecting to PoE switch via standard RJ45 network cable (up to 100-meter long). In this way, power supply, video data transmission, and signal control unify as one, sharply reducing the complex installation procedures as well as the costly expenses.

Yealink VCC22 Oman is a 1080p video conferencing camera for use with the Yealink 800 and Yealink 880 video conferencing systems. Yealink VCC22 features 12x optical zoom plus full pan and tilt functionality. Designed for large conference rooms and board rooms, Yealink VCC22 has a wide but not too wide 70° horizontal field of view. The camera automatically adjusts focus, exposure, and white balance. Yealink VCC22 is designed to connect to a PoE switch. From the switch, you connect to the video conferencing codec. Because of this split installation system, you’re able to connect up to 9 Yealink VCC22 cameras to a single video conferencing codec using a single cable running from switch to codec. And because it’s connected to a PoE switch, you don’t need a separate power supply for the camera.

Specifications

  • Interfaces :  1x HDMI, 1x RJ45
  • Power over Ethernet (PoE), IEEE 802.3af
  • Full HD 1080p60 video quality
  • Power supply/video/control three-in-one
  • 1 8 multi-camera solution with VC800
  • Multi-camera image splice
  • Camera layout adjustment
  • Sensor :  1/3″ HD CMOS
  • Video Resolution :  up to 1920×1080 at 60fps
  • Field of View :  70° H x 42° V
  • Minimum Illumination :  0.5 lux
  • Pan :  ±100°
  • Tilt :  ±30°
  • Zoom :  12x optical
  • 12x optical, Pan/Tilt/Zoom functionality
  • Up to 99 presets
