Description

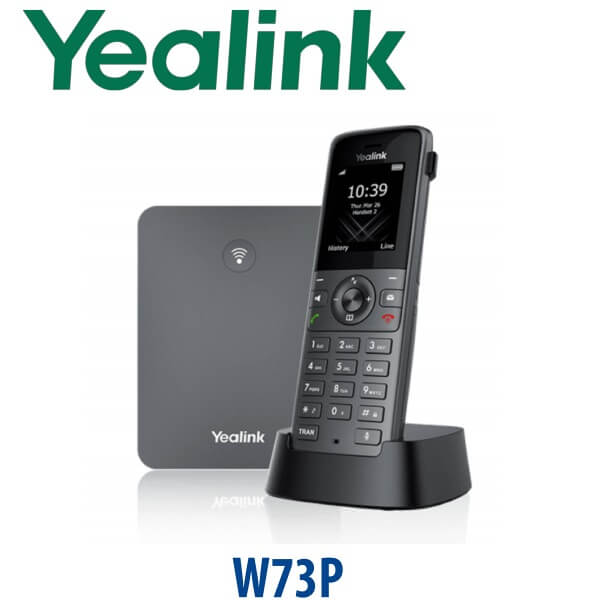

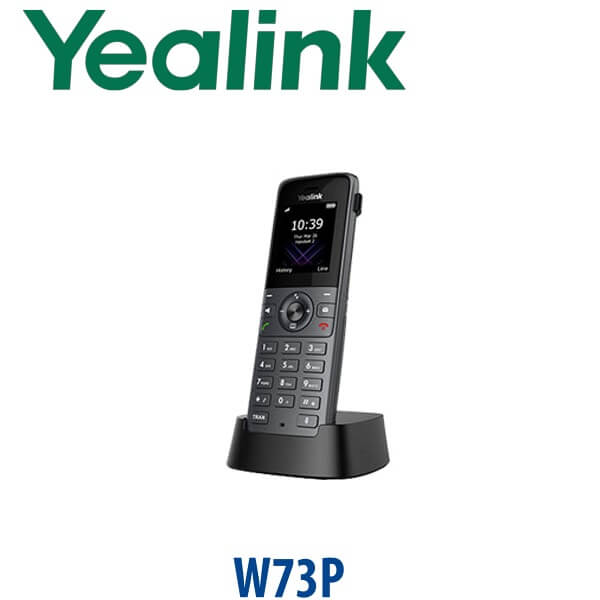

Yealink W73P SIP Cordless Phone System Oman

The Yealink W73P Oman is a powerful SIP wireless phone system which allows for adding of up to 10 Yealink DECT W73H handsets for maximum efficiency. It is specifically designed to meet the needs and requirements of small and medium-sized businesses(SMBs). The Yealink W73P Oman delivers highly flexibility so you can enjoy maximum freedom and mobility. It also significantly eliminates extra wiring troubles as well as charges. The high performance wireless phone system is equipped with many advanced features including support for up to 10 SIP accounts and 20 simultaneous calls. Yealink W73P Oman improves signal strength and responsiveness to provide a stable and good experience for your mobile communications.

W73P Key Features

High-performance SIP cordless phone system
1.8″ 128 x 160 TFT colour screen with intuitive user interface
Up to 20 simultaneous calls
Up to 10 DECT cordless handsets
Up to 10 SIP accounts
Support Opus audio codec
Noise Reduction System
FNR (Flexible Noise Reduction)
Up to 35-hour talk time (in ideal conditions)
Up to 400-hour standby time (in ideal conditions)
Quick charging : 10-min charge time for 2-hour talk time
TLS and SRTP security encryption
Headset connection via 3.5 mm jack
Charger wall mountable
Crystal Clear Audio
- Yealink W73P Omansupports Opus Codec, and therefore has the capability to deliver excellent and professional audio quality in both high-bandwidth and poor network conditions, as compared to other wideband or narrowband audio codecs. It offers the convenience of cordless with a simple add-on device without losing the SIP features and delivers a seamless call management plan for its users throughout. Owning more functions, lines and mobility, it empowers users with the convenience of wireless communication along with the widely accepted benefits and feature richness of Voice-over-IP telephony.
Easy Mass Deployment
- The Yealink DECT IP phone W73P supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes it simple to deploy, easy to maintain and upgrade, saving even more time and IT costs for businesses.
DECT Technology
- Yealink DECT technology is based on CAT-iq2.0, which focuses on high quality Audio VoIP (wideband), as well as low bit rate data applications.
High Expandability
- The Yealink W73P Oman is a powerful SIP cordless phone system which allows for pairing of up 10 Yealink W53H DECT handsets for maximum efficiency. This not only eliminates wiring troubles and extra charges, but also delivers you with maximum mobility and flexibility. Yealink W73P Omansupports up to 10 VoIP accounts and allows for up to 20 simultaneous calls. What’s more, it also speeds up its start-up and signal connection, and minimizes its upgrade downtime as well so you don’t have to stop working due to power interruptions.

Yealink W73P Technical Specifications

Phone Features

Up to 20 simultaneous calls
Up to 10 handsets
Up to 10 SIP accounts
Up to 2 simultaneous calls per handset
Up to 5 repeaters per base station (RT20U)
Up to 6 repeaters per base station (RT30)
Handset selection for receiving call
Handset and number selection for placing call
Paging, intercom, auto answer, dial plan
Call hold, call transfer, 3-way conference
Switching between calls
Call waiting, mute, silence, DND
Caller ID with name and number
Anonymous call, Anonymous call rejection
Call forward (always/busy/no answer)
Speed dial, voicemail, redial
Message Waiting Indication (MWI)
Music on hold (server-based)
Local phonebook for up to 1000 entries(store in the base)
Remote phonebook/LDAP/XML phonebook
Phonebook search/import/export
100 call history per handset : All/Placed/Missed/Received
Direct IP call without SIP proxy
Reset to factory, reboot
Keypad lock, emergency call
Broadsoft directory, BroadSoft call log
Broadworks feature key synchronization
Shared Call Appearance (SCA)
XML browser

Personalization

9 ringer melodies
Screen saver
Multilingual user interface

Management

Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
Auto-provision with PnP
Handset upgrade : OTA (Over-The-Air)
Configuration : browser/phone/auto-provision
Trace package and system log export

Audio Features

Full-duplex speakerphone
Hearing Aid Compatibility (HAC) compliant
FNR (Noise Cancellation)
Receiver volume control : 5 steps
Ringer volume control : 5 steps+off
Multiple advisory tones
Acoustic warning for low battery status
DTMF
Wideband codec : Opus, AMR-WB (optional), G.722
Narrowband codec : PCMU, PCMA, G.726, G.729, G.729A, iLBC
VAD, CNG, AGC, PLC, AJB
AEC (supported by W73H)
Support VQ-RTCPXR (RFC6035), RTCP-XR

Security

Open VPN
Transport Layer Security (TLS)
HTTPS (server/client), SRTP (RFC3711)
Digest authentication
Secure configuration file via AES encryption
Support SHA256/SHA512/SHA384
Three-level configuration mode : Admin/Var/User

DECT

Frequency bands : 1880 1900 MHz (Europe), 1920 1930 MHz (US)
DECT Standards : CAT-iq2.0

Interface

1 x RJ45 10/100M Ethernet port
Power over Ethernet (IEEE 802.3af), Class 1
Headset jack (3.5 mm)

Physical Features

Indoor Range : 50m (in ideal conditions)
Outdoor Range : 300m (in ideal conditions)
Standby Time : 400 hours (in ideal conditions)
Talk Time : 35 hours (in ideal conditions)
1.8″ 128 x 160-pixel TFT colour display
Desktop or wall mountable
LCD backlight, key backlight
Energy-saving ECO mode/ECO Mode+
Backlit keypad with 25 keys :
- Standard ITU telephone keypad, 12 keys, 4×3, with star and pound key
- 5 navigation keys (left, right, up, down, OK)
- 2 softkeys
- 6 function keys (Speaker, message, Off-hook, Cancel, TRAN, Mute)
6 shortcut keys
Three LED indicators on W70B :
- 1 x Registration LED
- 1 x Network Status LED
- 1 x Power Indicator LED
External Yealink AC adapter：AC 100-240V Input and DC 5V/0.6A Output
Colour : Handset : Space Grey; Base : Classic Grey
Handset size : 144.5 mm x 48 mm x 21 mm
Base station size : 130mm x 100mm x 25.1mm
Operating humidity : 10~95%
Operating temperature : -10~+50°C (+14~122°F)
Storage temperature : -30 ~ 70°C (-22 ~ 158°F)

Package Features

Package content :
- W73H Handset
- W70B Base Station
- Base Stand
- Charger Cradle
- Two Power Adapters
- Ethernet Cable
- Belt Clip
- Rechargeable Battery
- Quick Start Guide
Qty/CNT : 10 PCS
Giftbox size : 502mm x 362mm x 215mm
Carton meas : : 205mm x 176mm x 95mm
N.W : 6.854Kg
G.W : 7.53Kg
