Description

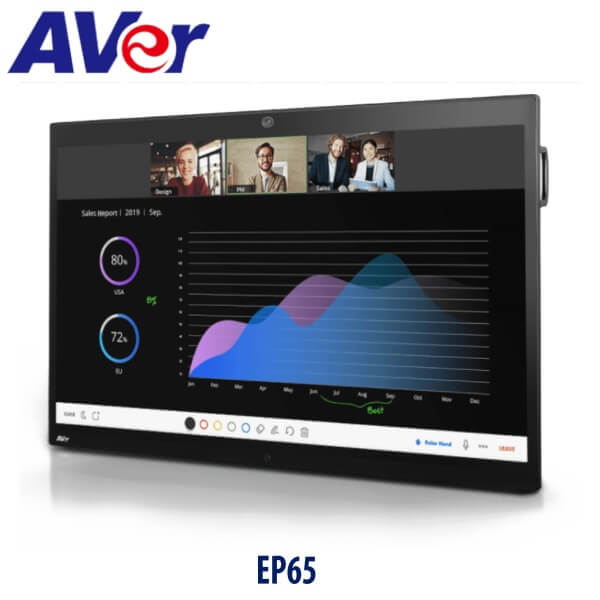

Aver EP65 Touch Panel Oman

Efficient management and minimal maintenance improve your conferencing experience. The AVer EP65 Oman is equipped with a removable PC module that features a Windows 10 IoT Intel i7-7700 Processor and is seamlessly integrated with Zoom Rooms software. It is very easy to install the AVer EP65, Just plug in a single power cable, and you’ll be ready to work in one second.

The Aver EP65 Oman can replace complicated cross-platform setups and save time for meeting preparation. Experience lifelike meetings with partners, no matter how far apart you are. The AVer EP65 Oman is embedded with a Sony Exmor™ 4K CMOS sensor and a 13-element mic array to provide super-sharp video and crystal-clear audio.

Develop an agile workplace and keep everyone on the same page. Brainstorm, interact, take notes, annotate on a shared screen, or enable split-screen multitasking with the AVer EP65’s 4K P-CAP touch panel with 20 touches.

Technical Specifications

Display Panel

• Screen size : 65 in
• Resolution : 4K Ultra HD 3840 × 2160
• Display ratio : Landscape 16 : 9
• Brightness : 350 cd/m2
• Contrast ratio : 1200 : 1
• Response time : ≦9 ms
• Frame rate : 60 Hz
• Viewing angle : 178º
• Lifetime : Up to 30,000 hrs
• Sensing type : Projected capacitive
• Touchpoints : 10 points for writing, 20 points for
• touch, 10 points for Zoom Rooms Whiteboard
• Touch-screen writing tool : Finger or active capacitive pen
• Communication interface : Full-speed USB
• Touch interface : USB 2.0 type B
• Touch pen : Active pen
• Glass coating : Anti-Fingerprint and Anti-glare
• Surface hardness : Toughened glass (level 7 MoHS)

Camera

• Sensor : Sony Exmor™ 4K CMOS sensor
• Frame rate : 4K Ultra HD at 25 fps, up to Full HD 1080p60
• Field of view : 94° diagonal, 85° horizontal, 55° vertical
• Lens : Fixed
• Lens focal length : 3.37 mm ±5%
• Lens F# : 2.8
• S/N ratio : >50 dB
• Minimum illumination : 1.4 l x (50 IRE, F 2.8, shutter 1/30)
• 2D noise reduction : Yes
• Camera angle : -20° tilt embedded camera

Microphone

• Microphone array : 13-element microphone array
• Sensitivity : -26 dBFS
• SNR : 65 dB
• Sensitivity tolerance : ±1 dB

Speaker

• Type : Built-in
• Power output : 12 W × 2

Physical Specs & Dimensions

• Dimensions : 1491 × 958 × 88 mm
• Net weight : 43 kg (PC module not included)
• Gross weight : 59.46 kg
• Wall-mount screw : M8 × 25 mm
• VESA : 600 × 400 mm (4 x M8)
• Handles : 2
• Touch-pen holder : 1

Connectivity

HDMI 2.0 in x 2, touch USB-B x 2, VGA in x 1, audio in x 1, audio out x 1, S/PDIF x1, AV in x1, USB 2.0 x 4 (service only), USB 3.0 (service only), RS-232 x 1,RJ45 x 1, PC module slot x 1
