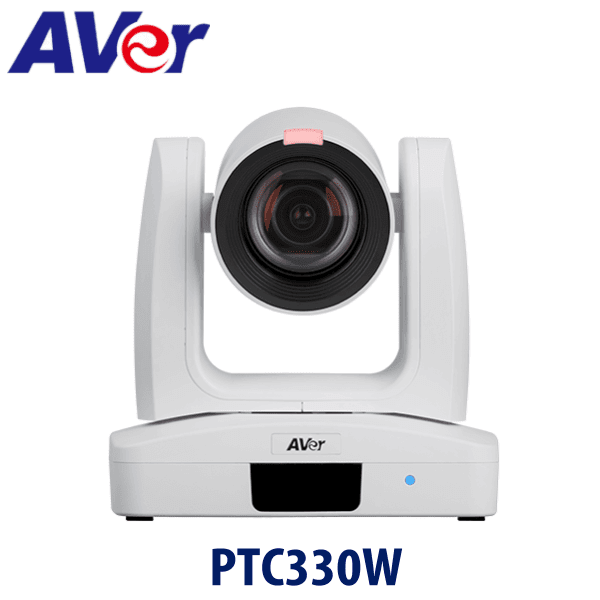

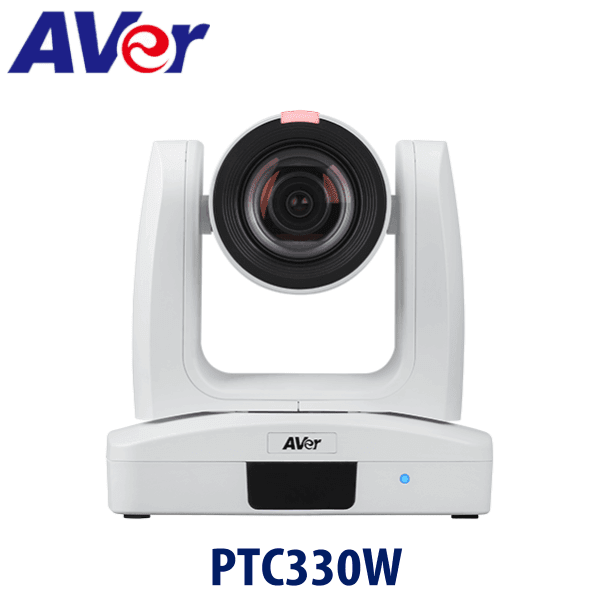

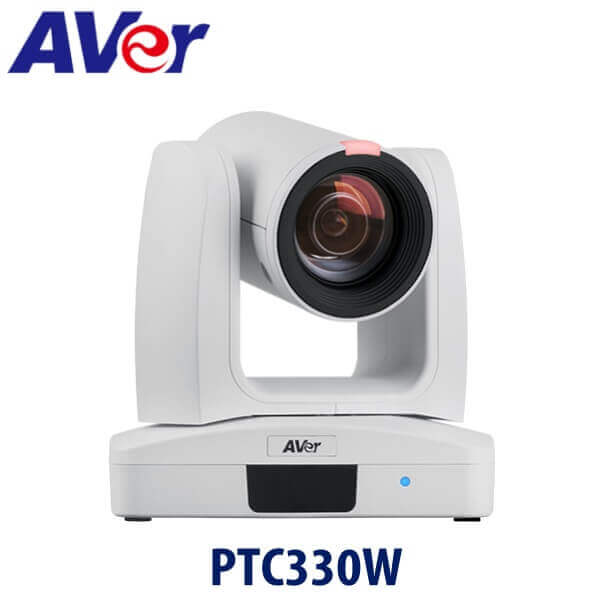

Aver PTC330W Oman

Equipped with Full HD 1080p resolution, this video conferencing system provides ultra-precise auto tracking. The Aver PTC330W Oman also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.

Description

Aver PTC330W AI Auto Tracking Camera Oman

The Aver PTC330W Oman AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC330W Kano, Oman features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 30X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording.

AVer PTC330W Features :

Full HD 1080p Resolution
30X Optical Zoom
IP/HDMI/3G-SDI/USB
Human Detection AI
Presenter Mode
Zone Mode
Intuitive Web UI
Upside-Down Installation

Full HD 1080p Output Resolution

30X Optical Zoom & 2X Sensor Zoom

The zoom power of the Aver PTC330W Oman camera reaches an incredible 60X (30X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the Aver PTC330W Oman.

Human Detection AI

Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables Aver PTC330W Oman to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.

Click & Track

Redirect focus in an instant with the Aver PTC330W Oman. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.

Presenter Mode

Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode

Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

Specifications

Camera

Image Sensor : 1/2.8″ 1080p Exmor CMOS
Effective Picture Elements : 2 Megapixels
Output Resolutions : 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination : 0.7 lux (IRE50, F1.6, 30fps)
S/N Ratio : ≥ 50dB
Gain : Auto, Manual
TV Line : 900 (Center)
Shutter Speed : 1/1 to 1/10,000 sec
Exposure Control : Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance : Auto, Manual
Optical Zoom : 30X
Digital Zoom : 12X
Sensor Zoom : 2X
Viewing Angles :
- DFOV : 72.9° (Wide) to 2.64° (Tele)
- HFOV : 65.1° (Wide) to 2.34° (Tele)
- VFOV : 38.4° (Wide) to 1.36° (Tele)
Focal length : f = 4.3 mm (Wide) to 129 mm (Tele)
Aperture (Iris) : F = 1.6 (Wide) to 4.7 (Tele)
Minimum Working Distance : Wide : 0.01 m, Tele : 1.2 m
Pan/Tilt Angles : Pan : ±170°, Tilt : +90° / -30°
Pan/Tilt Speed (Manual) : Pan : 0.1° to 100°/sec, Tilt : 0.1° to 100°/sec
Preset Speed : Pan : 200°/sec, Tilt : 200°/sec
Preset Positions : 10 (IR), 256 (RS-232 / RS-422 / IP)
Camera Control – Interfaces : RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control – Protocols : VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
Image Processing : Noise Reduction (2D / 3D), Flip, Mirror
Power Frequencies : 50Hz / 60Hz

AI Auto Tracking Functions

Tracking Modes : Presenter Mode, Zone Mode, Hybrid Mode

Audio

Channel : 2ch Stereo
Codecs : AAC-LC (48 / 44.1 / 32 / 24K)
Sample Rates : 48 / 44.1 / 32 / 24 / 16 / 8 KHz

Interface

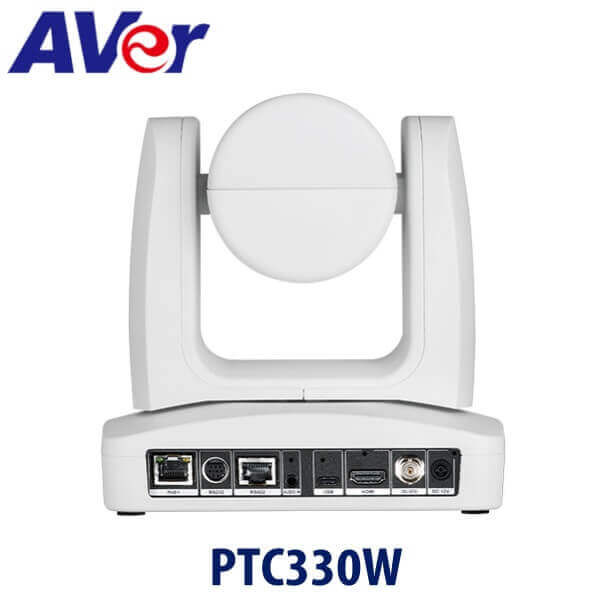

Video Outputs : 3G-SDI, HDMI, IP, USB
Audio Outputs : 3G-SDI, HDMI, IP, USB
Audio Inputs : MIC in, Line in

General

Power Requirement : AC100V – AC240V to DC12V/5A
Power Consumption : 18W
PoE : PoE+
Dimensions (W x H x D) : 180.0 x 183.5 x 145.0 mm
Net Weight : 1.7 (±0.1) kg
Application : Indoor
Tally Lamp : Yes
Security : Kensington Slot
Remote Control : Infrared
Operating Conditions : Temperature : 0°C to +40°C ; Humidity : 20% to 80%
Storage Conditions : Temperature : -20°C to +60°C ; Humidity : 20% to 95%

IP Streaming

Resolution : 1080p 60fps
Network Video Compress Formats : H.264, H.265
Maximum Frame Rate : 1080p 60fps
Bit-rate Control Modes : VBR, CBR (selectable)
Range of Bit-Rate Setting : 512 Kbps to 32 Mbps
Network Interfaces : 10 / 100 / 1000 Base-T
Multi-Stream Capability : 2 (RTSP / Web Page), 1080p 60fps (max.)
Network Protocols : IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
NDI|HX Capability : N/A

USB

Connector : USB 3.0
Video Format : MJPEG
Audio Format : PCM
Maximum Video Resolution : 1080p
USB Video Class : UVC1.1
USB Audio Class : UAC1.0

Web UI

Live Video Preview : Yes
Camera PTZ Control : Pan, Tilt, Zoom, Focus, Preset Control
Camera/Image Adjustment : Exposure, White Balance, Picture
Network Configuration : DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search & Configuration Tool : Support Windows® 7 or later

Warranty

Camera : 3 Years
Accessories : 1 Year
Package Contents : Camera, Remote Control, Power Adapter, Power Cord, Cable Ties (x 5), Screws (x 10), Cable Fixing Plates (x 2), Ceiling Mount Brackets (x 2), Quick Start Guide
Optional Accessories : AVer CL01 PTZ Camera Controller, L-Type Ceiling Mount, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable
