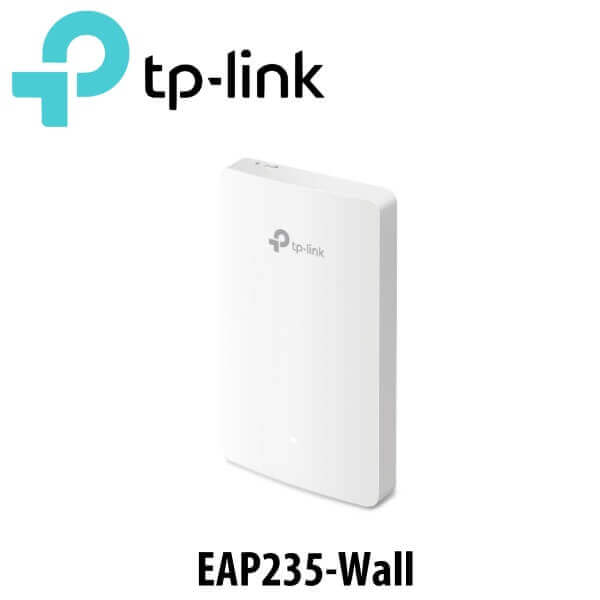

Tplink EAP235-Wall Oman



Tplink EAP235-Wall Oman

The Tplink EAP235-Wall Oman is an Omada wireless MU-MIMO access point. That means the access point is compatible with Omada and that you can control it via the Omada app.

Description

Tplink EAP235-Wall Access Point Oman

The Tplink-EAP235-Wall-Oman is an Omada wireless MU-MIMO access point. That means the access point is compatible with Omada and that you can control it via the Omada app. To separate your work life and private life, you can also easily create a guest network. You don’t need to lay and extra network cable. The Tplink-EAP235-Wall-Oman access point supports Power over Ethernet. It also has 3 Ethernet ports for your IP phone or IP cameras, for example. Note : This access point only works with Power over Ethernet. You need a PoE adapter or suitable switch for this.

Features

  • Fast Dual-Band Wi-Fi : Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
  • Four Gigabit Ports : 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
  • Integrated into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
  • Elegant Appearance : Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
  • Easy Installation and PoE Support : Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
  • Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech : Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

Technical Specifications

HARDWARE FEATURES
Interface Uplink : 1× 10/100/1000 Mbps Ethernet Port
Downlink : 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts /24.4 watts (PoE Out Included)

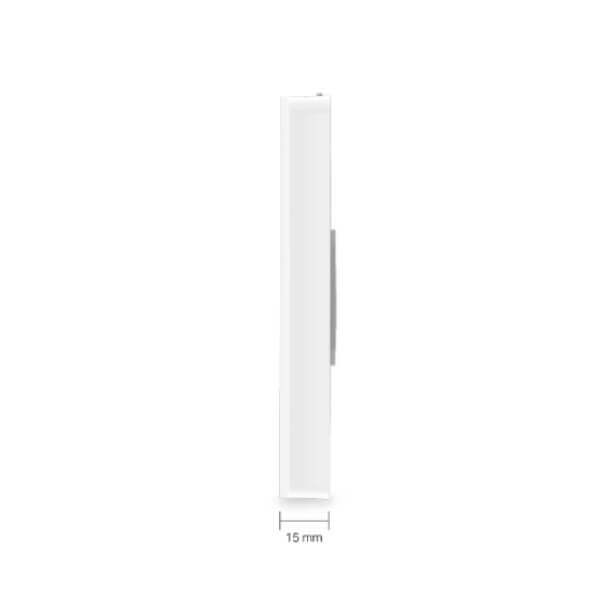

Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas

  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz : Up to 867 Mbps
2.4 GHz : Up to 300 Mbps
Wireless Functions
  • 16 SSIDs (Up to 8 SSIDs on each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • Band Steering
  • Beamforming
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Local LAN port based VLAN
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power CE :

  • ≤20 dBm (2.4 GHz, EIRP)
  • ≤23 dBm (5 GHz, EIRP)FCC :
  • ≤21 dBm (2.4 GHz)
  • ≤21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
  • Installation Guide
  • Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
