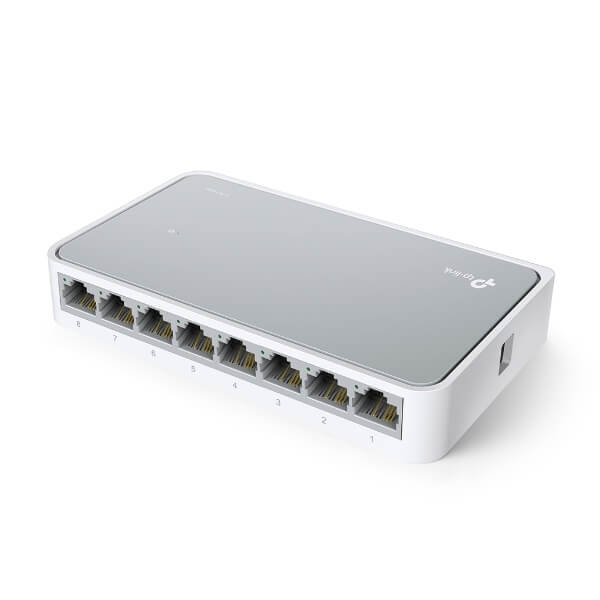

Tplink TL-SF1008D Oman



Tplink TL-SF1008D Oman

Tplink TL-SF1008D Oman Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports.

Description

Tplink TL-SF1008D Network Switch Oman

The Tplink TL-SF1008D Oman is a Fast Ethernet Switch which is designed for SOHO (Small Office/Home Office) or workgroup users. It is integrated with 8 ports, all of which support auto MDI/MDIX, ensuring there’s no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

Features

High Performance

Tplink TL-SF1008D Oman Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, Tplink TL-SF1008D Oman forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

Easy to Use

The auto features of the Tplink TL-SF1008D Oman make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Technical Specs

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Interface 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply 100-240VAC, 50/60Hz
(Output : 9VDC / 0.6A)
Buffer Size 768Kb
Data Rates
  • 10/100Mbps at Half Duplex ;
  • 20/200Mbps at Full Duplex
LED Indicator
  • Power
  • Port network activity (on the network module)
Dimensions ( W x D x H ) 5.3 × 3.1 × 0.9 in.
(135 × 79 × 23mm)
Max Power Consumption 2W
Max Heat Dissipation 7.0 BTU/h
SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions
  • Green Technology
  • 802.3X Flow Control, Back Pressure
OTHERS
Certification FCC, RoHS
Package Contents
  • 8-Port 10/100Mbps Desktop Switch
  • Power Adapter
  • User Guide
Environment
  • Operating Temperature : 0°C~40°C (32°F~104°F);
  • Storage Temperature : -40℃~60℃ (-40℉~140℉);
  • Operating Humidity : 10%~90% non-condensing;
  • Storage Humidity : 5%~90% non-condensing
