Description

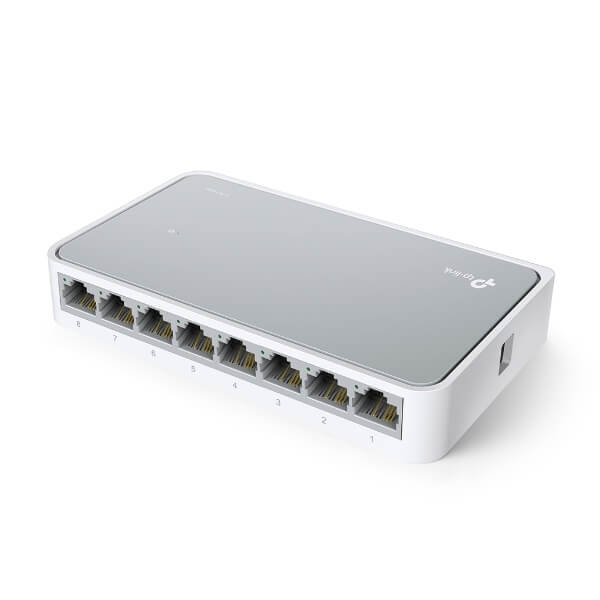

Tplink TL-SF1008D Network Switch Oman
The Tplink TL-SF1008D Oman is a Fast Ethernet Switch which is designed for SOHO (Small Office/Home Office) or workgroup users. It is integrated with 8 ports, all of which support auto MDI/MDIX, ensuring there’s no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.
Features
High Performance
Tplink TL-SF1008D Oman Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, Tplink TL-SF1008D Oman forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
Easy to Use
The auto features of the Tplink TL-SF1008D Oman make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Technical Specs
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| Interface | 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | 100-240VAC, 50/60Hz (Output : 9VDC / 0.6A) |
| Buffer Size | 768Kb |
| Data Rates |
|
| LED Indicator |
|
| Dimensions ( W x D x H ) | 5.3 × 3.1 × 0.9 in. (135 × 79 × 23mm) |
| Max Power Consumption | 2W |
| Max Heat Dissipation | 7.0 BTU/h |
| SOFTWARE FEATURES | |
| Transfer Method | Store and Forward |
| Advanced Functions |
|
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents |
|
| Environment |
|
