Description

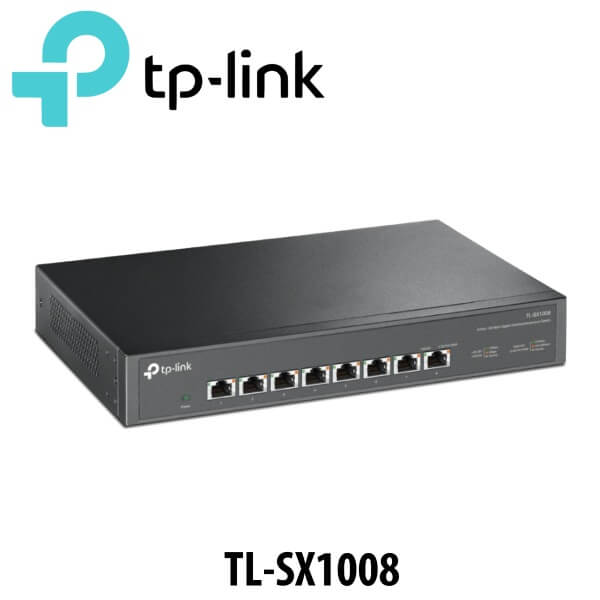

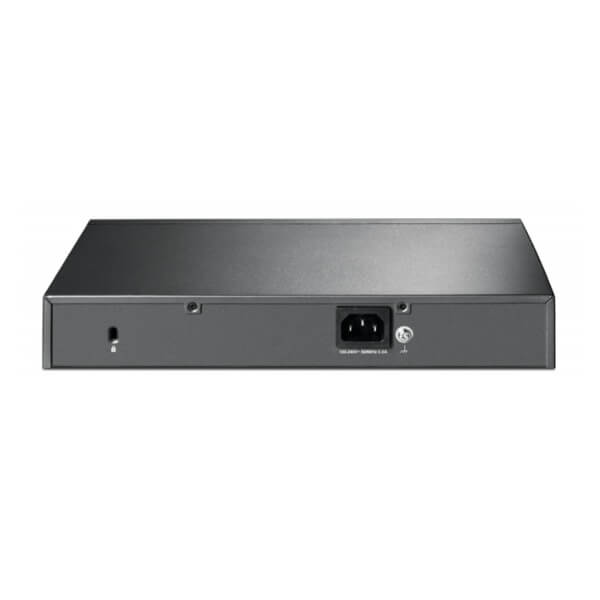

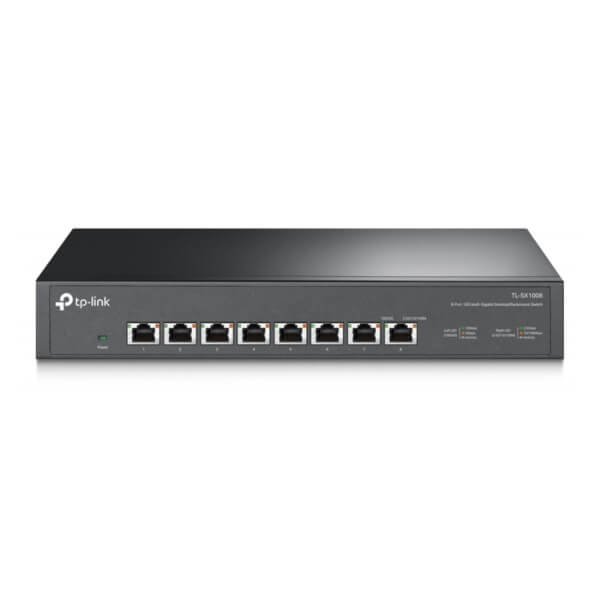

Tplink TL-SX1008 Network Switch Oman
Expand your office or home network capacity to support high-speed connections with the Tplink TL-SX1008 Oman 8-Port 10G Unmanaged Network Switch. Featuring eight 10G Ethernet ports with a 160 Gb/s switching capacity and 119 Mbps forwarding rate, this high-performance switch is designed to deliver exceptionally fast data transfers between compatible computers, storage devices, Wi-Fi 6 access points, and more. Additionally, the Tplink TL-SX1008 Oman’s high-speed, low-latency connections—combined with game traffic prioritization QoS—make it ideal for e-sports other LAN-based gaming events. Its ports are backward compatible with slower Ethernet speeds. With its plug-and-play design, simply connect this unmanaged desktop or rack-mounted switch to compatible devices and you’re ready to go. The metal chassis and cooling fan help to ensure optimal temperatures and quiet operation.
Features
- Eight 10 Gbps Ports. 8× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity.
- Lightning-Fast Connections. Tplink TL-SX1008 Oman provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
- Ideal for Various Scenarios. Tplink TL-SX1008 Oman is built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment.
- Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
- Low-Noise Operation. Smart fan speed adjustment ensures minimal noise to be non-distracting when use.
- Wide Operation Temperature. Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50 ℃).
- Plug and Play. Allows for easy deployment without the need for a technician.
Technical Specs
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
Interface | 8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
Fan Quantity | 1 smart fan with adjustable speed |
External Power Supply | 100–240 VAC, 50/60 Hz, 0.8A |
LED Indicator | System Power : 1 |
Link/Act Indicators : 8, 1 indicator per port built into each RJ-45 port | |
Dimensions ( W x D x H ) | 11.6×7.1×1.7 in |
(294×180×44 mm) | |
Max Power Consumption | 31.2 W |
PERFORMANCE | |
Switching Capacity | 160 Gbps |
Packet Forwarding Rate | 119.0 Mpps |
MAC Address Table | 32 K |
Packet Buffer Memory | 2 Mb |
Jumbo Frame | 10 KB |
SOFTWARE FEATURES | |
Advanced Features | 802.3X Flow Control |
802.1p/DSCP QoS | |
Transfer Method | Store and Forward |
OTHERS | |
Certification | CE, FCC ,RoHS |
Package Contents | 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008 |
Power Cord | |
Installation Guide | |
Rackmount Kit | |
Rubber Feet | |
Environment | Operating Temperature : 0–50 °C (32–122 °F) |
Storage Temperature : -40–70 °C (-40–158 °F) | |
Operating Humidity : 10–90% RH non-condensing | |
Storage Humidity : 5–90% RH non-condensing |
