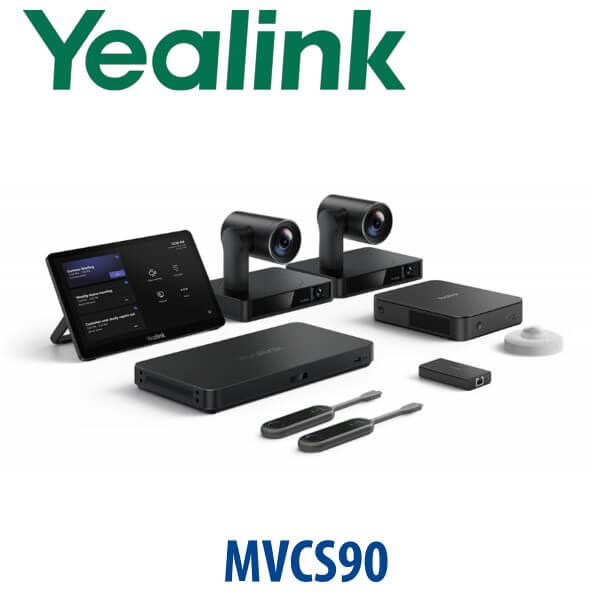

Yealink MVCS90 Video Conferencing System Oman

The Yealink MVCS90 Oman is specifically designed to provide an exceptional audio and video communication experience in large conference rooms. It includes a unique package that includes advanced components such as the high-performance MINI-PC MCore Pro, user-friendly touch panel MTouch Plus, intelligent 4K PTZ camera UVC86, and versatile AVHub for seamless audio and video processing. With AVHub, users have the ability to customize screen layouts and take advantage of Yealink’s exclusive multi-camera solution, which supports up to 9 cameras simultaneously and offers multi-speaker tracking with voice activation. Additionally, the Yealink MVCS90 Oman offers a user-friendly interface that does not require any technical expertise.

Key Features :

Comprehensive Package of Advanced Components
Multi-camera Solution with AVHub
Flexible Integration and Networking
Purpose-built for Extra-large Conference Rooms

The Yealink MVCS90 Oman set includes two UVC86 cameras with 12x optical zoom and intelligent tracking, and the MTouch Plus control panel allows for independent camera control and layout switching via Yealink RoomConnect. Integration with the MVC-BYOD Extender via USB cable turns a Microsoft Teams meeting room into a multi-functional space, and multiple MVC S90 series sets can be networked together to create a flexible conference room system that can adapt to changing needs.

Technical Specifications

Package Content

MCore Pro, Gen-3 Mini-PC
MTouch Plus, Gen-3 touch panel
AVHub, audio and video processor
2 x UVC86 USB PTZ camera
2 x WPP30 wireless presentation pod
RoomSensor, meeting room sensor

Preload

Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
Windows 10 IoT Enterprise License
Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
Yealink RoomConnect

MCore Pro, Gen-3 Mini-PC

11th Gen Intel® Core i5
Memory : 8 GB (2 x 4GB)
Storage : 128 GB SSD
3x HDMI video output with CEC supported
TPM2.0
Kernel DMA
EDID
Wi-Fi : IEEE 802.11 a/b/g/n/ac/ax
Bluetooth : BT 5.2
1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
4 x USB 3.0 Type-A
1 x 10/100/1000M Ethernet port
1 x Power port
1 x Security lock slot, Integrated cable management

MTouch Plus

11.6-inch narrow bezel IPS display
1920 x 1080 video resolution
Angle between screen and desktop (30° ~ 70°)
Adjustable angle of support frame (50° ~ 180°)
Support wired and wireless (with WPP30) content sharing
Support multi-screen control*
Support third-party screen sharing*
Support wireless BYOD*
Support external PD power supply to power the sharing device
Support HDMI/USB-C video input
Support desktop placement, desktop fixed, wall-mounted deployment
*This feature will be supported in future versions

RoomSensor

Detection angle : 120°
Adjustable detection angle : ±20°
Operating temperature : 0-40℃
Operating humidity : 10-95%
Power : Battery powered, 4 year life

AVHub, audio and video processor

2 x USB-A port
1 x USB-B port
1 x Codec port
7 x Yealink VCH port (RJ-45)
1 x RCA in/out interface
1 x 6.3mm Line in interface
1 x 6.3mm Line out interface
1 x power interface
Dividable and merging meeting rooms are supported
Support intelligent multi-speaker tracking

UVC86 USB PTZ Camera

- 4K Sensor
- 4 × HD zoom (12x optical, 1.7x digital)
- Angle of view : -90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens) 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
