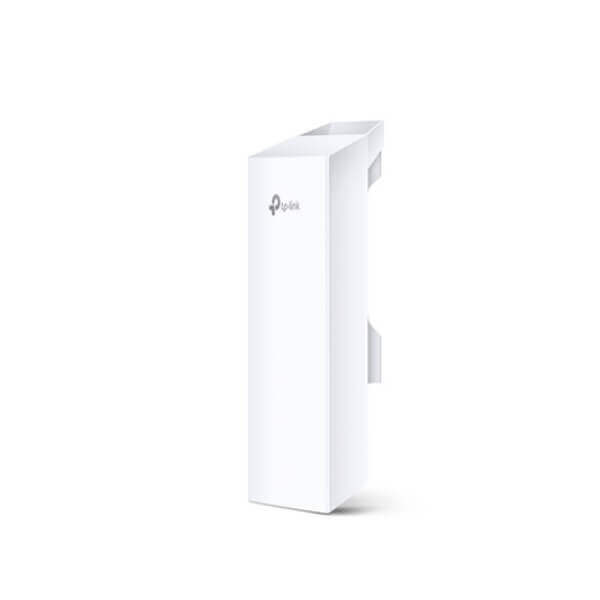

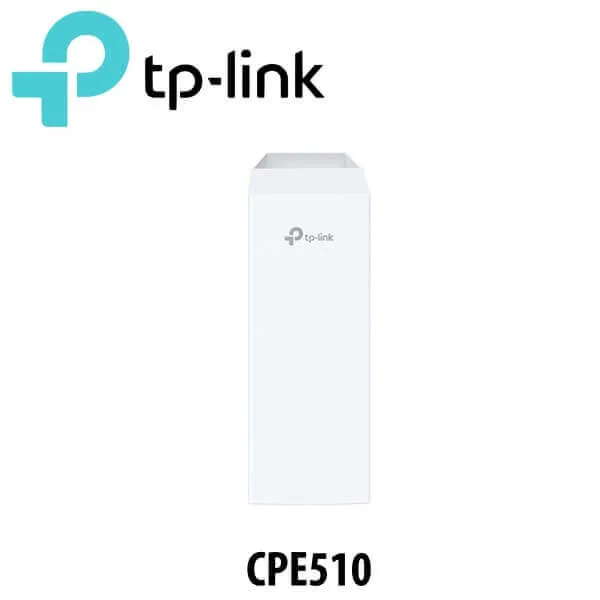

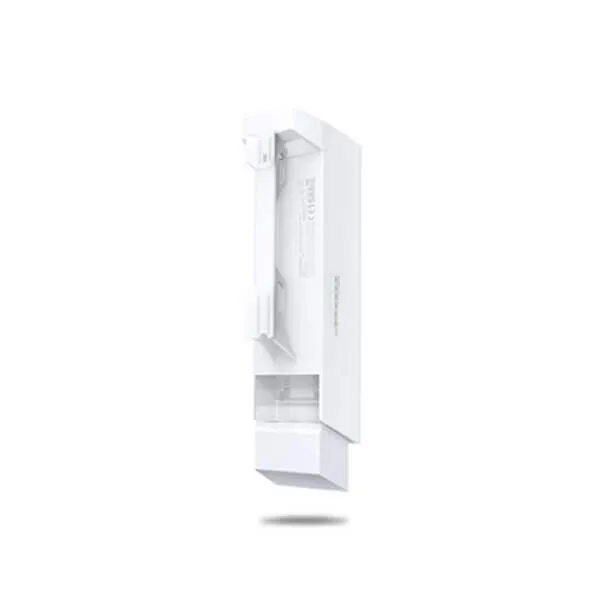

Tplink CPE510 Outdoor Radio Oman
The Tplink CPE510 Oman is a 5GHz 300Mbps 13dBi outdoor radio that is designed to extend network wireless coverage in outdoor scenarios. It is a cost-effective solution that comes with a centralized management application which makes it flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Features
- Built-in 13dBi 2×2 dual-polarized directional MIMO antenna
- Tplink CPE510 Oman supports adjustable transmission power from 0 to 23dBm/200mw
- System-level optimization for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications
- Tplink CPE510 Oman comes with a built-in centralized Management System – Pharos Control that makes it flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Outdoor stabilized enclosure with IPX5 waterproof certification
- Dual Ethernet ports and grounding terminal integrated
- 6KV Lightning Protection, 15KV ESD Protection
- Tplink CPE510 Oman has a passive PoE Adapter that supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
- Tplink CPE510 Oman provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
- Selectable bandwidth of 5/10/20/40MHz
- Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
- Easy antenna alignment with wireless signal quality indicators via Web interface
Technical Specifications :
HARDWARE FEATURES
- Processor : Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
- Memory : 64MB DDR2 RAM, 8MB Flash
- Interface :
- 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
- 1 Grounding Terminal
- 1 Reset Button
- Power Supply :
- Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
- Voltage range : 16-27VDC
- Power Consumption : 10.5 Watts Max
Note : When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. - Dimensions ( W x D x H ) : 224 x 79 x 60 mm
- Antenna Type :
- Built-in 13dBi 2×2 Dual-polarized Directional Antenna
- Beam Width : 45° (H-Plane) / 30° (E-Plane)
- Protection :
- 15KV ESD Protection
- 6KV Lightning Protection
- Enclosure :
- Outdoor ASA stabilized plastic material
- IPX5 waterproof Certification
WIRELESS FEATURES
- Wireless Standards : IEEE 802.11a/n (with Pharos MAXtream disabled)
- Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds :
- Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.2Mbps (10MHz,Dynamic)
- Up to 36.1Mbps (5MHz,Dynamic)
- Frequency : 5.15~5.85GHz
Note : Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. - Transmission Power : 23dBm/200mw (Adjustable power by 1dBm)
Note : Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
- Wireless Configurations :
- Pharos MAXtream TDMA Technology
- 802.11a/n Modes
- Selectable Channel Width : 5/10/20/40MHz
- Automatic Channel Selection
- Transmission Power Control
- Dynamic Frequency Selection (DFS)
- WDS Enable/Disable
- Security : WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging (AP mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced :
- Beacon Interval/RTS Threshold/Fragmentation
- Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
- Management :
- Discovery and Remote Management via Pharos Control application
- HTTP/HTTPS Web-based management
- System Log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
- System Tools :
- Wireless Signal Quality Indicators :
- Signal Strength/Noise/Transmit CCQ/CPU/Memory
- Monitors : Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
- System-level optimizations :
- Optimized IGMP Snooping/Proxy for multicast applications
- Hardware watch dog
POE ADAPTER FEATURES
- Dimensions(W x D x H) : 85.8*43.9*29.7mm
- Input Current : 0.4A Max @ 100VAC
- Input Voltage : 100VA~240VAC @ 50Hz~60Hz
- Output :
- 24VDC, 1.0A Max
- +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
- Efficiency : >84.28%
- Output Voltage : 24VDC(+4,5pins; -7,8pins)
- Power LEDs : Green
- Certifications : CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mar/PSE
- Interfaces :
- 1 AC Jack with Earth Ground
- 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
- 1 10/100/1000Mbps Shielded Ethernet Port (Data)
OTHERS
- Certification : CE, FCC, RoHS, IPX5
- Package Contents :
- Outdoor Wireless CPE
- 24V 0.6A Passive PoE Adapter
- Pole Mounting Straps
- AC Power Cord
- Quick Installation Guide
- System Requirements :
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note : We recommend you to use one of following Web browsers for an improved user experience : Google Chrome, Safari, and Firefox. IE browsers are not recommended. - Environment :
- Operating Temperature : -40°C~70°C (-40℉~158℉)
- Storage Temperature : -40℃~70℃ (-40℉~158℉)
- Operating Humidity : 10%~90% non-condensing
- Storage Humidity : 5%~95% non-condensing
