Tplink CPE710 Oman



Tplink CPE710 Oman

The Tplink CPE710 Oman is powered via passive PoE through its Gigabit Ethernet port and includes a convenient PoE adapter. Configure, manage, and monitor your network using the Pharos Control centralized system.

Category:

Description

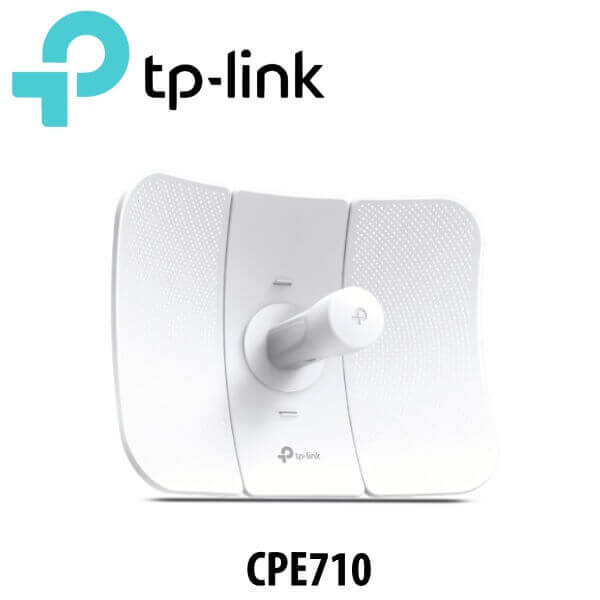

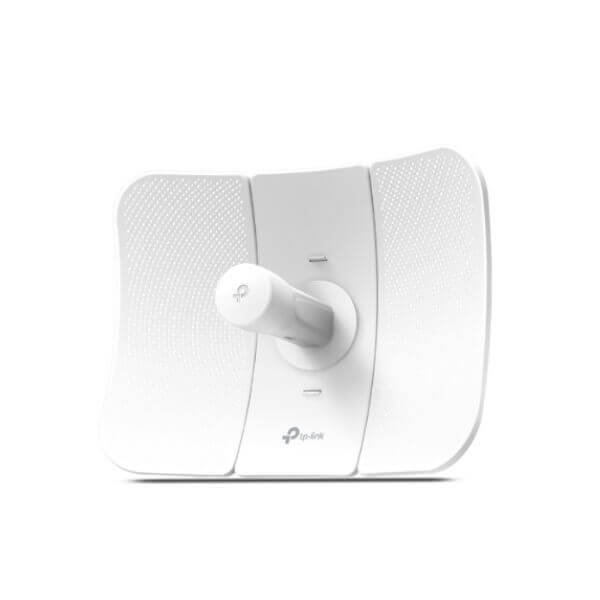

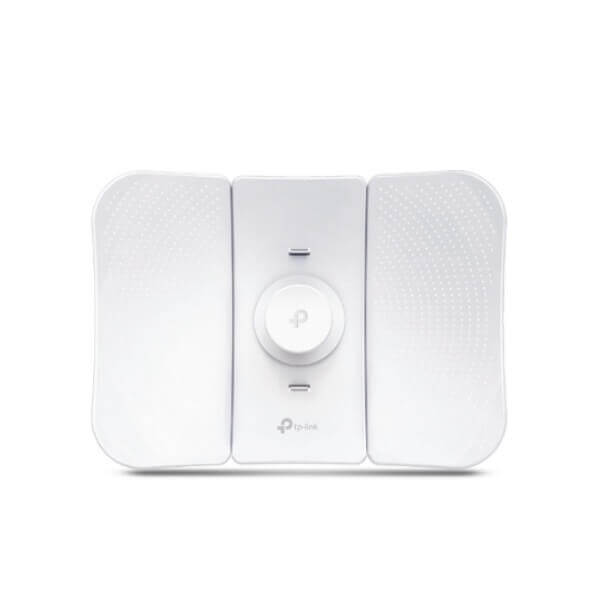

Tplink CPE710 Outdoor Radio Oman

Enhance your business with reliable point-to-point connections between networks over long distances with the Tplink CPE710 Oman 5 GHz Wireless-AC867 Outdoor CPE from TP-Link. Featuring a powerful 23 dBi directional antenna with a dedicated metal reflector and 2 x 2 MIMO technology, this 802.11ac outdoor CPE is designed to cut through noise and transfer up to 867 Mb/s over the 5 GHz frequency. Made primarily from PC stabilized plastic with wind and IP65 weatherproofing, this device can operate in temperatures between -40°F and 150°F. It also has 15kV ESD and 6kV lightning protection. The snap-lock design and included three-axis pole-mounting kit make for quick installation. The Tplink CPE710 Oman is powered via passive PoE through its Gigabit Ethernet port and includes a convenient PoE adapter. Configure, manage, and monitor your network using the Pharos Control centralized system.

Features

Pharos Control Software
The Pharos Control centralized management software is included with the Tplink CPE710 Oman, and it helps users manage devices in their network from a single PC. Its functions include device discovery, status monitoring, firmware upgrading, and network maintenance through a web-based interface.

Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the Tplink CPE710 Oman provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Stable Structural Design and Flexible Installation

Snap-lock parts make assembly simple and convenient. Pole mount kits and the freedom of three-axis alignment facilitate flexible installation. Sturdy design ensures stability in windy conditions

Specifications

Hardware
Ports 1 x 10/100/1000 Mbps Shielded Ethernet Port (PoE)
IEEE Standards IEEE 802.11a/n/ac
Frequency 5 GHz (Single-Band)
MIMO 2 x 2
Antenna Gain 23 dBi
Transmit Power 27 dBm
Antenna Beamwidth 9° (Azimuth) / 7° (Elevation)
Throughput 867 Mb/s (5 GHz)
Processor 750 MHz Qualcomm MIPS 74Kc
RAM 128 MB DDR2
Electrical
AC Power 100 to 240 VAC, 50/60 Hz
DC Power Input 16 to 27 VDC
Environmental
Operating Temperature -40 to 150°F / -40 to 70°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90%
Storage Humidity 5 to 95%
Physical
Protection 15 KV ESD Protection
6 KV Lightning Protection
IP Rating IP65 Water and Dust Proof Design
Material Outdoor PC Stabilized Plastic
Metal
Dimensions 14.4 x 11.0 x 8.1″ / 366 x 280 x 207 mm
Warranty Limited Lifetime Warranty
Packaging Info
Package Weight 3.68 lb
Box Dimensions (LxWxH) 13.1 x 6.25 x 5.45″
