The Tplink EAP225  wireless-AC access point operates on the 802.11a/b/g/n/ac Wi-Fi network standards and operates on both the 2.4 GHz and 5 GHz frequencies supporting data transfer rates of up to 1200 Mb/s.

Description

Tplink EAP225 Access Point Oman

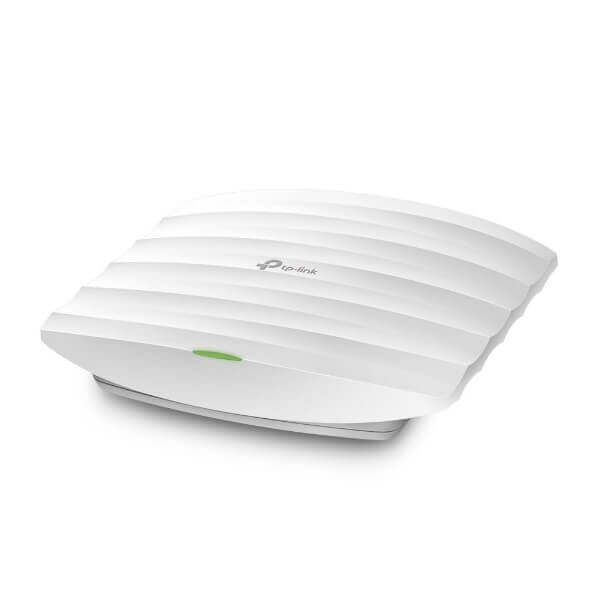

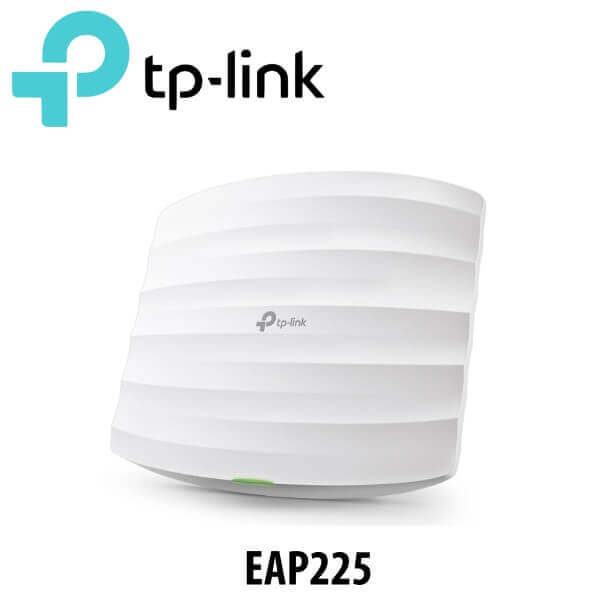

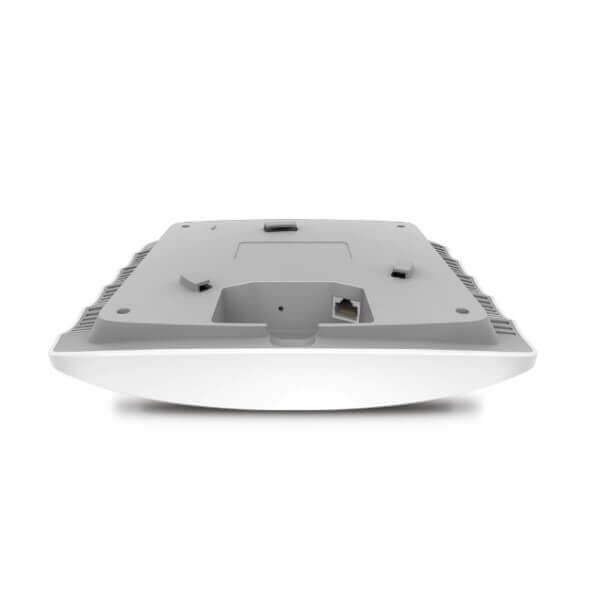

Extend the reach of your Wi-Fi network outdoors with the Tplink EAP225 Oman-Outdoor Wireless AC1200 Gigabit Indoor/Outdoor Access Point from TP-Link. This wireless-AC access point operates on the 802.11a/b/g/n/ac Wi-Fi network standards and operates on both the 2.4 GHz and 5 GHz frequencies supporting data transfer rates of up to 1200 Mb/s. In addition to enhanced wireless coverage and network speeds, this access point is designed to stand up against the elements, thanks to the durable weatherproof housing. Installation is simple, as the EAP225-Outdoor access point comes with both pole- and wall-mounting kits and supports PoE connectivity to eliminate the need to run a standalone power supply to the AP. Once installed, free Omada Controller Software makes it easy to manage this AP as well as hundreds of other APs while the captive portal simplifies the process of authenticating guests.

Features

  • Tplink EAP225 Oman has a durable, weatherproof enclosure for outdoor Wi-Fi applications
  • Up to 1200 Mb/s with 2×2 MIMO technology
  • Tplink EAP225 Oman is fitted with high transmission power and high-gain antennas provide a long-range coverage area
  • Free Omada Controller software enables administrators easily manage hundreds of EAPs
  • Captive portal provides a convenient method for guest authentication
  • Facebook Wi-Fi and SMS authentication help to boost your business
  • Tplink EAP225 Oman features an 802.3af/passive PoE (PoE adapter included) compatible and simple mounting design which allows for flexible deployment and convenient installation

Technical Specs

Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz
Number of Antennas 2
MU-MIMO Support 2 x 2
WLAN Mode Wi-Fi 5 (802.11ac)
Antenna Gain 3 to 4 dBi
Transmit Power 22 to 23 dBm
Supported Protocols
  • MAC Filtering
  • SNMPv1
  • SNMPv2c
  • SSID
  • WMM
Antenna Placement External (Detachable)
Throughput 1200 Mb/s Total

  • 2.4 GHz : 300 Mb/s
  • 5 GHz : 867 Mb/s
Interface
Ports 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Security
Wireless Security WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Management
Operation Modes Access Point
Max SSIDs Supported 16
Hardware
Supported IEEE Standards 802.11ac, 802.11a, 802.11b, 802.11g, 802.11n, 802.1x, 802.3af
Electrical
Power Consumption 10.5 W
Environmental
Operating Temperature -22 to 158°F / -30 to 70°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90%
Storage Humidity 5 to 90%
General
IP Rating IP65
Certifications CE, FCC, RoHS
*as per Manufacturer
Mount Options Pole, Wall
Dimensions 8.5 x 1.8 x 1.1″ / 215.9 x 45.7 x 27.9 mm
Packaging Info
Package Weight 1.4 lb
Box Dimensions (LxWxH) 10.6 x 5.6 x 4″
