Tplink EAP610-Outdoor Oman



Tplink EAP610-Outdoor Oman

Tplink EAP610-Outdoor Oman is integrated with OFDMA and MU-MIMO technologies which greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.

Description

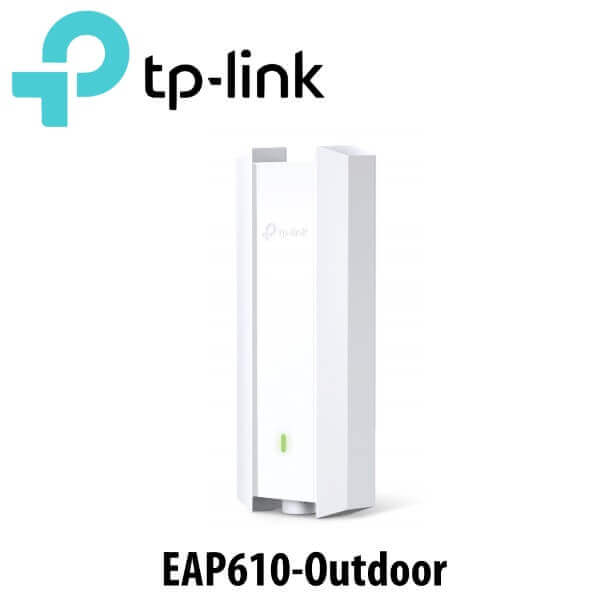

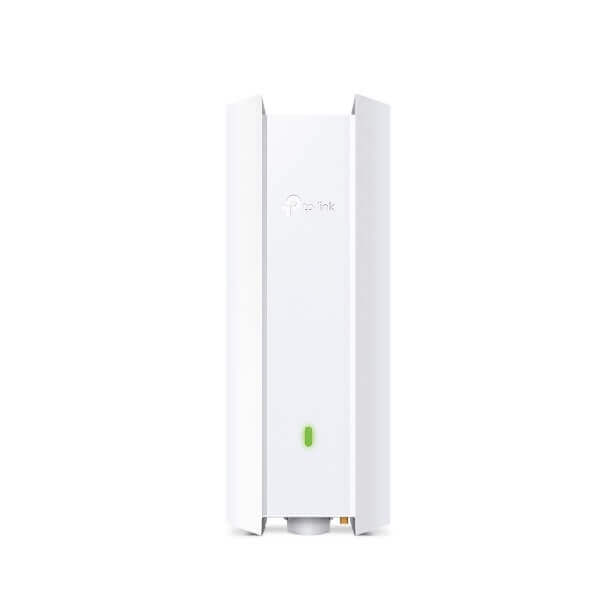

Tplink EAP610-Outdoor Access Point Oman

Powered by the latest Wi-Fi 6 technology, the Tplink EAP610-Outdoor Oman AP delivers speeds of up to 1.8 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks.

Tplink EAP610-Outdoor Oman is fitted with professional antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments. The maximum range reaches up to 200 meters over 2.4 GHz band and 300 meters over 5 GHz band.

Tplink EAP610-Outdoor Oman is also integrated with OFDMA and MU-MIMO technologies which greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.

Features

  • Superior Wi-Fi 6 Speeds : Tplink EAP610-Outdoor Oman delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology
  • Higher Network Efficiency :  Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
  • Long-Range Coverage :  Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
  • Omada Mesh Technology :  Enables wireless connectivity between access points for extended range and flexible deployment
  • Stay Smooth with Fast Roaming :  Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
  • Centralized Cloud Management : Tplink EAP610-Outdoor Oman integrates into Omada SDN for cloud access and remote management

Technical Specs

HARDWARE FEATURES

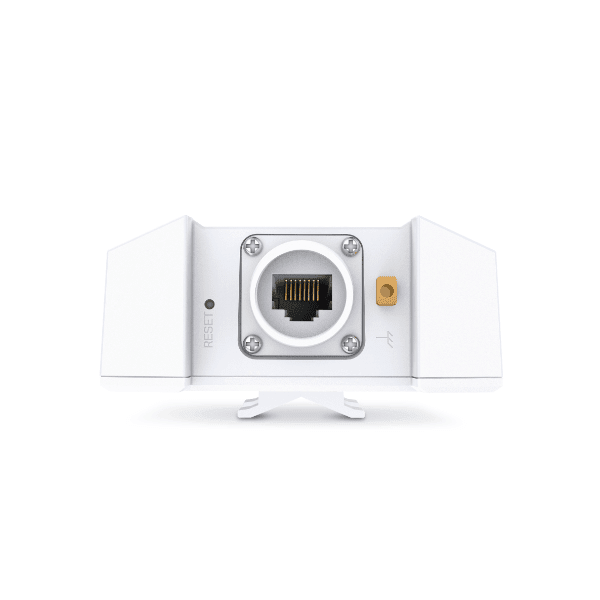

Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button Reset
Power Supply
  • 802.3at PoE
  • 48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption
  • EU : 12.5W (802.3at PoE or Passive PoE)
  • US : 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H ) 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna
  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 5 dBi
Weatherproof Enclosure IP67

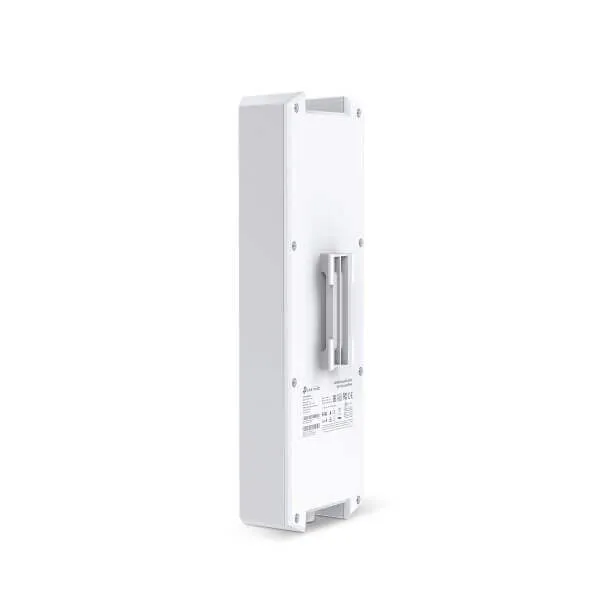

Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz, 5 GHz
Signal Rate
  • 802.11ax : 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
  • 802.11ac : 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
  • 802.11n : 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
  • 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b : 1, 2, 5.5, 11 Mbps
  • 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power
  • CE : <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
  • FCC : <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions
  • 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS (WMM)
  • MU-MIMO
  • Omada Mesh
  • Seamless Roaming
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Access Point EAP610-Outdoor
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kits
  • Waterproof Kits
  • Waterproof Antenna
  • Installation Guide
Environment
  • Operating Temperature : -30–70 ℃ (-22–158 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
