Tplink EAP650 Oman



Tplink EAP650 Oman

Tplink EAP650 Oman is designed with the latest wireless Wi-Fi 6 technology featuring 1024-QAM, HE60 and Long OFDM Symbol, the EAP650 boosts dual-band Wi-Fi speeds up to 2976 Mbps.

Description

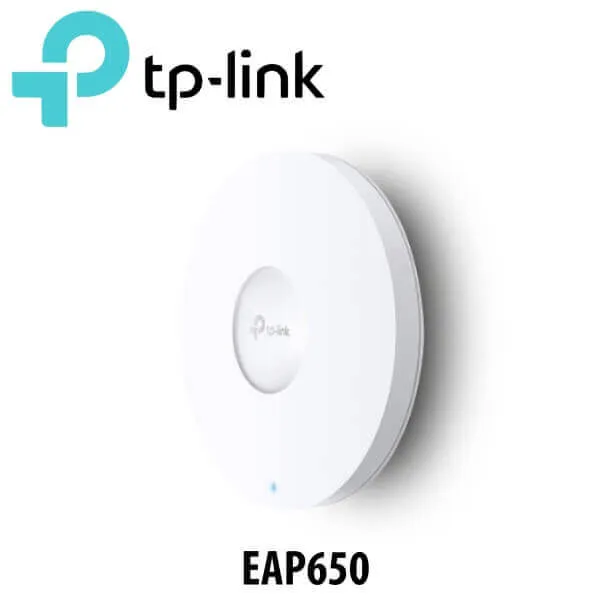

Tplink EAP650 Access Point Oman

Exceptional performance with compact design of the Tplink EAP650 Oman ensures simple Wi-Fi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café. It ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Features

  • Ultra-Fast True Wi-Fi 6 Speeds : Tplink EAP650 Oman is designed with the latest wireless Wi-Fi 6 technology featuring 1024-QAM, HE60 and Long OFDM Symbol, the EAP650 boosts dual-band Wi-Fi speeds up to 2976 Mbps.
  • Ultra-Slim Design : Tplink EAP650 Oman boasts of a compact design ensures simple installation while saving space. The elegant appearance makes EAP650 a perfect blend into any modern office, hotel, classroom, or café.
  • Integrated into Omada SDN : Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches & gateways with multiple control options offered – Omada Hardware controller, Software Controller or Cloud-based controller*(Contact TP-Link for Cloud-Based Controller Details). Standalone mode also supported.
  • Cloud Access & Omada Compatibility : Tplink EAP650 Oman is integrated with remote Cloud access and Omada app which enables centralized cloud management of the whole network from different sites – all controlled from a single interface anywhere, anytime. For devices that are compatible with SDN firmware, please visit ‘From the manufacturer – Q&A’ section or TP-Link website.
  • Advanced Wireless Tech : Supports Mesh WiFi, Seamless Roaming*(Omada Mesh & Seamless Roaming require the use of Omada SDN controllers), Band Steering, Load Balancing, Airtime Fairness and Beamforming technologies.

Technical Specs

HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply 802.3at PoE
12V DC (Power Adapter included)
(EU Version : 12 V / 1.0 A DC. US Version : 12 V / 1.5 A DC).
Power Consumption EU :

  • 13.5 W
  • US : 14.7 W
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni

  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 5 dBi

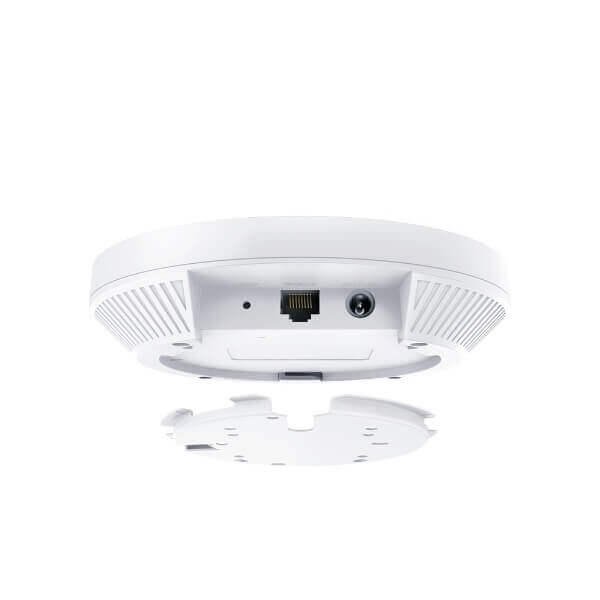

Mounting
  • Ceiling /Wall Mounting (Kits included)
  • Junction Box Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz

  • : Up to 2402 Mbps
  • 2.4 GHz : Up to 574 Mbps
Wireless Functions
  • 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • HE160 (160 MHz Bandwidth)
  • Seamless Roaming
  • Omada Mesh
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power CE :

  • <20 dBm(2.4 GHz, EIRP)
  • <23 dBm(5 GHz, Band1 & Band2, EIRP)
  • <30 dBm(5 GHz, Band3, EIRP)FCC :
  • <25 dBm (2.4 GHz)
  • <25 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • EAP650
  • Power Adapter
  • Ceiling/Wall Mounting Kits
  • Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
