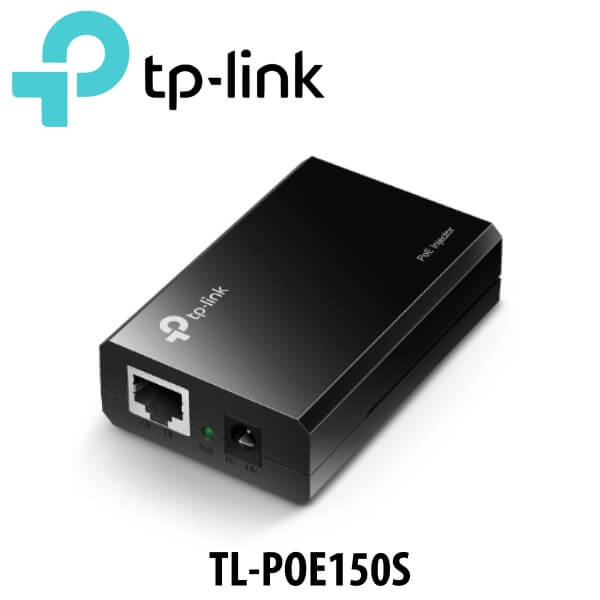

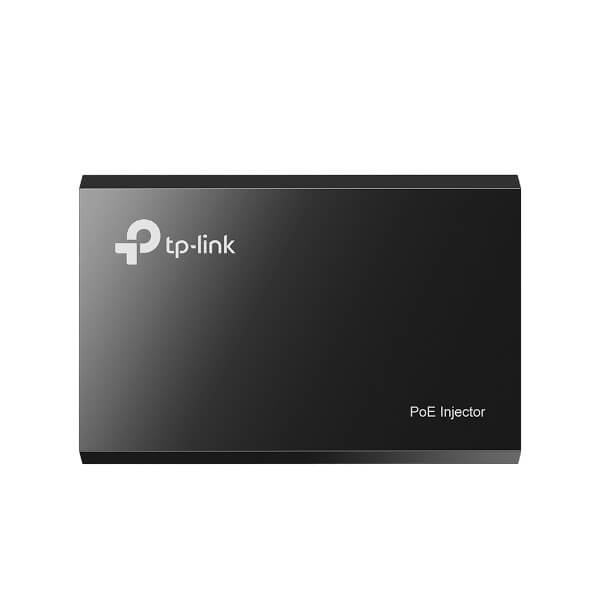

Tplink TL-POE150S PoE Injector Oman

The Tplink TL-POE150S Oman Power Over Ethernet Injector from TP-Link allows you to expand your Internet connection to areas previously out of reach of existing networks. With the TL-POE150S you can easily plug in your existing non-PoE router or switch into the adapter. Once plugged in, you can then plug in your PoE compatible device directly into the adapter via an Ethernet cable to take advantage of not only the data connection, but the power the TL-POE150S provides.

The Tplink TL-POE150S Oman not only provides power to compatible PoE devices, it supports power classification, it is incredibly safe with short circuit protection, and the advanced auto-sensing algorithm provides PoE through 802.3af compliance. With power classification support you the Tplink TL-POE150S Oman can auto determine the necessary power requirements for the existing connection. The short circuit protection makes this one of the safest PoE injectors available. The integrated auto sensing algorithm makes this device compliant with 802.3af powered devices allowing for seamless integration into your existing network configuration.

Features

Power Over Ethernet

PoE or Power Over Ethernet describes a system to pass electrical power safely along with data, on Ethernet cabling. This Tplink TL-POE150S Oman power over Ethernet injector makes it possible to turn a standard switch or router into a PoE compatible device effectively providing a power source through existing Ethernet cabling.

PoE Compatibility

The Tplink TL-POE150S Oman PoE Adapter can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) to expand your network to where there are no power lines or outlets, where you wish to fix devices like Wireless Access Points, IP Cameras, or IP Phones, etc.

Plug & Play Installation

Configuration of the Tplink TL-POE150S Oman is simple. Utilize the included power adapter to plug the device into an existing outlet. Once plugged in, utilize the LAN In port to plug in your non-PoE router or switch. Then plug your Wireless Access Point, IP Camera, or IP Phone, etc. into the TL-POE150S to take full advantage of PoE capabilities.

Technical Specs

Type	Injector
General
Connectors	1 x RJ45 Gigabit Ethernet (Input) 1 x DC Barrel (Input) 1 x RJ45 Gigabit Ethernet PoE (Output)
Supported IEEE Standards	802.3, 802.3af, 802.3u
Electrical
DC Input Power	VDC at 0.35 A
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	10 to 90%
Storage Temperature	-40 to 158°F / -40 to 70°C
Storage Humidity	5 to 90%
Certifications	CE, FCC
Physical
Maximum Operating Distance	328.1′ / 100 m
LED Indicators	Yes
Dimensions	3.2 x 2.0 x 0.9″ / 82.0 x 52.0 x 24.0 mm
Packaging Info
Package Weight	0.73 lb
Box Dimensions (LxWxH)	7.85 x 6.7 x 2.55″
