Tplink TL-SF1006P Oman



Tplink TL-SF1006P Oman

Tplink TL-SF1006P is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power.

Description

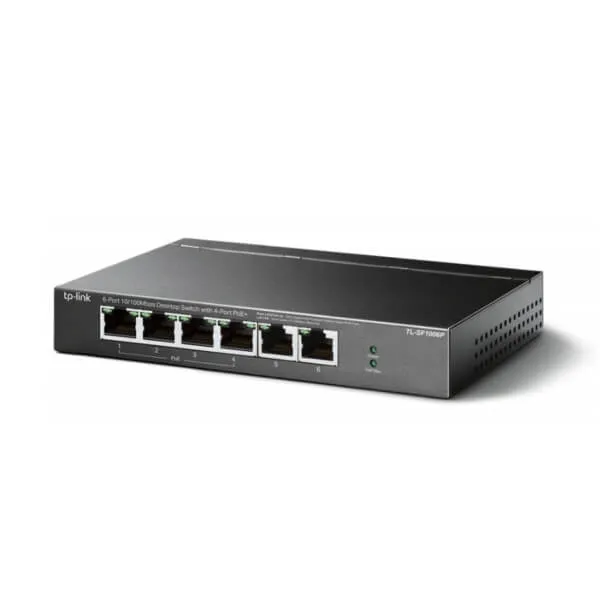

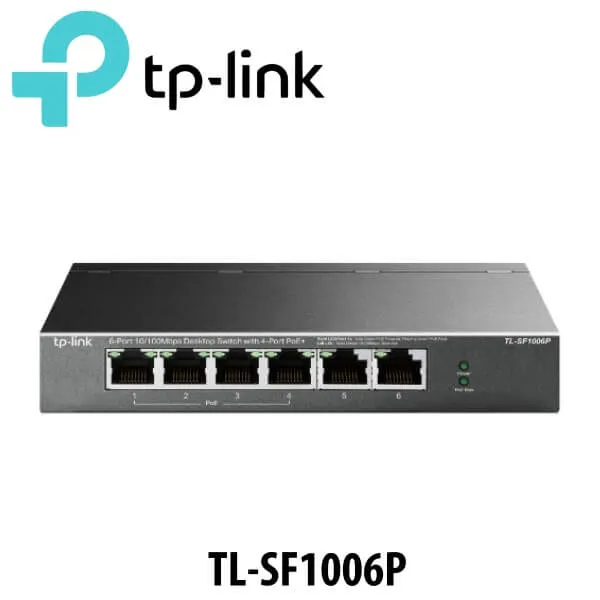

Tplink TL-SF1006P Network Switch Oman

The Tplink TL-SF1006P Oman is a Professional High-Power Switch with 4 PoE+ Ports. It comes with 6 x 10/100 Mbps RJ45 ports and 4 x PoE+ ports to transfer data and power on individual cables. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). It supports PoE Transmission for Surveillance up to 250 m. It is in compliance with the 802.3af/at PoE standard and supports up to 30 W on each PoE port. Tplink TL-SF1006P Oman is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. It comes in a durable metal casing and ensures a long product life.

Quick Features

  • 6× 10/100 Mbps RJ45 ports
  • 4× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Up to 250m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 67 W for all PoE ports*
  • Plug and play with no configuration required

Technical Specs

HARDWARE FEATURES
Interface
  • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output : 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.8928 Mpps
PoE Ports (RJ45)
  • Standard : 802.3 af/at compliant
  • PoE Ports : Ports 1–4
  • Power Supply : 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.2 Gbps
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption
  • 1.9 W (220 V / 50 Hz, no PD connected)
  • 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation
  • 6.48 BTU/h(no PD connected)
  • 252.34 BTU/h(with 67 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents
  • TL-SF1006P
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
