Description

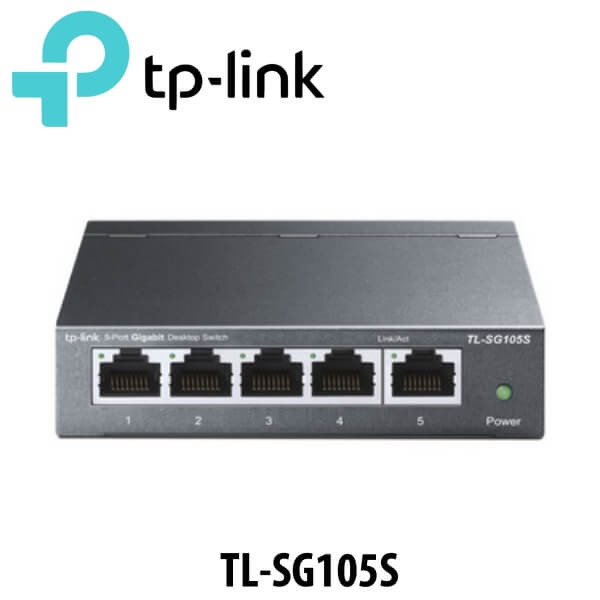

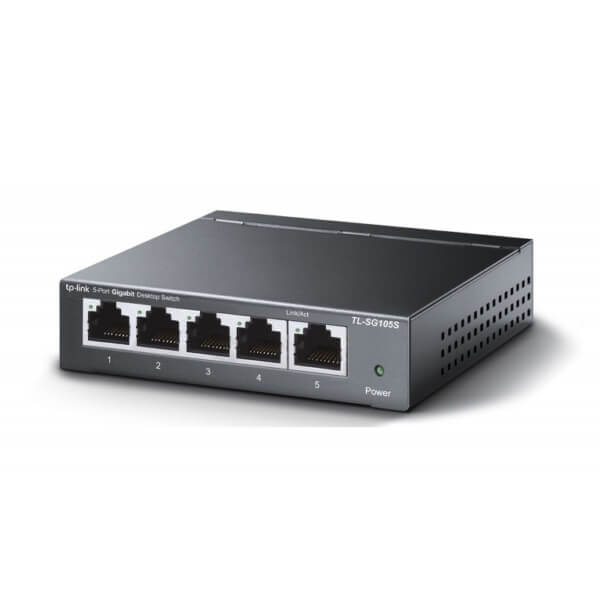

Tplink TL-SG105S Network Switch Oman
The Tplink TL-SG105S Oman 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.
Features
Gigabit Switch
Featured with 5 10/100/1000Mbps ports, Tplink TL-SG105S Oman greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this Tplink TL-SG105S Oman gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
Technical Details
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| Power Consumption | Maximum : 2.3W (220V/50Hz) |

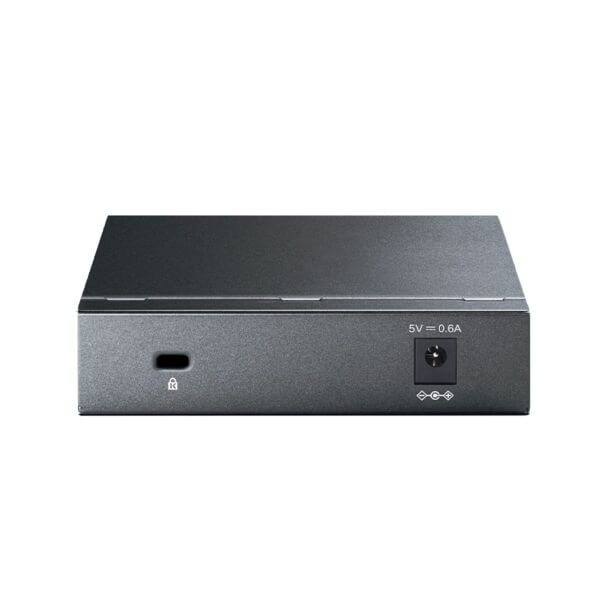

| External Power Supply | External Power Adapter (Output : 5VDC / 0.6A) |
| LED Indicator |
|
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm) |
| Max Heat Dissipation | 7.83 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 7.4Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1Mb |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transfer Method | Store and Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
|
| Environment |
|
