Description

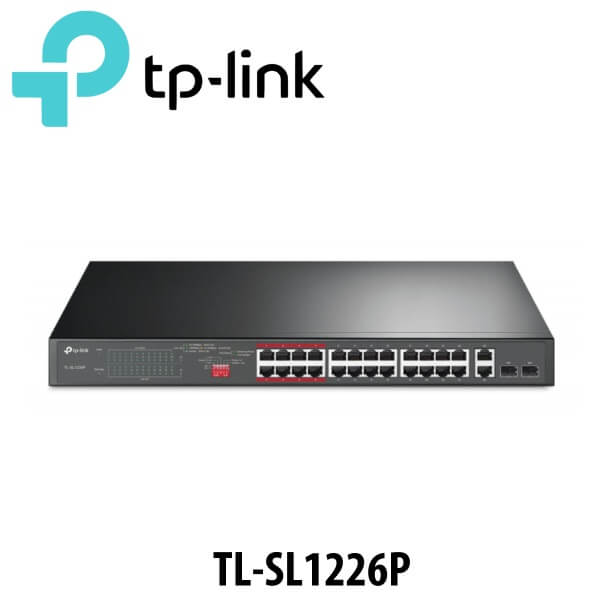

Tplink TL-SL1226P Network Switch Oman

Expand your network device capacity with the Tplink TL-SL1226P Oman 24-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch from TP-Link. Featuring 24 10/100 Mb/s PoE+ compliant 30W ports with a 250W power budget, this unmanaged switch allows you to operate compatible devices such as IP cameras, IP phones, access points, and more. This device has an 8.8 Gb/s switching capacity and a 6.54 Mbps forwarding rate with a plug-and-play desktop or rack-mountable design that operates without requiring any additional hardware or software. Adjusting its DIP switches puts the ports into extend mode, which increases the PoE range from 328′ with a 100 Mb/s data throughput to up to 820.21′ at 10 Mb/s, making it ideal for long-range camera installations. Ports 1 through 8 can be set to Priority Mode for enhanced video quality and all the ports can be put in Isolation Mode for increased security. There are also two Gigabit Ethernet ports to connect compatible devices such as network storage and two combo Gigabit SFP slots for fiber lines.

Features

Power Your Network Devices

The Tplink TL-SL1226P Oman includes 24 10/100 Mb/s PoE+ compliant ports that support 30W per port with a total budget of 250W to operate surveillance, access points, IP phones, and more.

Intelligent Power Management

This plug-and-play switch features Intelligent Power Management that automatically detects your power requirements and turns off power to lower priority ports when the total consumption exceeds its 250W capacity. This protects the switch from power overload and helps prevent connected devices from being damaged while high priority devices remain functional.

Extend Mode

Adjust the DIP switches to put the ports into extend mode, which increases the PoE range from 328′ with a 100 Mb/s data throughput to up to 820.21′ at 10 Mb/s.

Priority Video Quality

Switching ports 1 to 8 to Priority Mode assigns them to a higher priority to enhance the quality of your video surveillance feeds.

Port Separation

Configuring the ports to Isolation Mode divides the traffic to help protect against snooping and tampering. It enables the switch to isolate broadcast storm, improving the LAN security and data transmissions.

Expansion

The Tplink TL-SL1226P Oman has two Gigabit Ethernet ports alongside two Gigabit combo SFP slots for compatible devices.

Staying Cool

Dual fans and a durable metal casing help the Tplink TL-SL1226P Oman operate at optimal temperatures.

Specifications

Interfaces
Ports	24 x 10/100 Mb/s Ethernet (RJ45) PoE+ 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP)
Protocols
Supported Protocols	Auto-MDIX/MDI
Transmission Method	Store-and-Forward
Jumbo Frames Support	10 Bytes
MAC Address Table Size	8K
Security
Security Features	Storm Control
Standards
Supported IEEE Standards	802.3af, 802.3at
Performance
Forwarding Rate	6.54 Mpps
Switching Bandwidth	8.8 Gb/s
Packet Buffer	4.1 Mb
Electrical
Power Draw	294.00 W (Max)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
PoE Power Budget	250 W
PoE per Port	30 W
Environmental
Operating Temperature	32 to 122°F / 0 to 50°C
Operating Humidity	10 to 90%
Storage Temperature	-40 to 158°F / -40 to 70°C
Storage Humidity	5 to 90%
General
Cooling System	Fan
Material of Construction	Metal
Rack Form Factor	1 RU
Dimensions	17.3 x 7.1 x 1.7″ / 440 x 180 x 44 mm
Packaging Info
Package Weight	6.44 lb
Box Dimensions (LxWxH)	20.9 x 9.9 x 3.3″
