Tplink Archer-AX55 Oman



Tplink Archer-AX55 Oman

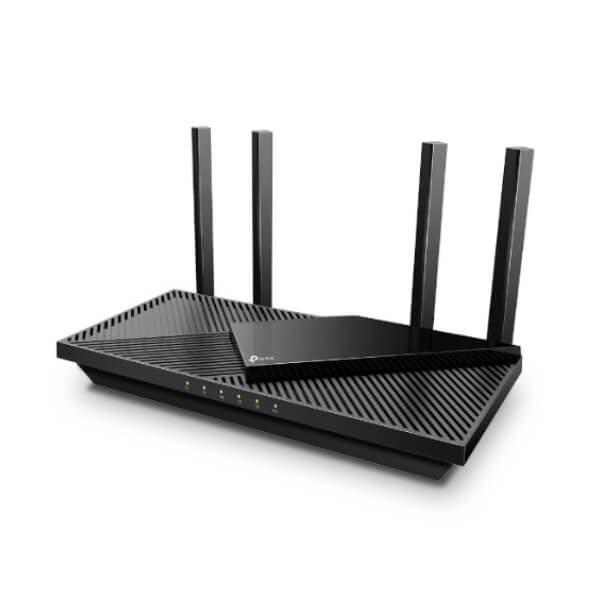

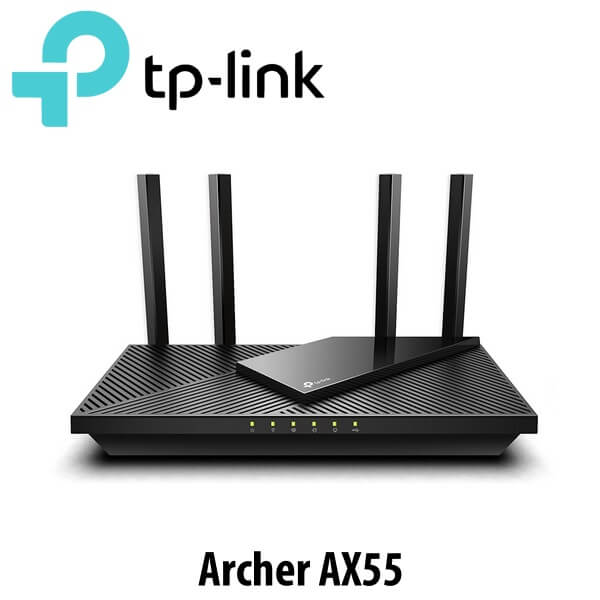

The Tplink Archer-AX55 Oman is built to offer you a smooth and fast connectivity. It is an AX3000 dual-band Wi-Fi 6 (802.11ax) router that offers speeds of up to 3000 Mbps at 2.4GHz and 5GHz frequencies.

Description

Tplink Archer-AX55 Wi-Fi Router Oman

The Tplink Archer-AX55 Oman is built to offer you a smooth and fast connectivity. It is an AX3000 dual-band Wi-Fi 6 (802.11ax) router that offers speeds of up to 3000 Mbps at 2.4GHz and 5GHz frequencies. It is integrated with OFDMA technology that optimizes speed for all connected devices. It is compatible with Amazon Alexa via voice commands for all your smart home duties.

Features

  • The Tplink Archer-AX55 Oman is a Wi-Fi 6 (802.11ax) -enabled router with speeds up to 3000 Mbps that ensures smooth and fast connectivity for all your devices
  • Dual-band network includes 2.4GHz (574Mb/s) and 5GHz (2,402Mb/s) frequencies that offer fast, efficient speeds for streaming, data transfers, and seamless gaming
  • 10/100/1000 ethernet port, gigabit WAN port, and 4 gigabit LAN ports offer blazing-fast wired connectivity
  • Four external antennae with Beamforming technology extend the range of your Wi-Fi, providing consistent coverage and reducing dead zones
  • OFDMA and MU-MIMO technologies let you enjoy simultaneous data transfers to an array of devices without reducing the speed
  • Tplink Archer-AX55 Oman is compatible with Amazon Alexa via voice commands for complete control of your smart home

Technical Details

WIRELESS
Standards Wi-Fi 6

  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000

  • 5 GHz : 2402 Mbps (802.11ax, HE160)
  • 2.4 GHz : 574 Mbps (802.11ax)
WiFi Range 3 Bedroom Houses


  • 4× Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
  • High-Power FEM
    Improves transmission power to strengthen signal coverage
WiFi Capacity High


  • Dual-Band
    Allocate devices to different bands for optimal performance
  • OFDMA
    Simultaneously communicates with multiple Wi-Fi 6 clients
  • Airtime Fairness
    Improves network efficiency by limiting excessive occupation
  • DFS
    Access an extra band to reduce congestion
  • 4 Streams
    Connect your devices to more bandwidth
Working Modes
  • Router Mode
  • Access Point Mode
HARDWARE
Processor Dual-Core CPU

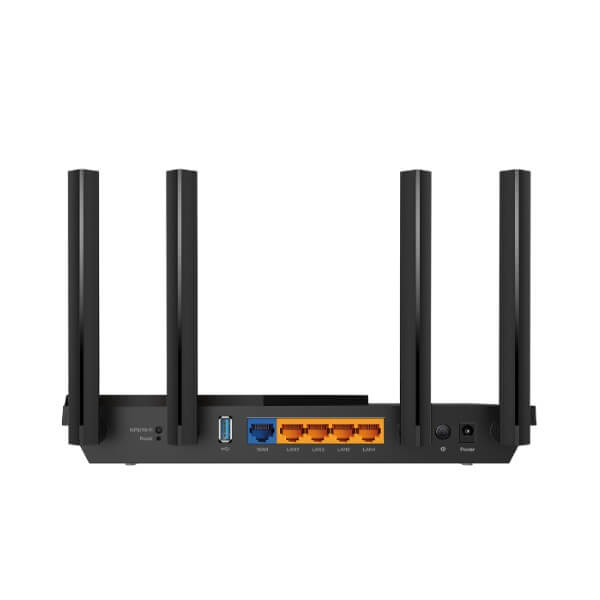

Ethernet Ports
  • 1× Gigabit WAN Port
  • 4× Gigabit LAN Ports
USB Support 1× USB 3.0 Port

Supported Partition Formats :
NTFS, exFAT, HFS+, FAT32

Supported Functions :

  • Apple Time Machine
  • FTP Server
  • Media Server
  • Samba Server
Buttons
  • Wi-Fi/WPS Button
  • Power On/Off Button
  • Reset Button
Power 12 V ⎓ 2 A
SECURITY
WiFi Encryption
  • WPA
  • WPA2
  • WPA3
  • WPA/WPA2-Enterprise (802.1x)
Network Security
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
  • HomeShield Security
  • Real-Time IoT Protection
  • Malicious Site Blocker
  • Intrusion Prevention System
  • DDoS Attack Prevention
  • Home Network Scanner
Guest Network
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network
VPN Server
  • OpenVPN
  • PPTP
SOFTWARE
Protocols
  • IPv4
  • IPv6
Service Kits HomeShield
OneMesh OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls HomeShield Parental Controls


  • Custom Profiles
  • Professional Content Filter Library
  • Family Time
  • Bedtime
  • Off Time
  • Time Rewards
  • Family Online Time Ranking
  • Pause the Internet
  • Weekly and Monthly Reports
WAN Types
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Quality of Service QoS by Device
Cloud Service
  • Auto Firmware Upgrade
  • OTA Firmware Upgrade
  • TP-Link ID
  • DDNS
NAT Forwarding
  • Virtual Servers
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
IPTV
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
DDNS
  • TP-Link
  • NO-IP
  • DynDNS
Management
  • Tether App
  • Webpage
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in
(261.1 × 134.5 × 41.0 mm)
Package Contents
  • Wi-Fi Router Archer AX55
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
TEST DATA
WiFi Transmission Power CE :

  • <20dBm(2.4GHz)
  • <23dBm(5.15GHz~5.35GHz)
  • <30dBm(5.47GHz~5.725GHz)

FCC :
<30dBm(2.4GHz & 5.15GHz~5.825GHz)

WiFi Reception Sensitivity 5GHz :

  • 11ac VHT20_MCS0 : -96dBm, 11ac VHT20_MCS8 : -75dBm
  • 11ac VHT40_MCS0 : -94dBm, 11ac VHT40_MCS9 : -70dBm
  • 11ac VHT80_MCS0 : -91dBm, 11ac VHT80_MCS9 : -67dBm
  • 11ac VHT160_MCS0 : -88dBm, 11ac VHT160_MCS9 : -63dBm
  • 11ax HE20_MCS0 : -96dBm, 11ax HE20_MCS11 : -66dBm
  • 11ax HE40_MCS0 : -93dBm, 11ax HE40_MCS11 : -63dBm
  • 11ax HE80_MCS0 : -91dBm, 11ax HE80_MCS11 : -61dBm
  • 11ax HE160_MCS0 : -87dBm, 11ax HE160_MCS11 : -58dBm

2.4GHz :

  • 11ac VHT20_MCS0 : -96dBm, 11ac VHT20_MCS8 : -74dB
  • 11ac VHT40_MCS0 : -94dBm, 11ac VHT40_MCS9 : -70dB
  • 11ax HE20_MCS0 : -96dBm, 11ax HE20_MCS11 : -66dBm
  • 11ax HE40_MCS0 : -93dBm, 11ax HE40_MCS11 : -63dBm
