Standards |
Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
|
WiFi Speeds |
AX6600
- 5 GHz : 4804 Mbps (802.11ax, HE160)
- 5 GHz : 1201 Mbps (802.11ax)
- 2.4 GHz : 574 Mbps (802.11ax)
|
WiFi Range |
4 Bedroom Houses

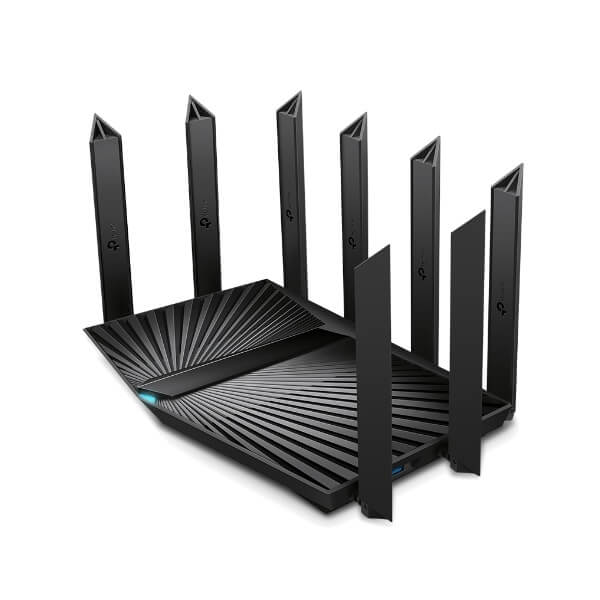

- 8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
- High-Power FEM
Improves transmission power to strengthen signal coverage
- 4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
|
WiFi Capacity |
Very High
- Tri-Band
Allocate devices to different bands for optimal performance
- 4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
- OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
- Airtime Fairness
Improves network efficiency by limiting excessive occupation
- DFS
Access an extra band to reduce congestion
- 8 Streams
Connect your devices to more bandwidth
|
Working Modes |
Router Mode
Access Point Mode |
HARDWARE |
Processor |
1.5 GHz Quad-Core CPU |

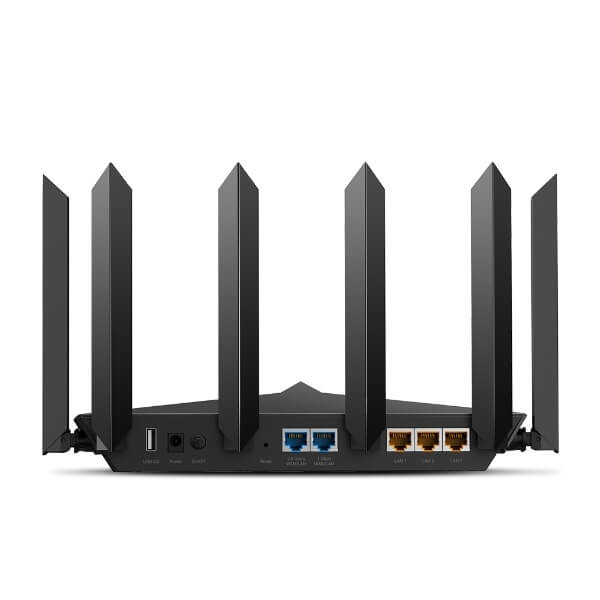

Ethernet Ports |
- 1× 2.5 Gbps WAN/LAN Port
- 1× 1 Gbps WAN/LAN Port
- 3× 1 Gbps LAN Ports
|
USB Support |
- 1× USB 3.0 Port
- 1× USB 2.0 PortSupported Partition Formats :
- NTFS, exFAT, HFS+, FAT32
- Supported Functions :
- Apple Time Machine
- FTP Server
- Media Server
- Samba Server
|
Buttons |
- Wi-Fi On/Off Button
- Power On/Off Button
- LED On/Off Button
- WPS Button
- Reset Button
|
Power |
12 V ⎓ 3.3 A |
SECURITY |
WiFi Encryption |
- WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
|
Network Security |
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
|
Guest Network |
- 1× 5 GHz-1 Guest Network
- 1× 5 GHz-2 Guest Network
- 1× 2.4 GHz Guest Network
|
VPN Server |
|
SOFTWARE |
Protocols |
|
Service Kits |
HomeShield |
OneMesh |
- OneMesh Supported
- Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
- Learn More>
- All OneMesh Products>
|
Parental Controls |
HomeShield Parental Controls
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
|
WAN Types |
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
|
Quality of Service |
QoS by Device |
Cloud Service |
- Auto Firmware Upgrade
- TP-Link ID
- DDNS
|
NAT Forwarding |
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
- Virtual Server
|
IPTV |
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
|
DHCP |
- Address Reservation
- DHCP Client List
- Server
|
DDNS |
|
Management |
|
PHYSICAL |
Dimensions (W×D×H) |
12.2 × 8.1 × 6.8 in
(311 × 207 × 174 mm) |
Package Contents |

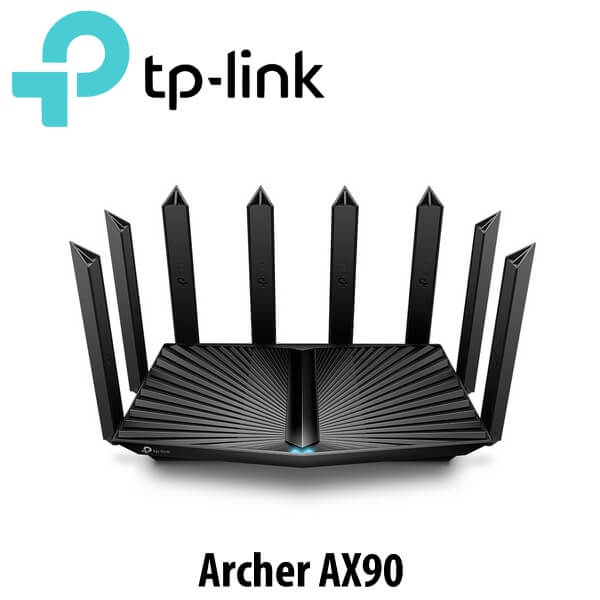

- Wi-Fi Router Archer AX90
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
|
OTHER |
System Requirements |
- Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
|
Certifications |
FCC, CE, RoHS |
Environment |
- Operating Temperature : 0℃~40℃ (32℉ ~104℉)
- Storage Temperature : -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity : 10%~90% non-condensing
- Storage Humidity : 5%~90% non-condensing
|
TEST DATA |
WiFi Transmission Power |
CE :
- <20dBm{2.4GHz}
- <23dBm{5.15GHz~5.35GHz}
- <30dBm{5.47GHz~5.725GHz}
FCC :
- <24dBm{5.47GHz~5.725GHz }
- <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
|
WiFi Reception Sensitivity |
2.4GHz :
- 11n HT20 MCS0 : -95dBm
- 11ax HE20 MCS11 : -64dBm
- 11ax HE40 MCS11 : -62dBm
5GHz-1 :
- 11ac VHT20 MCS0 : -92dBm
- 11ax HE20 MCS11 : -61dBm
- 11ax HE40 MCS11 : -58dBm
- 11ax HE80 MCS11 : -55dBm
5GHz-2 :
- 11ac VHT20 MCS0 : -95dBm
- 11ax HE20 MCS11 : -61dBm
- 11ax HE40 MCS11 : -58dBm
- 11ax HE80 MCS11 : -55dBm
- 11ax HE160 MCS11 : -53dBm
|
