Tplink TL-FC311B20 Oman



Tplink TL-FC311B20 Oman

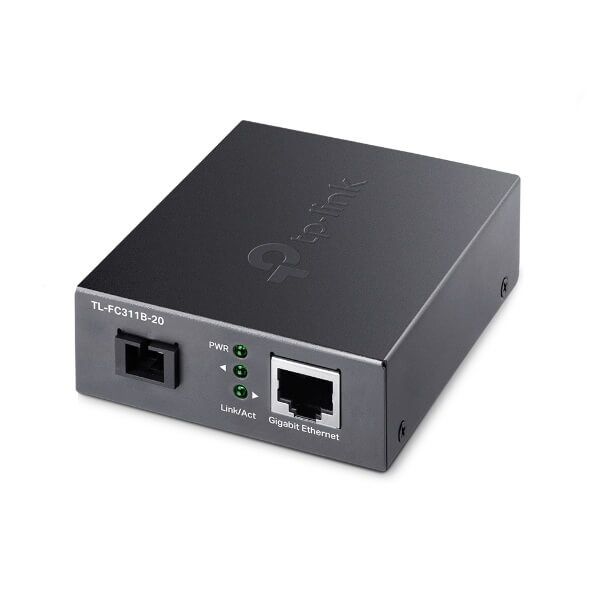

The Tplink TL-FC311B20 Oman is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals.

Category:

Description

Tplink TL-FC311B20 Gigabit Media Converter Oman

With theTplink TL-FC311B20 Oman Gigabit WDM Media Converter, you can convert between Gigabit Ethernet RJ45 electrical signals and optical signals through a Gigabit SC fiber port. Designed to support long-distance video surveillance and other data transmissions, the TL-FC311B-20 has a range of up to 12.4 miles over a 9/125µm single-mode fiber cable while using up to 328′ long Cat 5/5e Ethernet cables with the RJ45 port. The Tplink TL-FC311B20 Oman transmits at a frequency wavelength of 1310nm and receives data at 1550nm, which complements the TP-Link TL-FC311A-20 WDM Media Converter. Half- and full-duplex modes are automatically negotiated.

The Tplink TL-FC311B20 Oman is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

Quick Features

  • Ethernet 1000Base-SC, Ethernet 1000Base-T, WDM Cabling
  • Supports Gigabit Ethernet Networking
  • Data Transfer Speeds up to 1Gbps

Specifications

NETWORK
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
ENVIRONMENT
Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
HARDWARE FEATURES
Interface
  • 1× Gigabit SC Fiber Port
  • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media
  • Single-mode Fiber
  • UTP category 5, 5e cable (maximum 100m)
Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 3.7 × 2.9 × 1.1 in
(95 × 73 × 27 mm)
Wave Length
  • 1310 nm TX
  • 1550 nm RX
MEDIA CONVERTER & MODULE
Fiber Type 9/125 μm single-mode fiber
OTHERS
Package Contents
  • Media Converter TL-FC311B-20
  • Power Adapter
  • Installation Guide
