Tplink TL-SG1428PE Oman



Tplink TL-SG1428PE Oman

Tplink TL-SG1428PE Oman offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Description

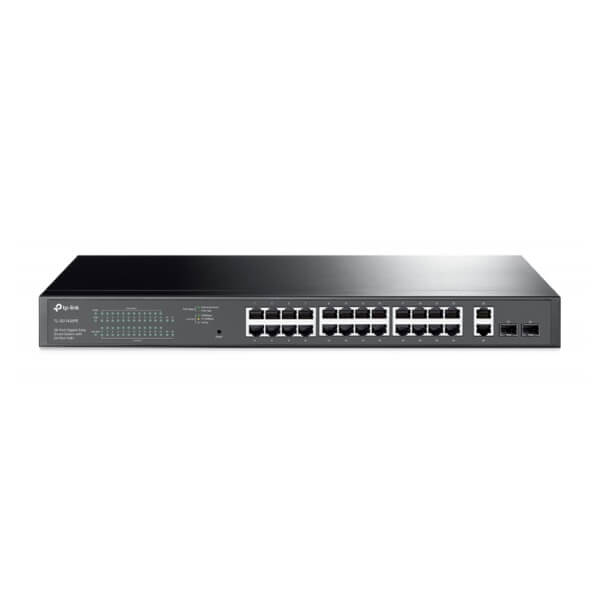

Tplink TL-SG1428PE Network Switch Oman

The Tplink TL-SG1428PE Oman is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Features

Multiple Application Scenarios
The Tplink TL-SG1428PE Oman is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video.
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.
Making Management Easy
Tplink TL-SG1428PE Oman offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design of the Tplink TL-SG1428PE Oman ensures the wide operating temperature (0–50℃) with reliability.

Technical Specifications

HARDWARE FEATURES
Standards and Protocols
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
  • IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
  • 26 10/100/1000 Mbps RJ45 Ports
  • 2 Gigabit SFP Ports
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)
  • Standard : 802.3at/802.3af compliant
  • PoE+ Ports : 24 Ports
  • Power Supply : 250 W
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max Power Consumption
  • 27 W (220/50Hz. no PD connected)
  • 304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation
  • 92.07 BTU/h (no PD connected)
  • 1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service
  • Support Port-based 802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
L2 Features
  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • PoE Auto Recovery
VLAN
  • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
Management
  • Web-Based GUI
  • Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-SG1428PE
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
Environment
  • Operating Temperature : 0°C~50°C (32°F~122°F)
  • Storage Temperature : -40°C~70°C (-40°F~158°F)
  • Operating Humidity : 10% ~ 90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
