Tplink TL-SG3210 Oman



Tplink TL-SG3210 Oman

Tplink TL-SG3210 Oman comes with 8 × 10/100/1000 Mbps RJ45 ports, together w/ 2× Gigabit SFP slots which provide high-speed and reliable connections.

Description

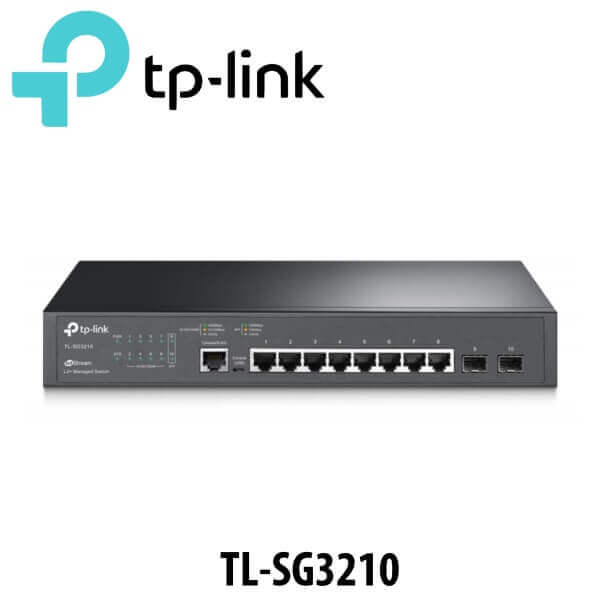

Tplink TL-SG3210 Managed Network Switch Oman

The Tplink-TL-SG3210-Oman JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots by TP-Link offers a variety of features to streamline setup, configuration, and management of your network. The JetStream Switch provides robust security features including IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defense, Storm Control, DHCP Snooping, 802.1X Authentication and Radius to give you piece of mind and keep your network secure.

Some of the Layer 2 features included in the Tplink-TL-SG3210-Oman include link aggregation, 4K VLAN, port isolation, and IMGP snooping. Link aggregation provides for a parallel connection to increase throughput beyond what a single connection can sustain, the integrated link aggregation also provides for redundancy in case one link fails. Port isolation is used to allow a direct data link layer communication between nodes providing direct communication with that node. Lastly, IGMP snooping is the process of listening to internet group management protocol (IMGP) network traffic. This allows a network switch to listen in on the IGMP conversation between hosts and routers.

Features

  • Flexible Full Gigabit 10-Port Configuration — Tplink-TL-SG3210-Oman comes with 8 × 10/100/1000 Mbps RJ45 ports, together w/ 2× Gigabit SFP slots which provide high-speed and reliable connections.
  • Integrated into Omada SDN — Omada Software Defined Networking platform integrates network devices, including switches, APs & gateways with multiple control options offered Omada Hardware controller or Software Controller. Standalone Mode also applies.
  • Cloud Access — Remote cloud access and Omada app brings centralized cloud management of the whole network at different sites-all controlled from a single interface anywhere, anytime.
  • SDN Compatibility — Make sure your devices/controllers are equipped with SDN firmware. (Or upgradable). SDN controllers work only with SDN Access Points, Switches & Gateways. Non-SDN controllers work only with non-SDN APs. Details found on TP-Link website.
  • Enhance Network Security — Advanced security features of the Tplink-TL-SG3210-Oman include 802.1Q VLAN, IP-MAC-Port binding, ACL, Port Security, DoS defend, Storm control, DHCP Snooping, 802.1X radius authentication and more.
  • L2+ Features — Tplink-TL-SG3210-Oman supports Static Routing which helps route internal traffic for more efficient use of network resources.
  • Standalone Management — Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Technical Specs

HARDWARE FEATURES
Interface
  • 8× 10/100/1000 Mbps RJ45 Ports
  • 2× Gigabit SFP Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
Fan Quantity Fanless
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 11.6×7.1×1.7 in.
(294×180×44 mm)
Mounting Rack Mountable / Desktop
Max Power Consumption 6.8 W
Max Heat Dissipation 23.3 BTU/h
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.89 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service
  • 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling
    • SP (Strict Priority)
    • WRR (Weighted Round Robin)
    • SP+WRR
  • Bandwidth Control
    • Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows
    • Mirror (to supported interface)
    • Redirect (to supported interface)
    • Rate Limit
    • QoS Remark
L2 and L2+ Features
  • Link Aggregation
    • Static link aggregation
    • 802.3ad LACP
    • Up to 8 aggregation groups and up to 8 ports per group
  • Spanning Tree Protocol
    • 802.1d STP
    • 802.1w RSTP
    • 802.1s MSTP
    • STP Security : TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
  • Loopback Detection
    • Port-based
    • VLAN based
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Mirroring
    • Port Mirroring
    • CPU Mirroring
    • One-to-One
    • Many-to-One
    • Tx/Rx/Both
L2 Multicast
  • Supports 511 (IPv4, IPv6) IGMP groups
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • Fast Leave
    • IGMP Snooping Querier
    • IGMP Authentication
  • IGMP Authentication
  • MVR
  • MLD Snooping
    • MLD v1/v2 Snooping
    • Fast Leave
    • MLD Snooping Querier
    • Static Group Config
    • Limited IP Multicast
  • Multicast Filtering : 256 profiles and 16 entries per profile
VLAN
  • VLAN Group
    • Max 4K VLAN Groups
  • 802.1q Tagged VLAN
  • MAC VLAN : 12 Entries
  • Protocol VLAN : Protocol Template 16, Protocol VLAN 16
  • GVRP
  • VLAN VPN (QinQ)
    • Port-Based QinQ
    • Selective QinQ
  • Voice VLAN
Access Control List
  • Time-based ACL
  • MAC ACL
    • Source MAC
    • Destination MAC
    • VLAN ID
    • User Priority
    • Ether Type
  • IP ACL
    • Source IP
    • Destination IP
    • Fragment
    • IP Protocol
    • TCP Flag
    • TCP/UDP Port
    • DSCP/IP TOS
    • User Priority
  • Combined ACL
  • Packet Content ACL
  • IPv6 ACL
  • Policy
    • Mirroring
    • Redirect
    • Rate Limit
    • QoS Remark
  • ACL apply to Port/VLAN
Security
  • IP-MAC-Port Binding
    • DHCP Snooping
    • ARP Inspection
    • IPv4 Source Guard
  • IPv6-MAC-Port Binding
    • DHCPv6 Snooping
    • ND Detection
    • IPv6 Source Guard
  • DoS Defend
  • Static/Dynamic Port Security
  • Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
    • kbps/ratio/pps control mode
  • IP/Port/MAC based access control
  • 802.1X
    • Port based authentication
    • Mac based authentication
    • VLAN Assignment
    • MAB
    • Guest VLAN
    • Support Radius authentication and accountability
  • AAA (including TACACS+)
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6
  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACL
  • IPv6 Interface
  • Static IPv6 Routing
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications
    • DHCPv6 Client
    • Ping6
    • Tracert6
    • Telnet (v6)
    • IPv6 SNMP
    • IPv6 SSH
    • IPv6 SSL
    • Http/Https
    • IPv6 TFTP
L3 Features
  • 16 IPv4/IPv6 Interfaces
  • Static Routing
    • 48 static routes
  • Static ARP
  • 316 ARP Entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay
  • DHCP L2 Relay
Management
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3
    • Trap/Inform
    • RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log
Advanced Features
  • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  • ZTP (Zero-Touch Provisioning)*
MIBs
  • MIB II (RFC1213)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIBs
  • RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App
  • Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
  • OC300
  • OC200
  • Omada Software Controller
Centralized Management
  • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
  • Omada Hardware Controller OC300
  • Omada Hardware Controller OC200
  • Omada Software Controller
Cloud Access
  • Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
  • OC300
  • OC200
  • Omada Software Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4)
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3
    • Trap/Inform
    • RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-SG3210 Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
  • Operating Temperature : 0–45 ℃ (32–113 ℉);
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
