Description

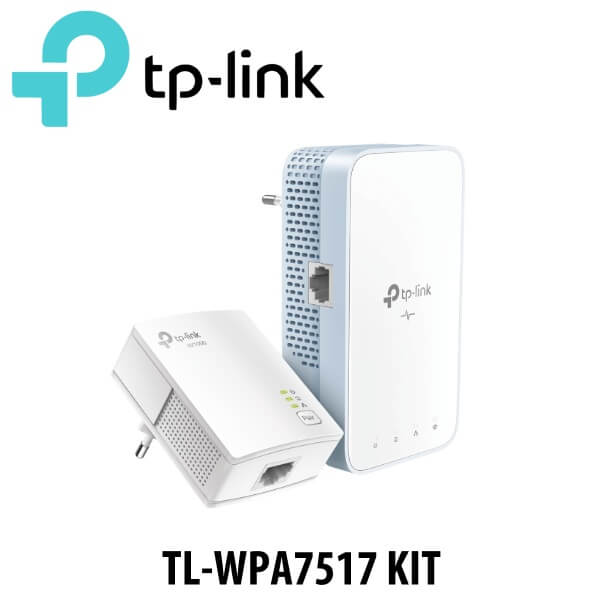

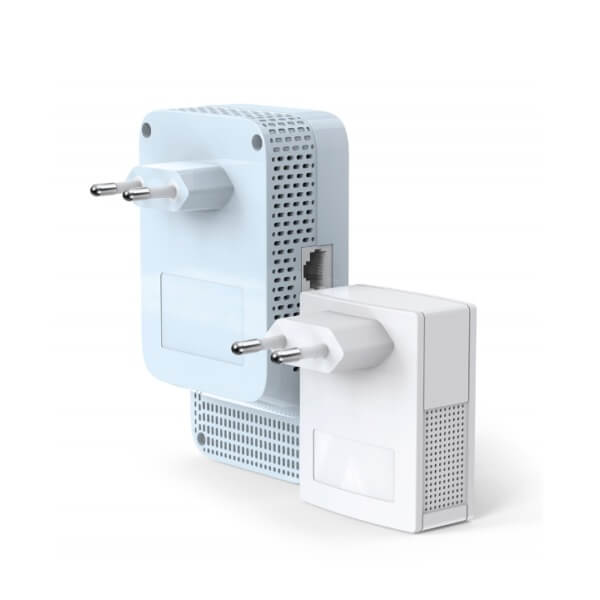

Tplink TL-WPA7517 KIT Powerline Adapter Oman

Tplink TL-WPA7517 KIT Oman transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet. Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

Features

Homeplug AV2 Standard Compliant Powerline Adapter – Tplink TL-WPA7517 KIT Oman provides up to 1000Mbps Ethernet over power and up to dual band Wi-Fi. Ideal to be an Ethernet extender which can easily go over walls
One-Touch Wi-Fi Configuration – One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire powerline network
Gigabit Ethernet Port – Provide secure wired network to desktop, smart TVs, or game consoles
Plug, Pair and Play – Quickly set up a secured powerline network with no configuration required to enjoy fast, seamless wired/ wireless connection in minutes
OneMesh Compatible – Tplink TL-WPA7517 KIT Oman works with TP-Link OneMesh router to form a unified mesh network for seamless streaming while moving around your home
Please note that powerline adapters must be deployed in sets of two or more
Kindly Reminder : Powerline Adapters must be on the same electrical circuit for connectivity. Requires direct outlet plug in. Does not work with surge protectors. Appliances and devices running on the same circuit may affect powerline performance.
Tplink TL-WPA7517 KIT Oman is compatible with all TP-Link AV2000, AV1300, AV1200, Av1000, AV600, AV500, AV200 Powerline adapter

Technical Specs

Hardware Features

Plug Type : EU
Standards and Protocols : HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
Interface :
- TL-WPA7517 : 1 Ethernet Port
- TL-PA7017 : 1 Ethernet Port
Button : Pair, Reset, Wi-Fi Clone, LED On/Off
Power Consumption :
- TL-WPA7517 : Maximum : 11W, Typical : 6.5W
- TL-PA7017 : Maximum : 2.9W, Typical : 2.6W
LED Indicator : Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
Dimensions ( W x D x H ) :
- TL-WPA7517 : 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
- TL-PA7017 : 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
Range : Up to 300 meters/1000 feet over existing electrical wiring
Compatibility : Compatible with all HomePlug AV & AV2 standard powerline adapters
Transmission Speeds : Powerline : Up to 1000 Mbps
Ethernet : 10/100/1000 Mbps

Wireless Features :

Wireless Security : WPA-PSK / WPA2-PSK, WEP Encrptions

Software Features

Management : tpPLC : Scan the QR code to download TP-Link tpPLC App. Or download new tpPLC Utility on PCs : www.tp-link.com.
Modulation Technology : OFDM (PLC)
Encryption : Powerline : 128-bit AES Encryption
Wireless : WPA-PSK / WPA2-PSK, WEP Encryptions
